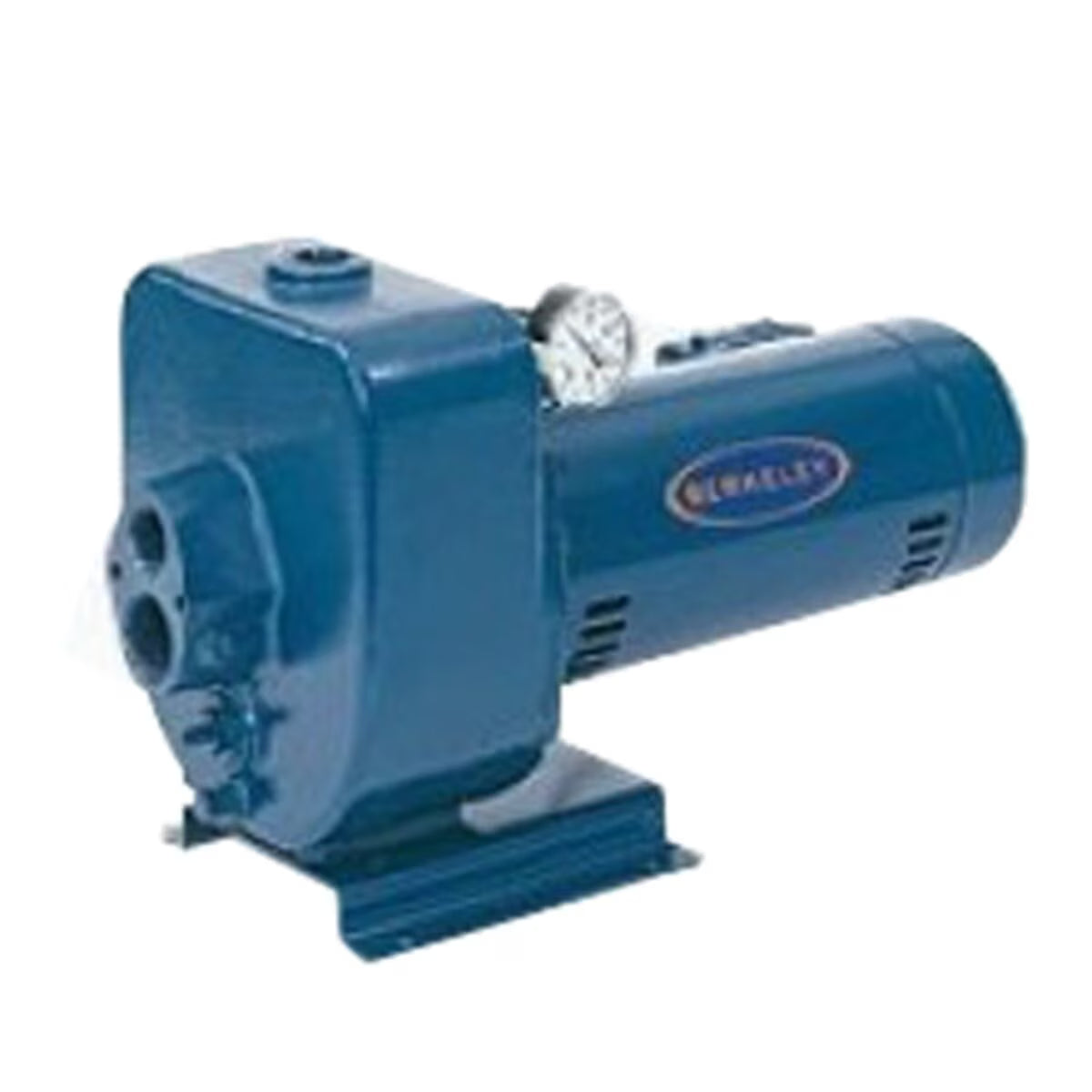

Berkeley LT2 Deep Well Multi-Stage Jet Pump 1 HP 115/230v 1 Phase Cast Iron 10LT2

Berkeley LT2 Deep Well Multi-Stage Jet Pump 1 HP 115/230v 1 Phase Cast Iron 10LT2

 10LT2
Regular price $1,798.99
Regular price Sale price $1,798.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Flow Rate
10.6 GPM
Operating Pressure
30 psi - 50 psi
Vertical Lift
25 ft.
Includes
Pressure Regulator, Mechanical Shaft Seal, Motor Windings
Working Temperature
140 F
Amperage Rating
19.2 Amps - 9.6 Amps

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

LT2 Series Multi-Stage jet pumps are the highest performing pumps available in the category. The LT2 Series Convertible Jets utilize the Berkeley built-in regulator, offering easier priming and better range of performance from a complete line of Shallow Well, 4 in. Double Pipe, 2 in., and 3 in. Single Pipe Jet Packages. Pump may also be operated as a self-priming centrifugal (to 25 ft) to provide a wide range of high pressure applications.

View full details

Specifications

Voltage Rating 115v - 230v
Phase Single-Phase
HP Rating 1 hp
Series LT2 Series
Material Composite
Includes Pressure Regulator, Mechanical Shaft Seal, Motor Windings
Item Pump
Type Jet
Number of Stages 1
Weight 80 lb.
Dimensions 17-3/4 in. x 9-1/2 in. x 5-1/8 in.
Power Source Electric
Amperage Rating 19.2 Amps - 9.6 Amps
Speed 3,450 RPM
Flow Rate 10.6 GPM
Inlet Connection Npt
Operating Pressure 30 psi - 50 psi
Inlet Size 1-1/4 in.
Outlet Size 1 in.
Outlet Connection Npt
Vertical Lift 25 ft.
Working Temperature 140 F
Regulated No
Brand Name Berkeley
