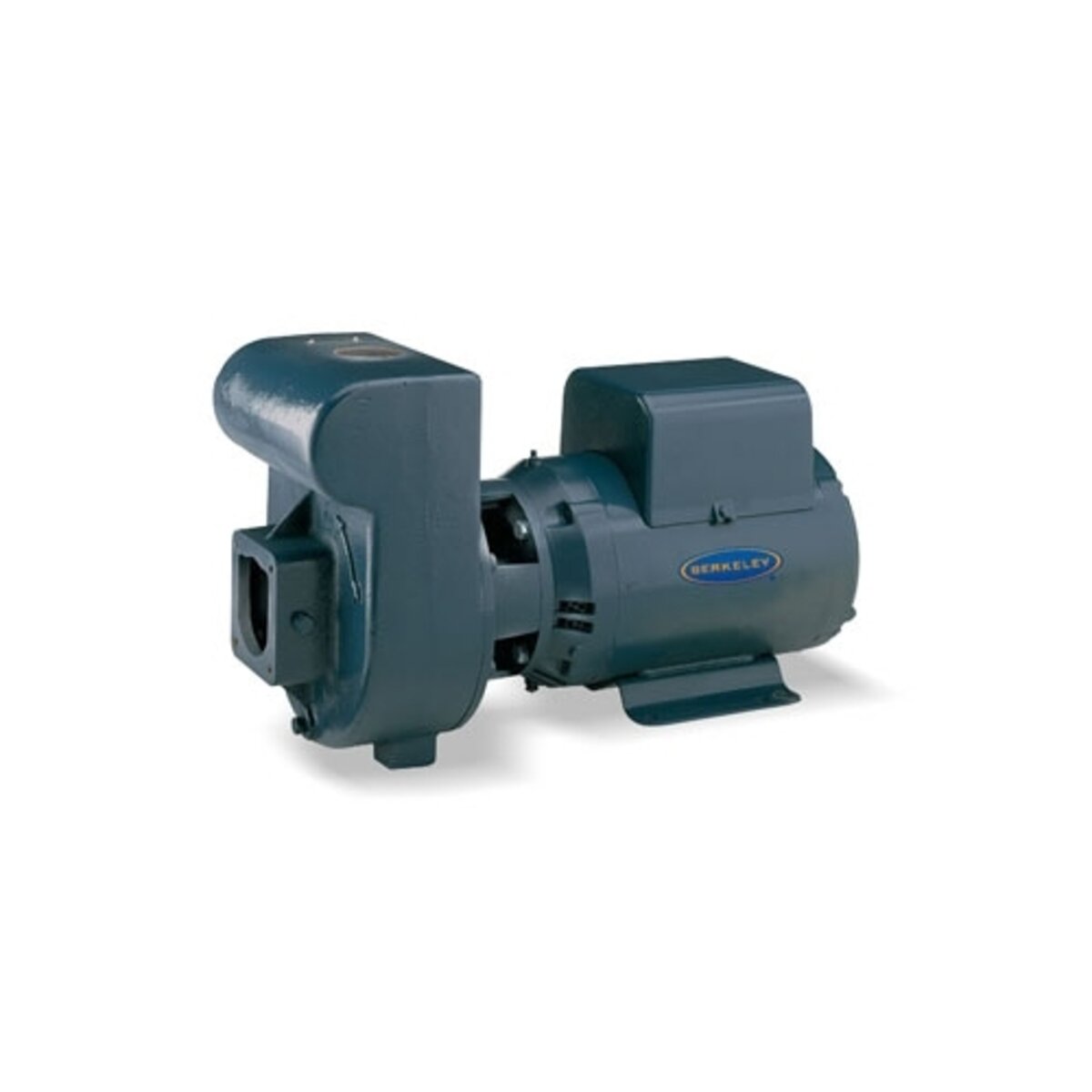

Berkeley LTH High Head Centrifugal Pump Self-Priming 5 HP 230v 1 Phase Cast Iron S40097

Berkeley LTH High Head Centrifugal Pump Self-Priming 5 HP 230v 1 Phase Cast Iron S40097

 S40097
Regular price $2,359.99
Regular price Sale price $2,359.99
Sale Sold out
Shipping calculated at checkout.

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

The LTH and LTM series 3 and 5 HP centrifugal pumps are some of the fastest priming pumps on the market, available in both high head (LTH) or medium head (LTM) series. They feature leak-proof mechanical seals, easy service design, heavy-duty motors, and rugged construction.

View full details

Specifications

Voltage Rating 230V
Phase 1 Phase
HP Rating 5 HP
Series LTH Series
Material Cast Iron
Includes Self-Priming
Item Pump
Type Centrifugal
Number of Stages 1
Weight 184 lb.
Dimensions 21-3/4 in. x 9-1/2 in. x 13-1/4 in.
Power Source Electric
Amperage Rating 25 Amps
Speed 3,450 RPM
Flow Rate 160 GPM
Wire Count 3
Inlet Connection Flange
Check Valve Yes
Operating Pressure 100 PSI
Inlet Size 2-1/2 in.
Outlet Size 2 in.
Outlet Connection FNPT
Cord Length 6 ft.
Vertical Lift 5 ft.
Pump Switch No Switch
Working Temperature 104 F
Regulated No
Brand Name Berkeley
