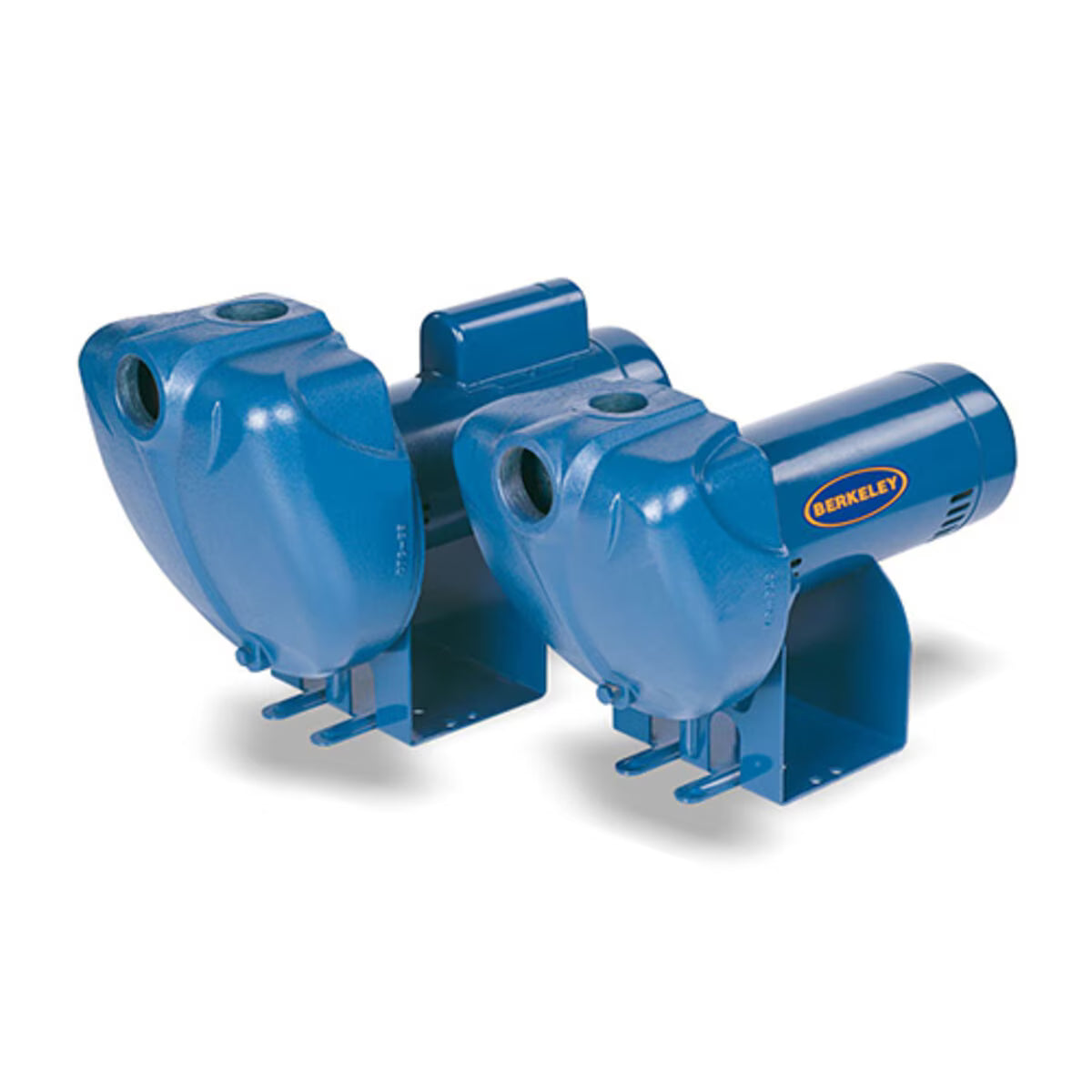

Berkeley LTHH Centrifugal Pump Self-Priming 1-1/2 HP 115/230V 1 Phase Cast Iron 15LTHH

Berkeley LTHH Centrifugal Pump Self-Priming 1-1/2 HP 115/230V 1 Phase Cast Iron 15LTHH

 15LTHH
Regular price $615.99
Regular price Sale price $615.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Flow Rate
70 GPM
Operating Pressure
100 PSI
Inlet Size
2 in.
Vertical Lift
25 ft.
Amperage Rating
15 Amps
Working Temperature
100 F

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

The LTHH Series of cast iron sprinkler pumps offer superior un-matched performance. Available in 1 HP through 2-1/2 HP models. These pumps offer single body fill priming to 25 foot lifts, in less than 5 minutes. LTHH models exceed the strict safety requirements of Underwriters Laboratory UL778, and CSA, required by many state and local codes. The LTHH models are completely interchangeable with the original Berkeley LTH Series models, saving costly plumbing changes.

View full details

Specifications

Voltage Rating 230v
Phase Single Phase
HP Rating 15 HP
Series LTHH Series
Material Cast Iron
Includes Pump, Manual, Warranty Card
Item Pump
Type Centrifugal
Number of Stages 1
Weight 58 lb.
Dimensions 12 in. x 18 in. x 14 in.
Power Source Electric
Amperage Rating 15 Amps
Speed 3,600 RPM
Flow Rate 70 GPM
Wire Count 3
Inlet Connection FNPT
Check Valve No
Operating Pressure 100 PSI
Inlet Size 2 in.
Outlet Size 1-1/2 in.
Outlet Connection FNPT
Cord Length 6 ft.
Vertical Lift 25 ft.
Pump Switch No Switch
Working Temperature 100 F
Regulated No
Brand Name Berkeley
