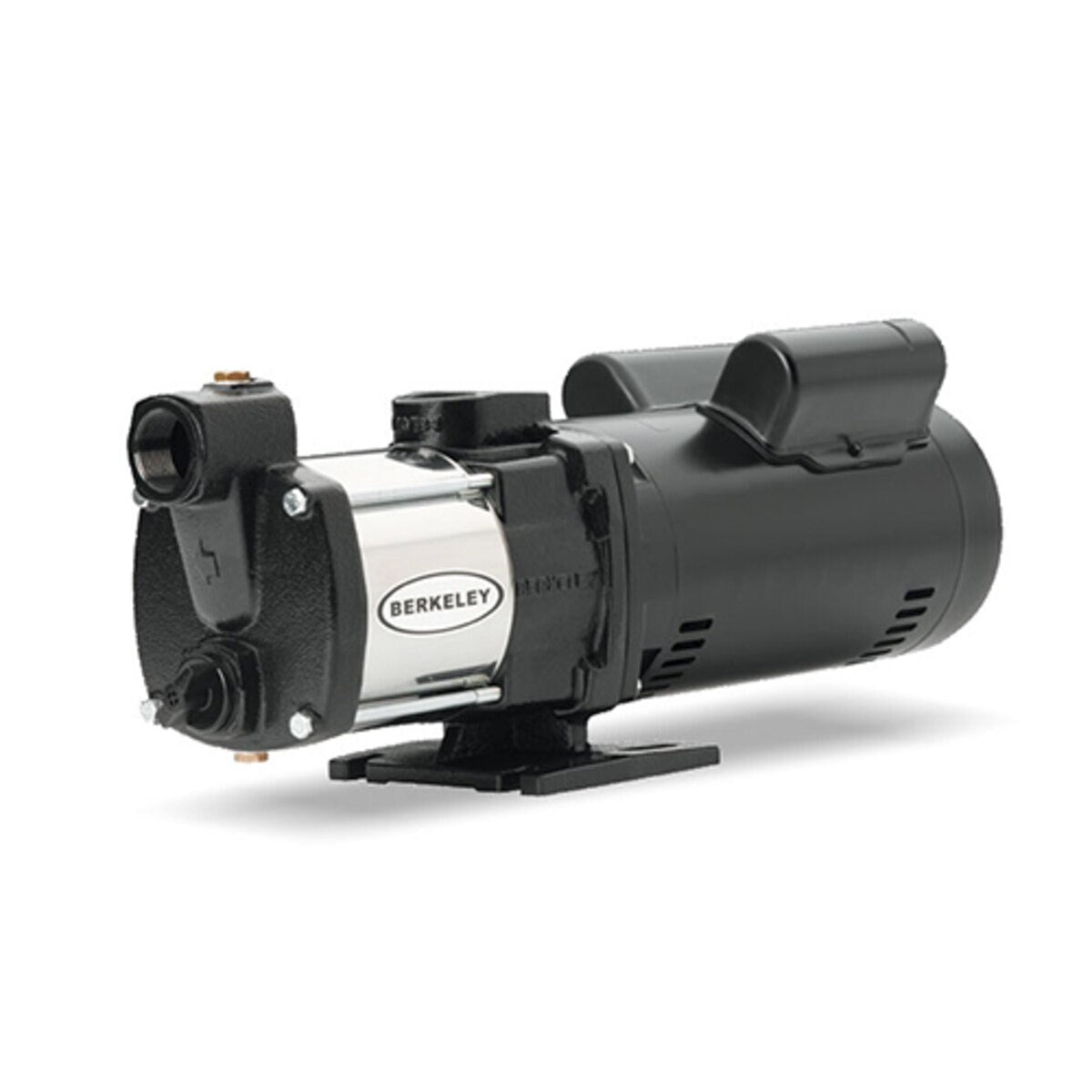

Berkeley SSHM-2 3 Stage Horizontal Multi-Stage Pump Self-Priming 2 HP 230V 1 Phase Cast Iron B86073

Berkeley SSHM-2 3 Stage Horizontal Multi-Stage Pump Self-Priming 2 HP 230V 1 Phase Cast Iron B86073

 B86073
Regular price $1,849.99
Regular price Sale price $1,849.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Flow Rate
20 GPM
Operating Pressure
130 PSI
Inlet/Outlet Size
1-1/2 in. x 1-1/4 in.
Weight
95 lb.
Amperage Rating
10 Amps
Vertical Lift
15 ft.

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

The Berkeley SSHM-2 Self-Priming Pump is the first to deliver high-pressure performance without priming problems and delays. Designed for minimal electrical consumption and quiet operation, the SSHM-2 takes less time and trouble to produce the water volume and high-pressure needed to meet demanding applications such as: Irrigation Systems, Water Supply Systems, Shower & Washing Systems, Dewatering, Heating & Air Conditioning Systems, Fountains.

View full details

Specifications

Voltage Rating 230V
Phase 1 Phase
HP Rating 2 HP
Series SSHM-2 Series
Material Cast Iron & Stainless Steel
Includes Self-Priming
Item Pump
Type Centrifugal
Number of Stages 3 Stages
Weight 95 lb.
Dimensions 24-7/8 in. x 6-1/5 in. x 7-5/6 in.
Power Source Electric
Amperage Rating 10 Amps
Speed 3, 450 RPM
Flow Rate 20 GPM
Wire Count 3
Inlet Connection 1-1/2 in. Npt
Check Valve Yes
Operating Pressure 130 PSI
Inlet Size 1-1/2 in.
Outlet Size 1-1/4 in.
Outlet Connection 1-1/4 in. Npt
Cord Length 6 ft.
Vertical Lift 15 ft.
Pump Switch No Switch
Working Temperature 120 F
Regulated No
Brand Name Berkeley
