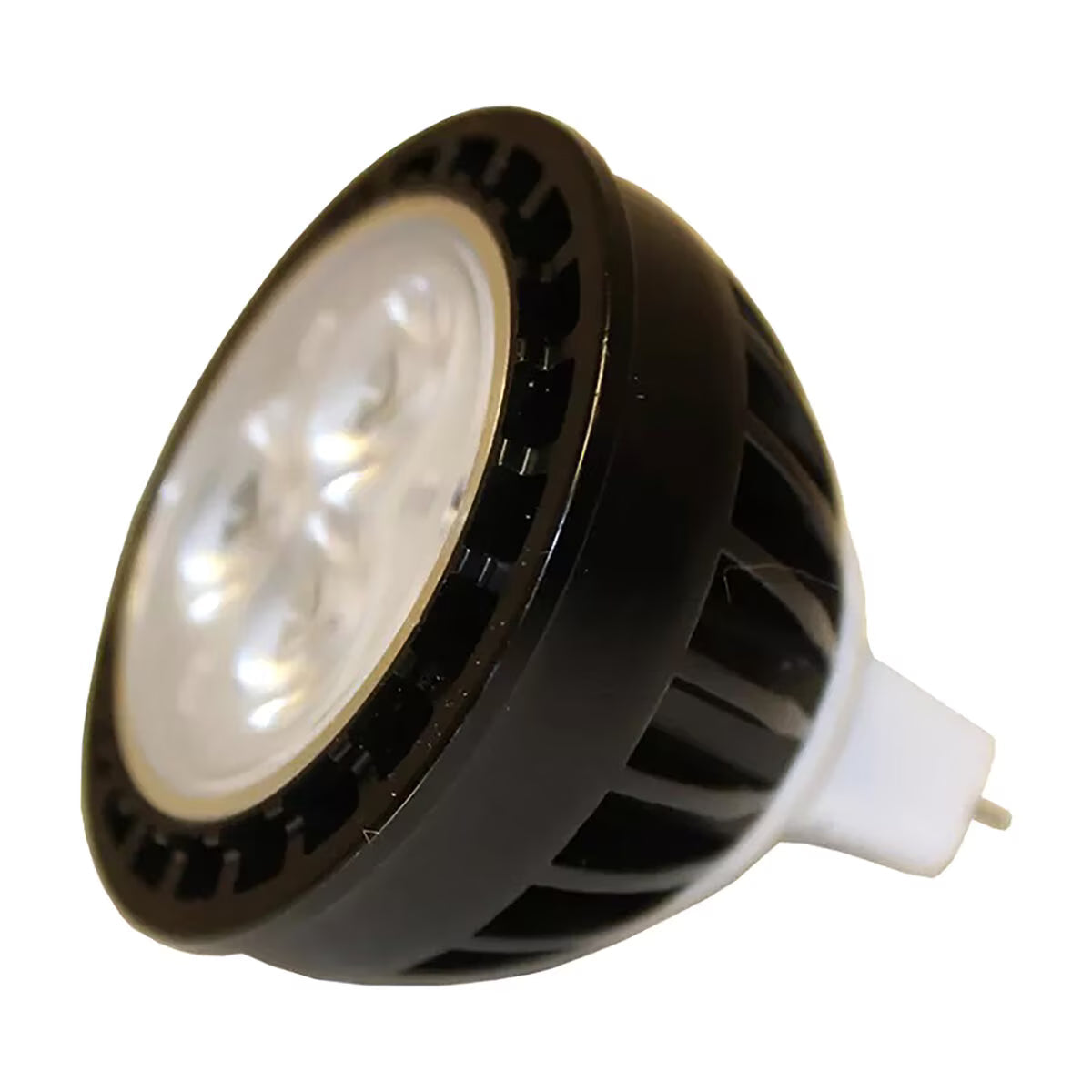

SLMR165W27 CAST SOURCE LED MR-16 Lamp 5W 2700K 40 Degree Wide

SLMR165W27 CAST SOURCE LED MR-16 Lamp 5W 2700K 40 Degree Wide

CAST
SLMR165W27
$32.99
$32.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Wattage
5W
Color Temp
2700K
Light Output
419 Lumens
Beam Angle
Wide (40°)
CRI
83

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

Landscape installers reach for this 5-watt CAST lamp when a halogen MR-16 needs to come out and something more efficient goes in. It puts out a 40-degree wide beam in a 2700K warm tone, which is a comfortable spread for washing a wide tree canopy, lighting a stone wall face, or filling in the shaded side of a column without leaving a hard-edged hot spot. Because it runs on anything from 10 to 24 volts, AC or DC, it stays stable on long runs where voltage sags toward the end of the line, and it holds up in sealed and submerged housings where heat builds. The black lamp body is CAST's shorthand for a 50-watt halogen replacement, and the beam angle is marked right on the optic face, so identifying it during a service call does not mean pulling the lamp out of the fixture.

  • Fits any CAST fixture built around an MR-16 bi-pin socket
  • Draws 5 watts while covering what a 50-watt halogen used to
  • 40-degree wide beam, well suited to cross-lighting, façade grazing, and canopy work
  • Runs across a 10 to 24 volt range on either AC or DC power
  • 419 lumens measured out of an enclosed fixture; 540 lumens at the factory
  • 83 CRI at 2700K keeps brick, bark, and stonework looking natural after dark
  • Rated to 50,000 hours, fully potted for outdoor and enclosed service

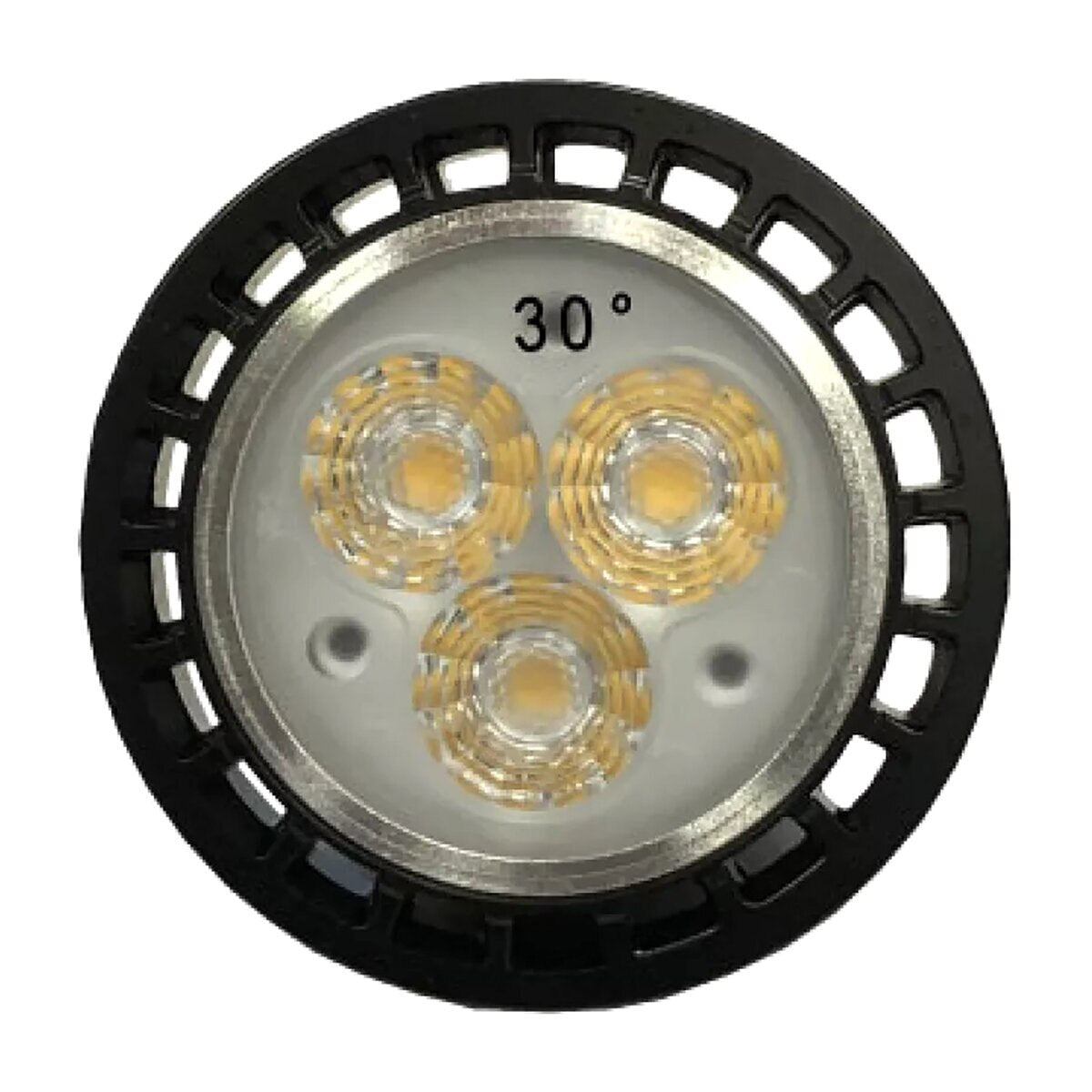

  • Beam spread engraved on the optic and wattage class coded into the body color
View full details

Specifications

Brand Name CAST Lighting
Series Source LED MR-16
Model SLMR165W27
Item Lamp
Type 12V LED
Bulb Shape MR16
Lamp Type Bi-Pin
Lamp Base GU5.3 (Bi-Pin)
Lighting Technology LED
Wattage 5W
Equivalent Wattage 50W Halogen
Voltage Rating 10V - 24V AC
Light Output 419 Lumens
Color Temperature 2700K
Light Color Warm White
Color Rendering Index (CRI) 83
Beam Angle Wide (40°)
Average Life 50,000 hrs.
Regulated No
