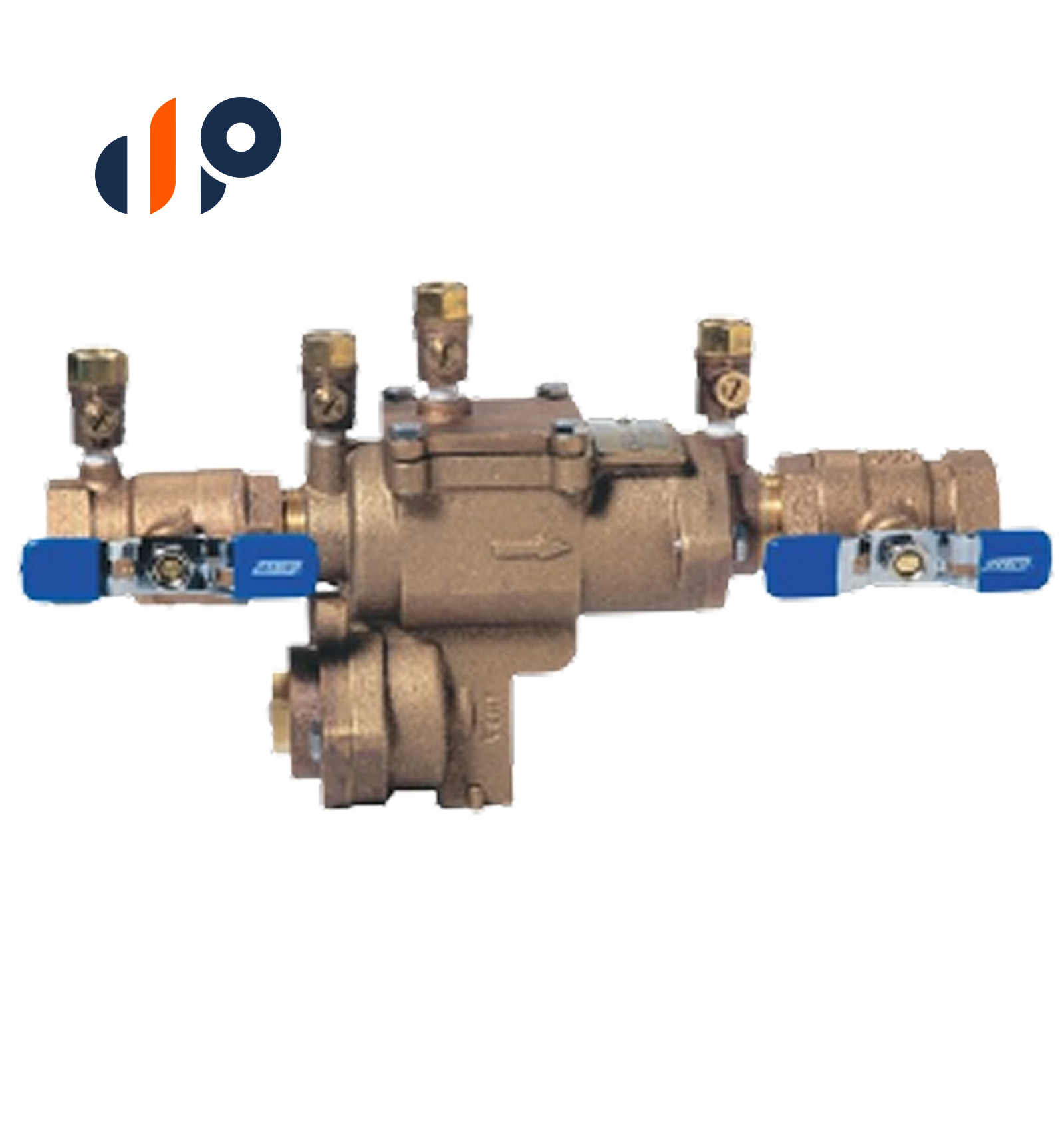

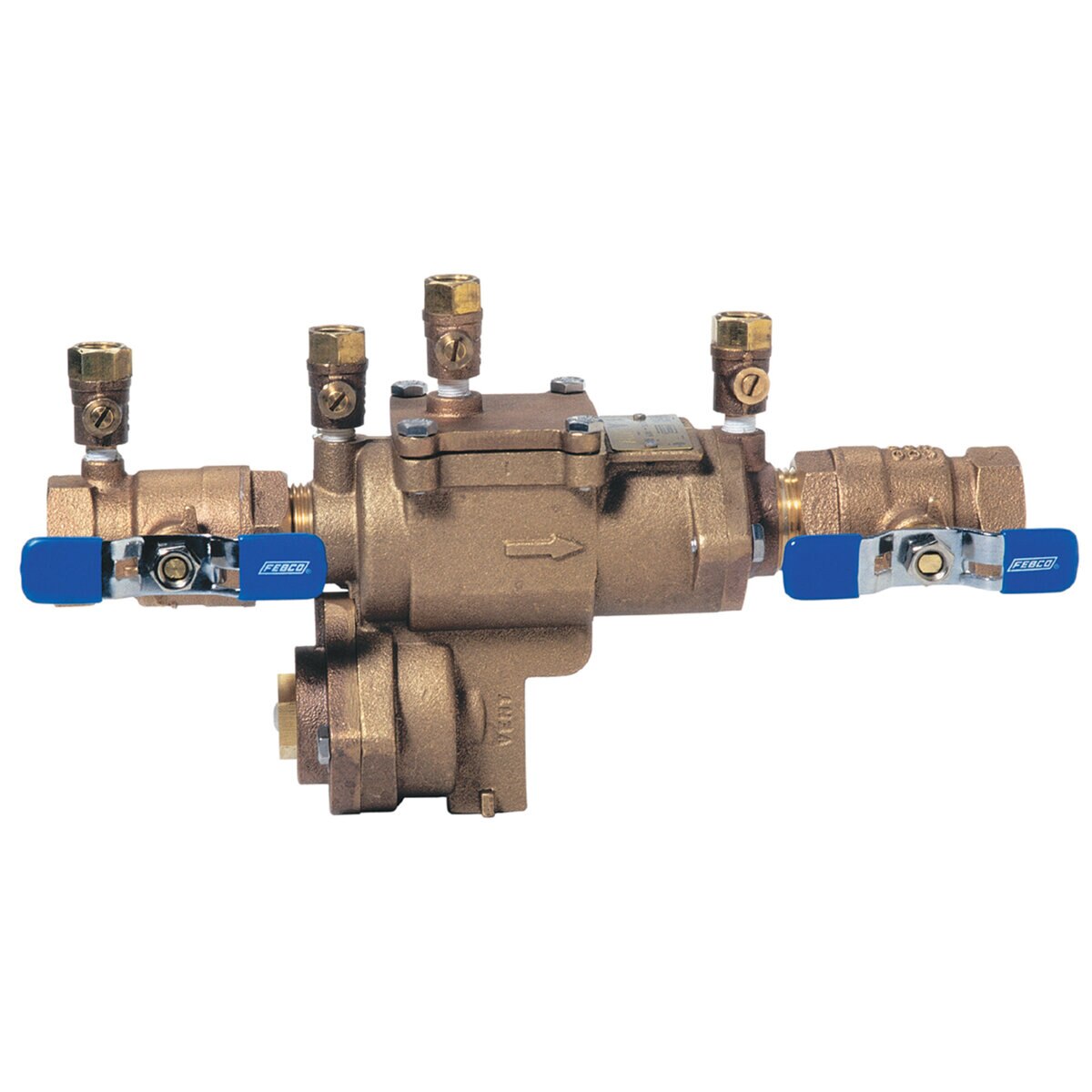

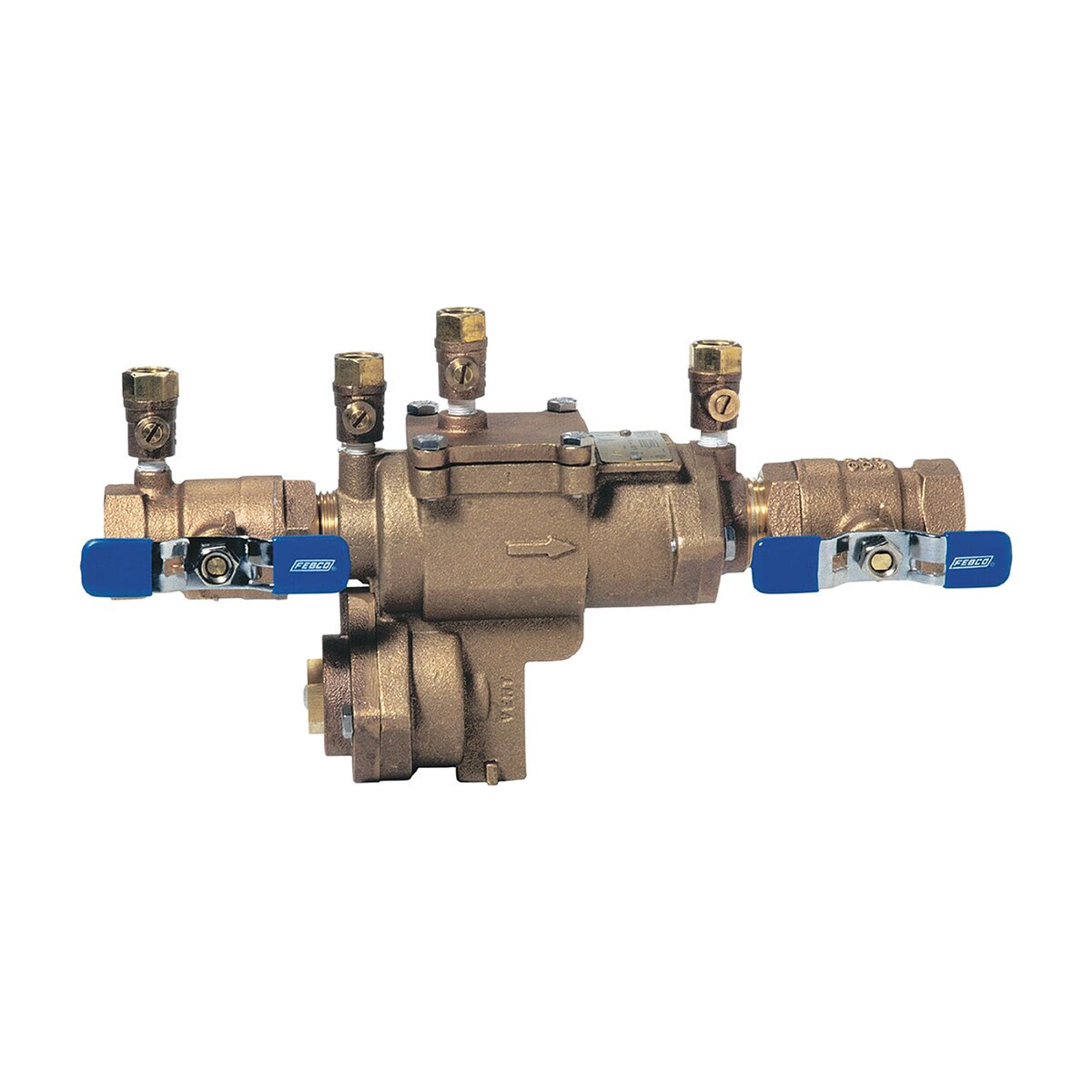

Febco 860U Reduced Pressure Backflow Preventer 2 in. Inline w/ Unions | 2816
Febco 860U Reduced Pressure Backflow Preventer 2 in. Inline w/ Unions | 2816
SKU:
2816
Regular price
$1,760.00
Regular price
Sale price
$1,760.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Built of high-quality bronze for lasting durability
- Spring-loaded ball valves for easy adjustment of water flow
- Works effectively at a maximum pressure of 175 PSI
- Top-mounted test cocks ensures convenient testing
- Replaceable plastic seats and seat disc for secure sealing
- Top mounted test cocks
- Stainless steel spring
- Maximum working pressure is 175 psi (12.1 bar)
- Hydrostatic test pressure is 350 psi (24.1 bar)
- Reduced Pressure Zone Assembly
This 2 inch reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to back siphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and it is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a bronze body, threaded quarter turn ball valves with union connections, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve.
Key Features
Key Features
✅ Series: 860 Small Series
✅ Connection Type: Fnpt x Fnpt
✅ Pressure Rating: 175 PSI
✅ Connection Size: 2 in. x 2 in.
✅ Body Material: Bronze
✅ Item: Reduced Pressure Assembly
✅ Type: Backflow Preventer
✅ Regulated: No
✅ Brand Name: Watts
