Flint & Walling CPJ15S Shallow Well Jet Pump 1.5 HP

Flint & Walling CPJ15S Shallow Well Jet Pump 1.5 HP

Regular price $2,189.99
Regular price Sale price $2,189.99
Sale Sold out
Shipping calculated at checkout.

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

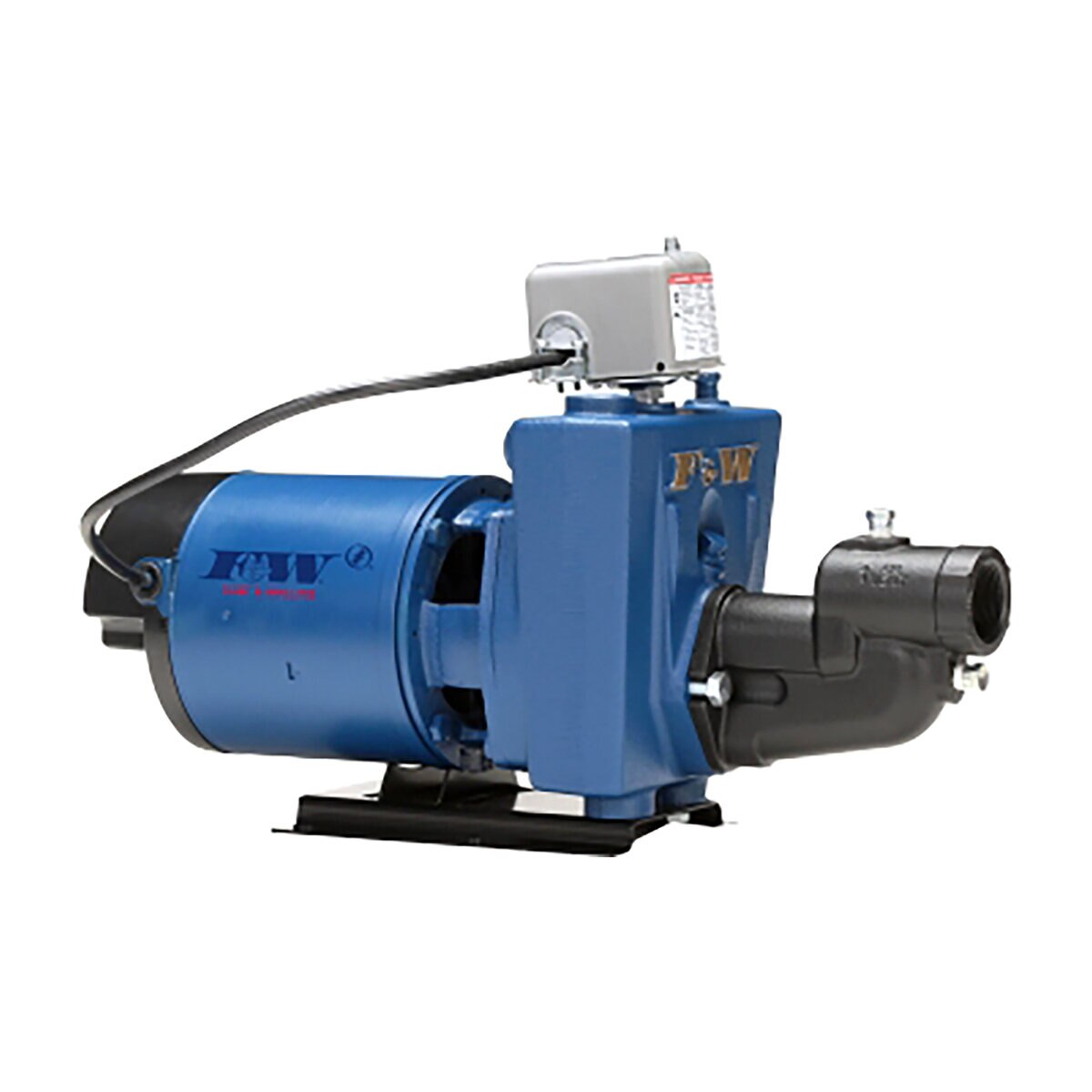

The Flint & Walling Shallow Well Jet Pump 1.5 HP 1 Phase features permanently lubricated ball bearings for easy alignment of a dynamically balanced rotor. Crafted from high-grade gray iron, this pump ensures durability. Its Buna-N O-ring provides a positive seal between the pump case and motor bracket. In addition, its snap-in diffusers offer resistance to corrosion and abrasion.

View full details

Specifications

Voltage Rating 115v - 230v
Phase Single-Phase
HP Rating 1.5 hp
Series CPJS Series
Material Composite
Includes Motor, Shallow Well Ejector, Pressure Switch
Item Pump
Type Jet
Number of Stages 1
Weight 72 lb.
Dimensions 13-1/2 in. x 14 in.
Power Source Electric
Amperage Rating 21 Amps - 10.5 Amps
Speed 3, 450 RPM
Flow Rate 30 GPM
Inlet Connection FNPT
Operating Pressure 77 PSI
Inlet Size 1-1/4 in.
Outlet Size 1 in.
Outlet Connection FNPT
Vertical Lift 25 ft.
Working Temperature 140 F
Regulated No
Brand Name Flint & Walling
