FX Luminaire Cora CG-51 Ground Wash 2700K 180° Bronze CG51E9WWF180AB

FX Luminaire Cora CG-51 Ground Wash 2700K 180° Bronze CG51E9WWF180AB

FX
CG51E9WWF180AB
$166.99
$166.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Housing Material
Composite
Voltage Rating
10V - 15V
Light Output
20 Lumens
Average Life
30, 000 hrs.
Dimmable
Yes
Mounting
Ground Mount

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

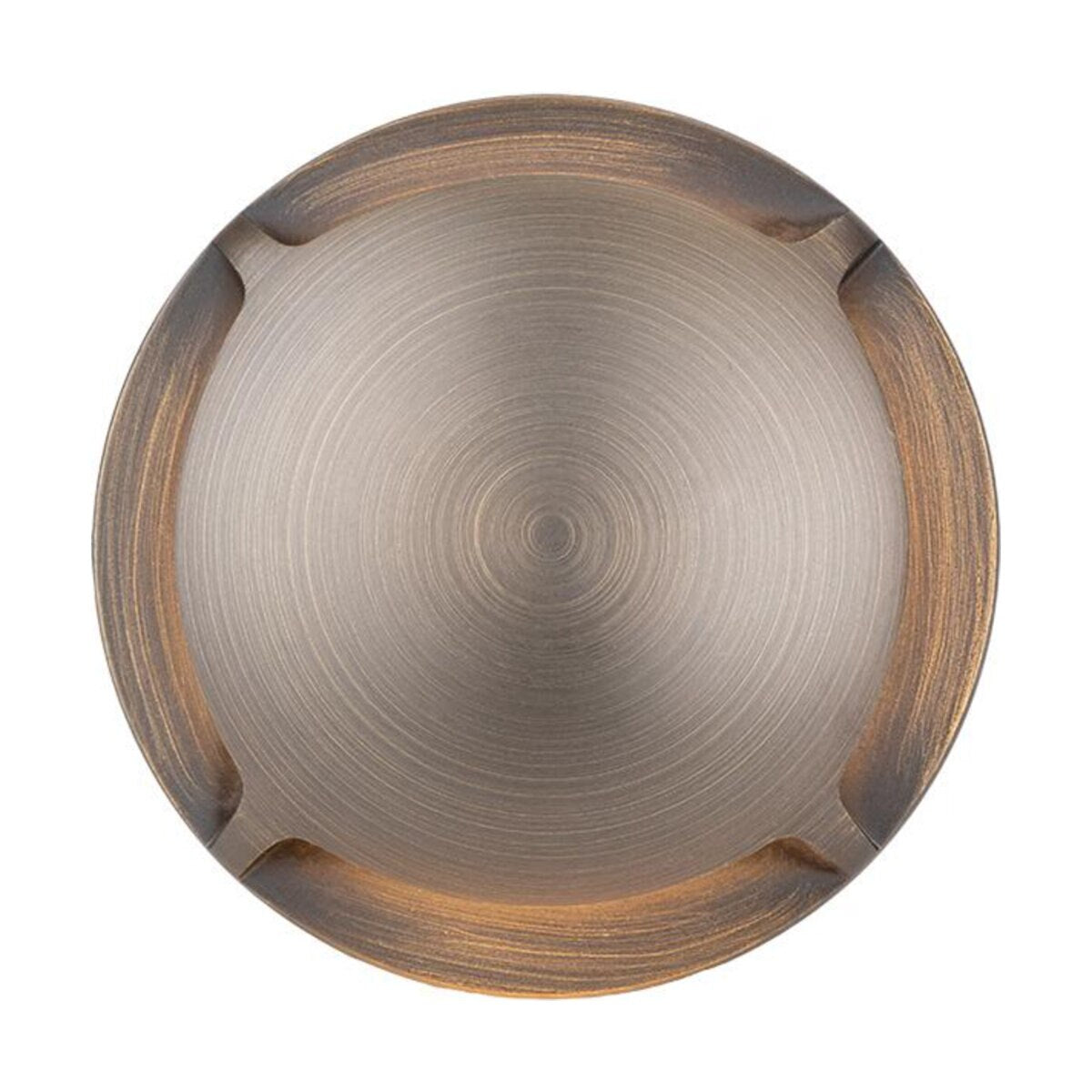

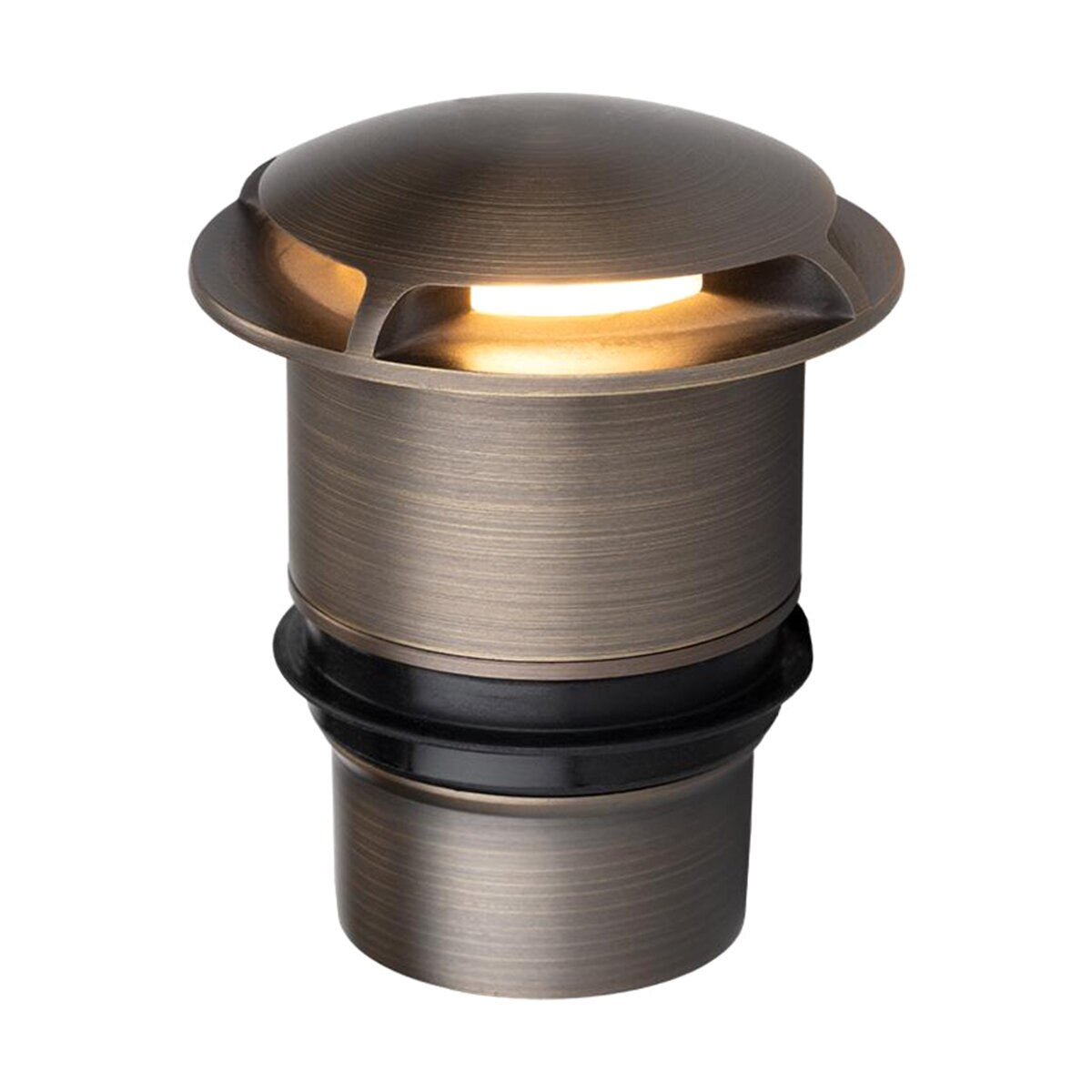

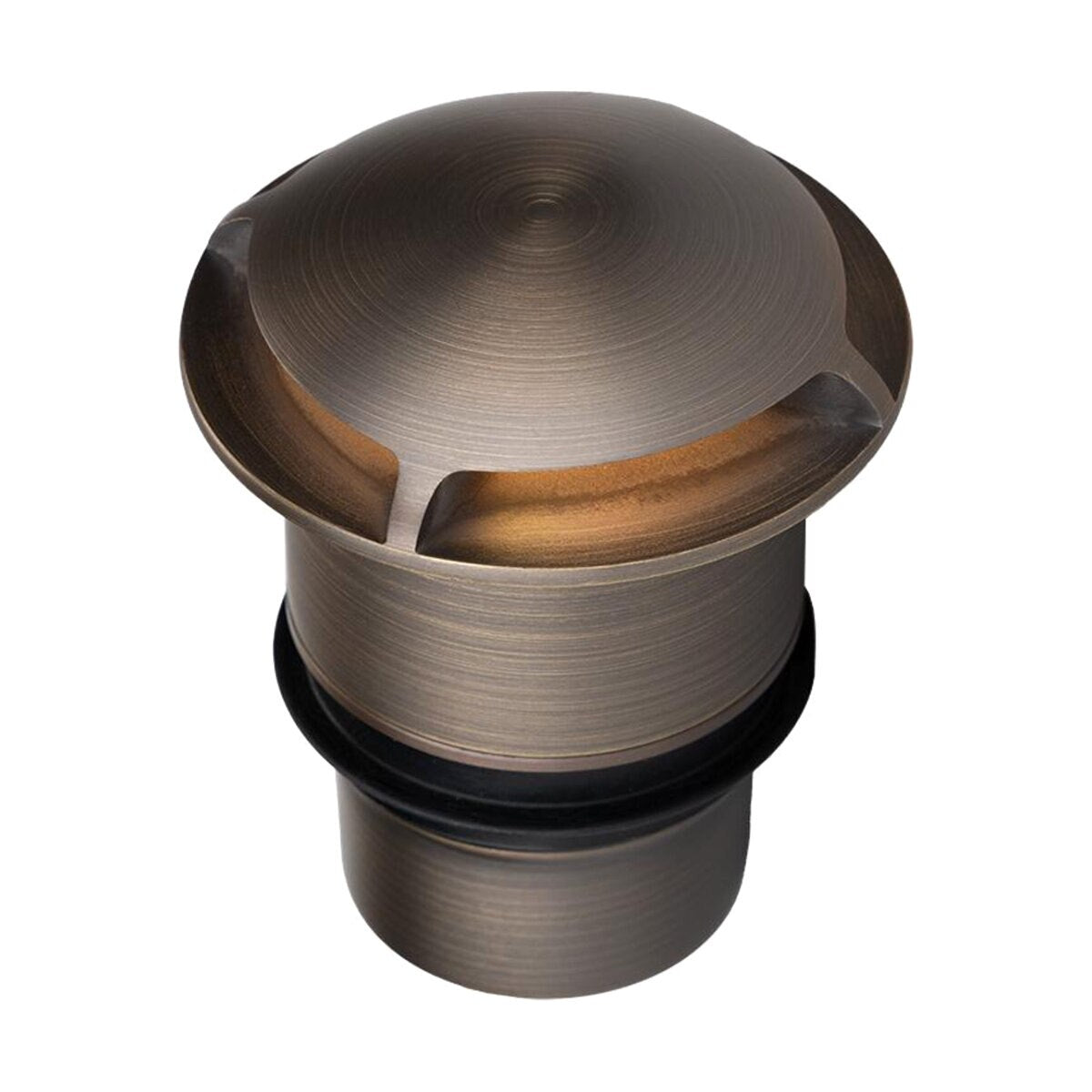

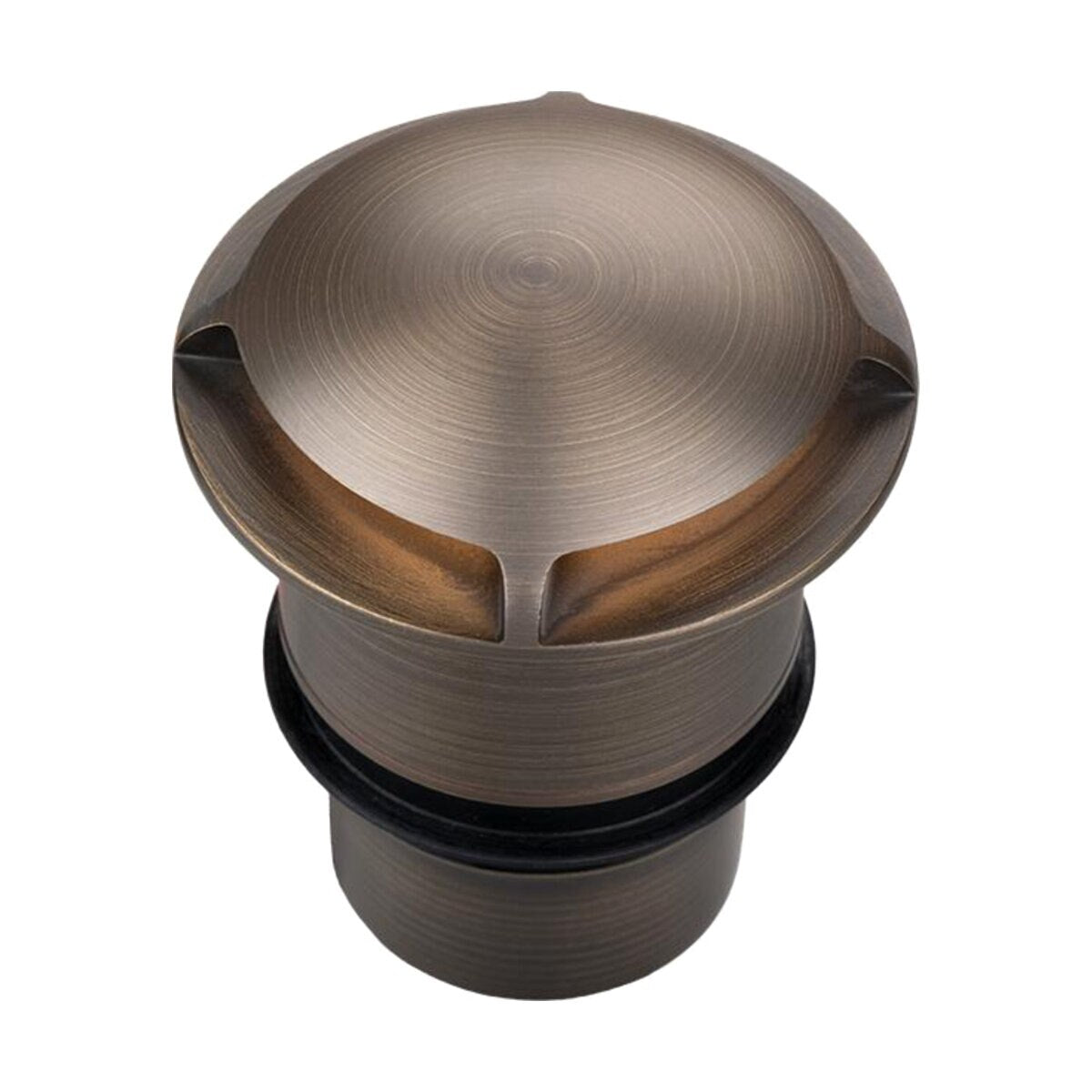

This is the brighter lamp in the CG-51 ground wash line, paired with the 180 degree faceplate that sends light out in one direction only. Use it along a path edge, against a wall base, or anywhere the fixture sits at the boundary of what you want lit. Because FX built the open 180 degree faceplate without a center brace, the wash comes out clean with no shadow line running through the middle of it. The fixture sits flush in the grade and keeps its light low and horizontal, so it never glares at anyone walking by. Premium select brass, IP66/67 rated, threaded top with no screws showing. The faceplate unthreads and swaps to the 360 degree version if the layout changes. Sets into standard 2½ inch Schedule 40 conduit. On the lumen number: ground wash fixtures read low because almost nothing goes upward, and that contained output is the point. A low voltage transformer is required and sold separately.



View full details

Specifications

Finish Antique Bronze
Mounting Ground Mount
Housing Material Composite
Integrated/Drop-in Integrated
Item Light
Type Ground Wash
Series Cora Series
Voltage Rating 10V - 15V
Bulb Shape MR16
Wire Size 18 AWG
Equivalent Wattage 50W
Length 4 in.
Dimensions 3-1/5 in. x 4 in.
Height 4 in.
Dimmable Yes
Number of Lamps 1
Lighting Technology LED
Color Rendering Index (CRI) 85
Light Color Warm White
Light Output 20 Lumens
Efficiency 3.5 Lumens/W
Color Temperature 2700K
Average Life 30, 000 hrs.
Beam Angle Ultra Wide (≥180°)
Wire Length 10 ft.
Maximum Overall Length 4 in.
Maximum Overall Diameter 3-1/5 in.
Lead Wire Length 120 in.
Volt-Ampere Rating 8.5 VA
Regulated No
Brand Name FX
