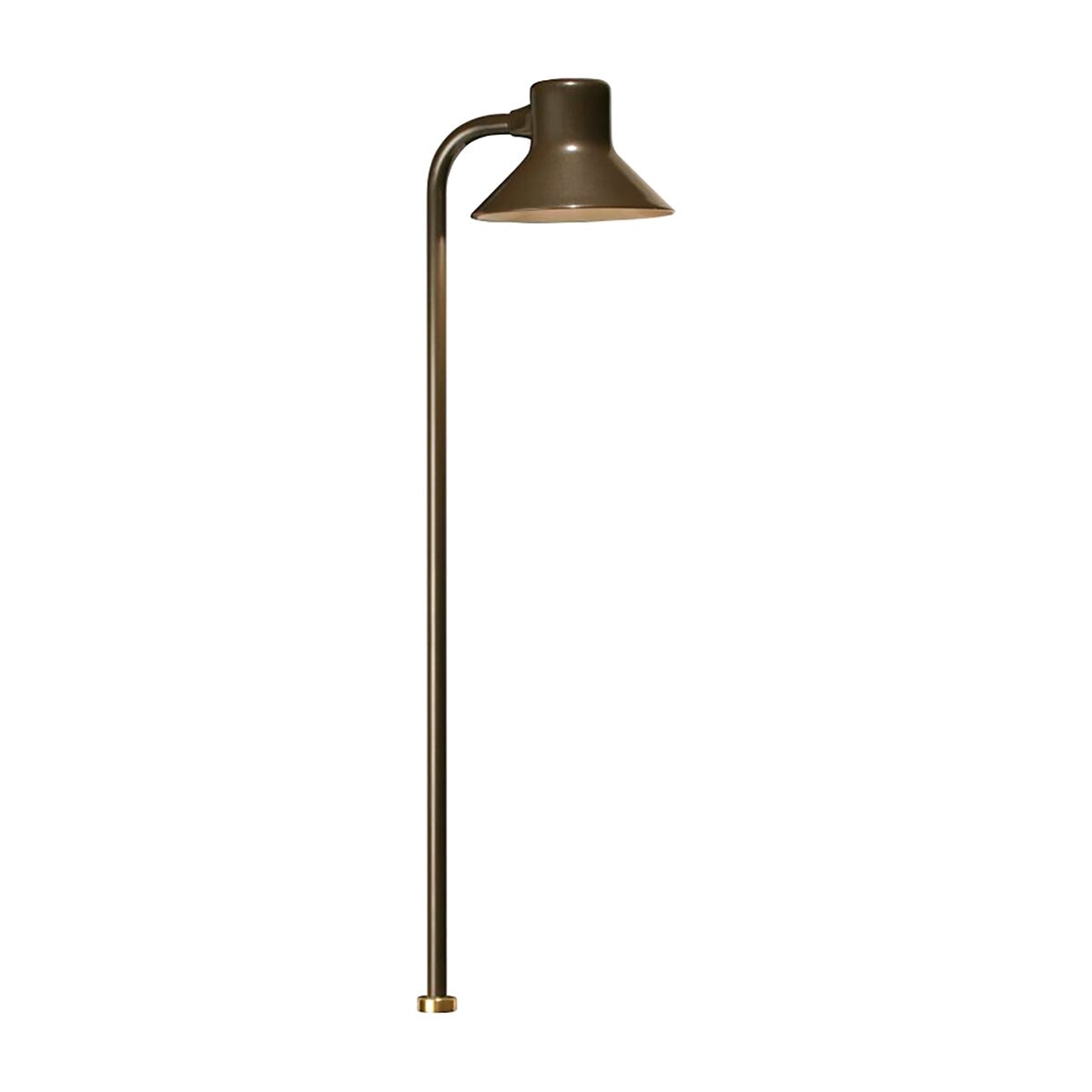

FX Luminaire FG Path Light, 18W Lamp, 22 in., Copper & Brass, Bronze Metallic

FX Luminaire FG Path Light, 18W Lamp, 22 in., Copper & Brass, Bronze Metallic

FX
FG18BZ
$169.99
$169.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Dimmable
Yes
Average Life
33,000 hrs.
Includes
Fixture, Specified LED Board, Lead Wire, Spike, Filters
Beam Angle
Flood (41°-60°)
Light Output
74 Lumens
Lighting Technology
Incandescent

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

The FG is machined from solid copper and brass, and the geometry is the point of it. A spun copper shade over a five inch head throws a clean circular pool of light, which is why it reads well in planter beds, along pool patio edges, and down motor courts where the fixture itself is on show as much as the light.

This is the lamped build. It takes a G4 bi-pin lamp and ships with the 18 watt lamp installed, so colour rendering is close to perfect, the way an incandescent source always is. The trade is load and life: at 18 watts per fixture it draws roughly four times what FX's integrated LED version of the FG does, and the lamp will need changing far sooner than an LED board would.

  • Machined C360 brass cap and reducer with stainless hardware
  • Spun C110 copper top and shade, extruded C110 copper riser
  • 5 in. diameter head, 22 in. tall
  • G4 bi-pin lamp base, 18W lamp included and replaceable
  • 3/8 in. copper riser with press-fit brass fittings, locked with set screws
  • 10 to 15V input, 18 watts per fixture
  • Dimmable on a standard low voltage dimmer
  • 3.6 ft lead wire, 18 AWG
  • Spike included
  • Bronze metallic finish, one of eleven options



View full details

Specifications

Finish Bronze Metallic
Integrated/Drop-in Integrated
Item Light Fixtures
Type Path & Area
Series FG Series
Voltage Rating 10V - 15V
Specifications Comes w/ Fixture, Specified Incandescent Lamp & Spike
Bulb Shape G4
Wire Size 18 AWG
Equivalent Wattage 18W
Length 22 in.
Dimensions 5 in. x 22 in.
Height 22 in.
Dimmable Yes
Number of Lamps 1
Wattage 18W
Lighting Technology Incandescent
Color Rendering Index (CRI) 84
Light Color Warm White
Light Output 74 Lumens
Efficiency 4.11 Lumens/W
Color Temperature 2700K
Average Life 33,000 hrs.
Beam Angle Flood (41°-60°)
Wire Length 3-3/5 ft.
Maximum Overall Length 22 in.
Maximum Overall Diameter 5 in.
Bulb Spacing 1 in.
Material Composite
Includes Fixture, Specified LED Board, Lead Wire, Spike, Filters
Lead Wire Length 3-3/5 ft.
Housing Material Copper
Regulated No
Brand Name FX
