FX Luminaire FR ZD 3LED Up Light, 2700K, Copper & Brass, Natural Copper

FX Luminaire FR ZD 3LED Up Light, 2700K, Copper & Brass, Natural Copper

FX
FRZD3LEDCU
$239.99
$239.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Integrated/Drop-in
Integrated
Voltage Rating
10V - 15V
Light Output
167 Lumens
Average Life
50, 000 hrs.
Includes
w/ Brass angle Lock Screw, Large Slotted ABS Spike, Tamper-Resistant & Locking Screw
Lead Wire Length
120 in.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

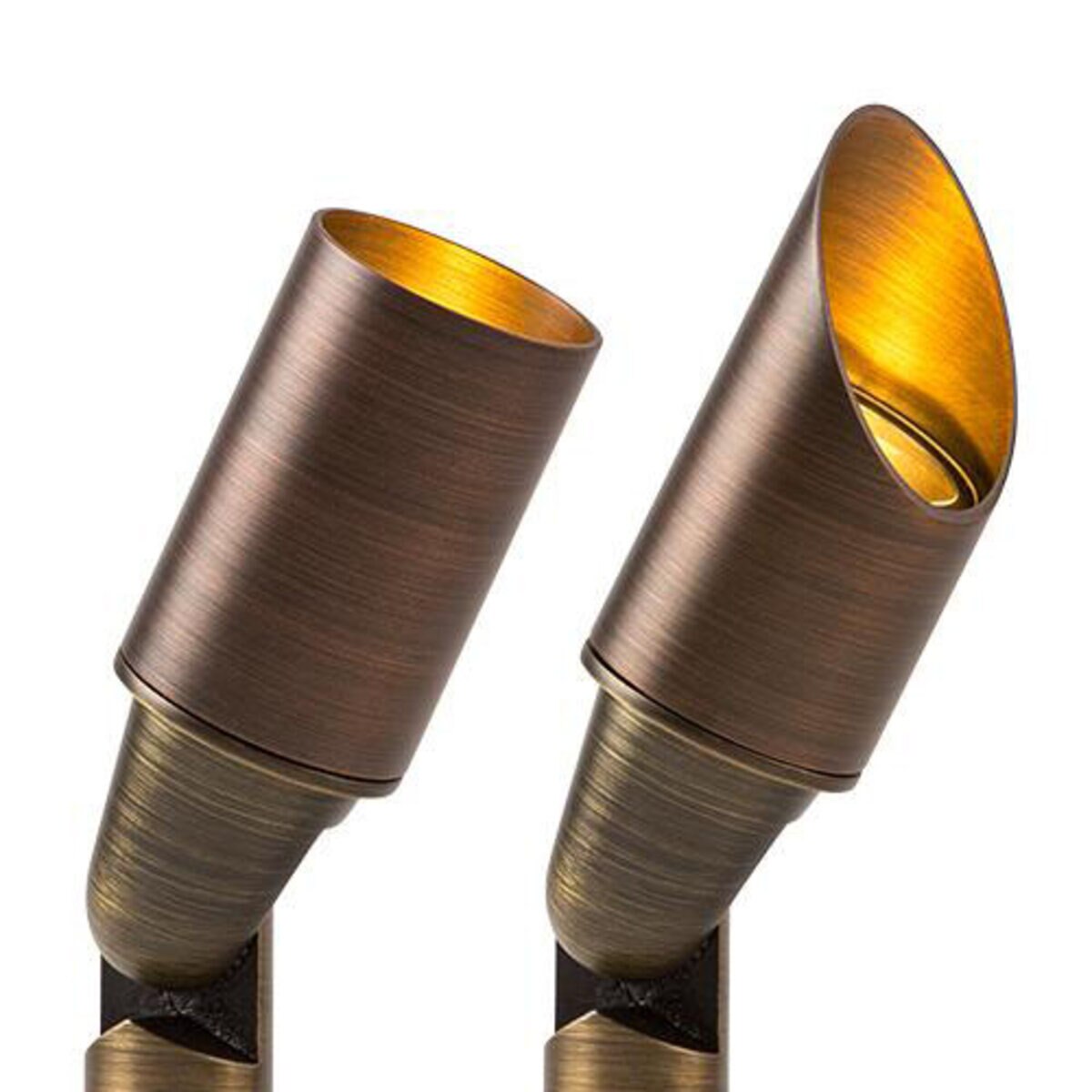

The FR is the smallest of FX's copper and brass up lights, two inches across, built for the same coastal and irrigated sites as the larger NR but where the fixture needs to disappear into a bed rather than sit in it.

An 18 degree diffuser ships preassembled, tight enough for a trunk or a column. Swapping in the flood or wide flood lens opens that to 30 or 56 degrees without pulling the fixture, and it takes MR-11 sized accessories like hex baffles and spread lenses. The ZD board lets a Luxor controller put it in a zone and dim it in one percent steps.

  • Cree integrated 3 LED board, 215 lumens at 2700K, 83 CRI
  • Machined brass and extruded copper construction
  • 18 degree diffuser preassembled, 30-32 and 56-58 degree lenses available
  • Takes MR-11 lens accessories, hex baffle and spread lens
  • ProAim adjustable aiming
  • 10 to 15V input, 4.4 VA per fixture
  • Zoning and dimming through a Luxor controller
  • Also phase-cut dimmable
  • Colour temperature filters included
  • 1/2 in. NPS thread, large slotted ABS spike included
  • 72,000 hour L70 rated life
View full details

Specifications

Finish Copper Finish
Mounting Ground Mount
Integrated/Drop-in Integrated
Housing Material Copper, Brass
Dimmable Yes
Type Accent & Up
Includes w/ Brass angle Lock Screw, Large Slotted ABS Spike, Tamper-Resistant & Locking Screw
Number of Lamps 3 Lamps
Lead Wire Length 120 in.
Volt-Ampere Rating 4.5VA
Item Light Fixtures
Series FR Series
Voltage Rating 10V - 15V
Bulb Shape MR11
Wire Size 18 AWG
Dimensions 6-1/9 in. x 2 in.
Lamp Base Standing
Wattage 4.2W
Lighting Technology LED
Color Rendering Index (CRI) 71
Light Color Warm
Light Output 167 Lumens
Color Temperature 2700K
Average Life 50, 000 hrs.
Beam Angle Spot (16°-25°)
Wire Length 120 in.
Regulated No
Brand Name FX
