FX Luminaire HCLEDTASB HC Path Light Top Assembly Only, Sedona Brown

FX Luminaire HCLEDTASB HC Path Light Top Assembly Only, Sedona Brown

HCLEDTASB
Regular price $94.99
Regular price Sale price $94.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Dimmable
Yes
Average Life
50,000 hrs.
Includes
LED Bulb, Mounting Hardware
Beam Angle
Flood (41°-60°)
Light Output
39 Lumens
Specifications
Compatible w/ Luxor Technology

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

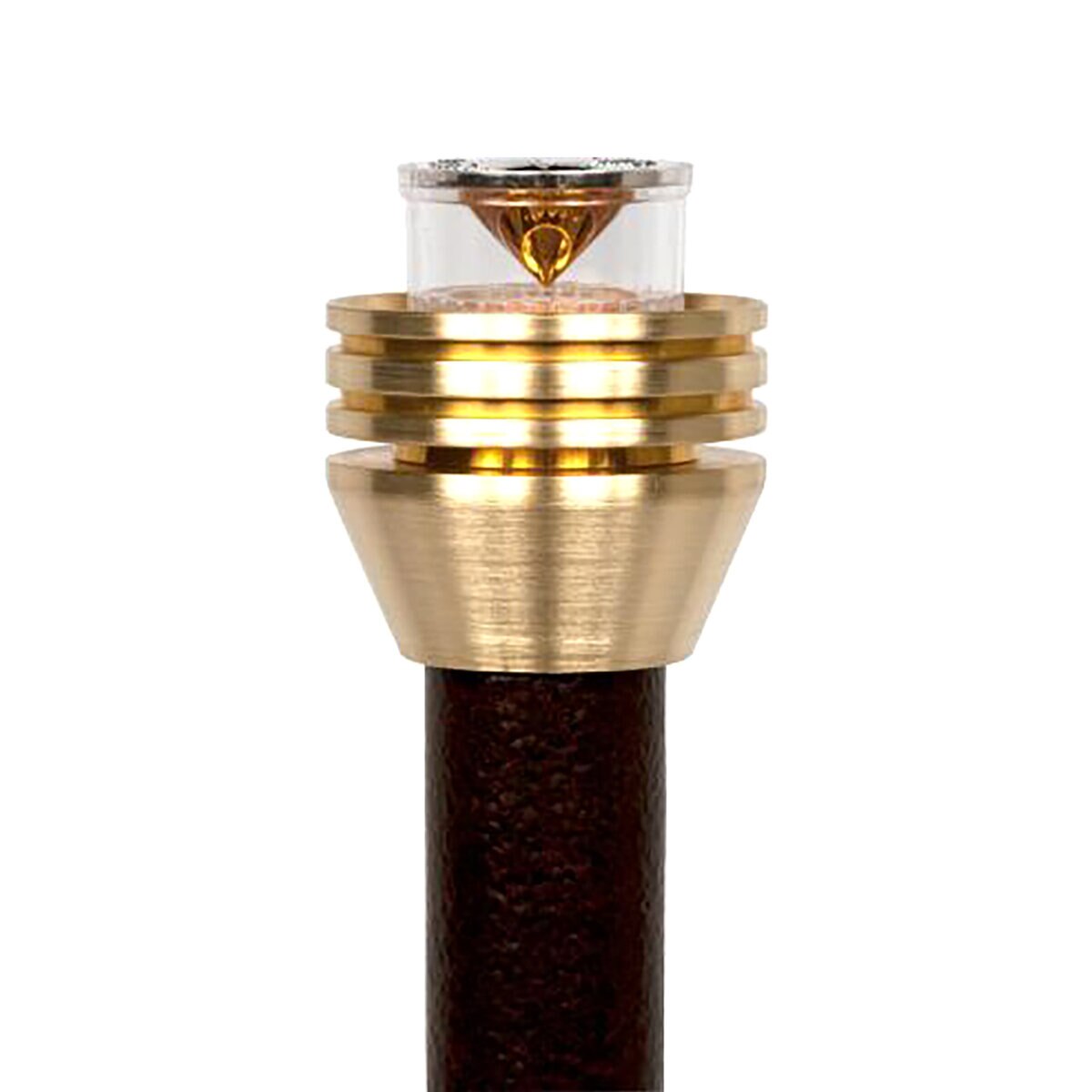

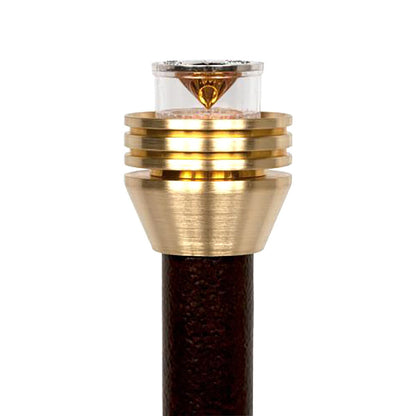

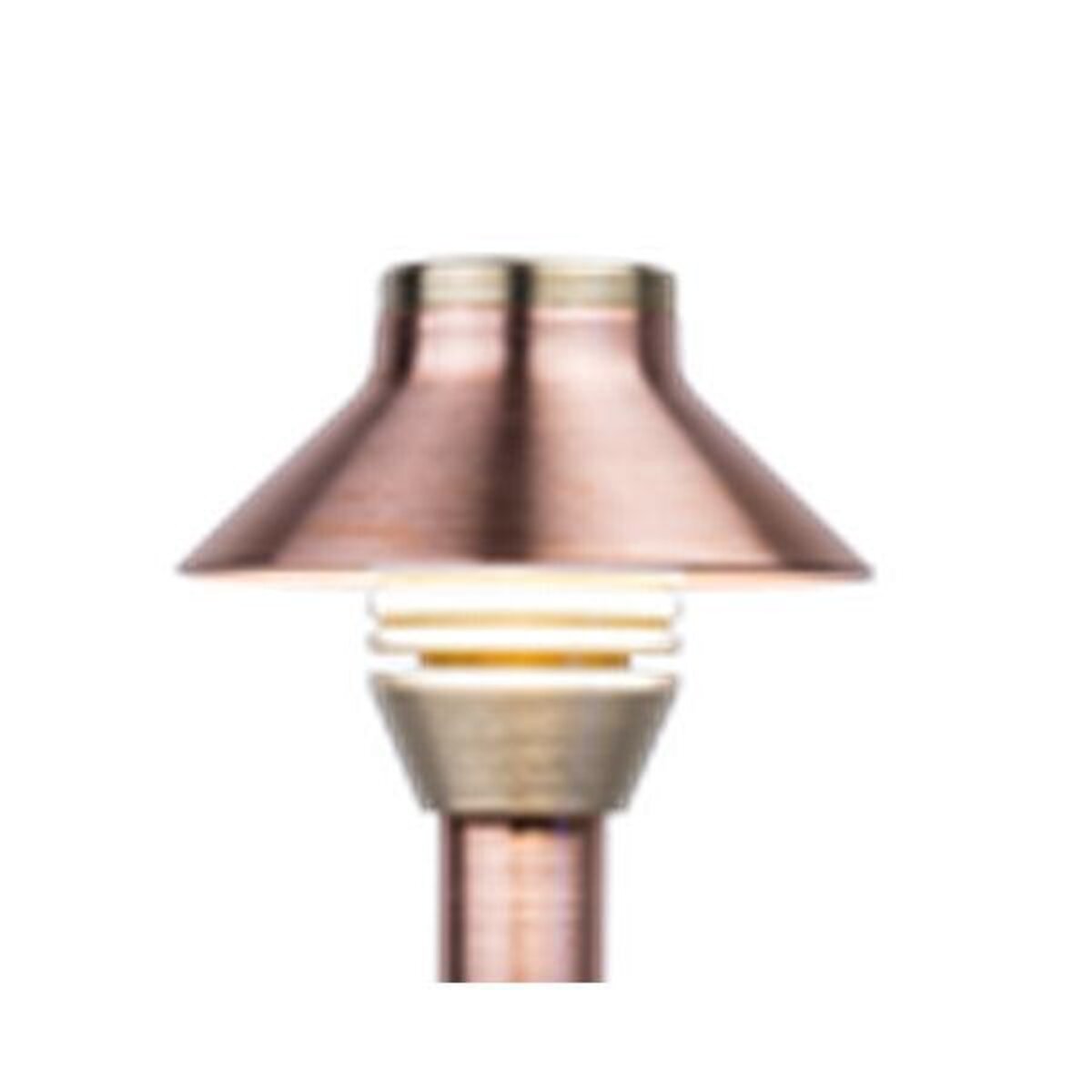

The HCLEDTASB is the top assembly for the FX Luminaire HC path light, finished in Sedona Brown. This is the hat only. It has no LED module, no riser and no stake, because on the HC the light engine lives in the riser assembly, so a P riser with the 1LED module has to be ordered separately to make a working fixture. Order it when a hat has been damaged or stolen, when a finish is being changed on an existing run, or when a job is being built up from parts. The assembly is spun C110 copper with a machined C360 brass cap and reducer and stainless hardware, measures 3-5/8 inches across, and twists onto the riser until the lens seats against the brass reducer and seals.

View full details

Specifications

Finish Sedona Brown
Integrated/Drop-in Integrated
Item Light Fixtures
Type Path & Area
Series HC Series
Voltage Rating 10V - 15V
Amperage Rating 1 Amps
Specifications Compatible w/ Luxor Technology
Bulb Shape A19
Wire Size 18 AWG
Equivalent Wattage 20W
Dimensions 3-5/8 in. x 3-5/8 in.
Height 10 in.
Lamp Base Standing
Dimmable Yes
Number of Lamps 1
Wattage 2W
Lighting Technology LED
Color Rendering Index (CRI) 86
Light Color Warm White
Light Output 39 Lumens
Efficiency 19.5 Lumens/W
Color Temperature 2700K
Average Life 50,000 hrs.
Beam Angle Flood (41°-60°)
Wire Length 3 ft.
Maximum Overall Length 3-5/8 in.
Maximum Overall Diameter 3-5/8 in.
Bulb Spacing 12 in.
Material Composite
Includes LED Bulb, Mounting Hardware
Housing Material Brass Housing
Regulated No
Brand Name FX
