KGZD9LEDBS FX Luminaire KG ZD 9LED Well Light 2700K Natural Brass

KGZD9LEDBS FX Luminaire KG ZD 9LED Well Light 2700K Natural Brass

FX
KGZD9LEDBS
$339.99
$339.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Finish
Natural Brass
Mounting
Ground Mount
Housing Material
Composite
Dimmable
Yes
Light Output
321 Lumens
Average Life
55, 000 hrs.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

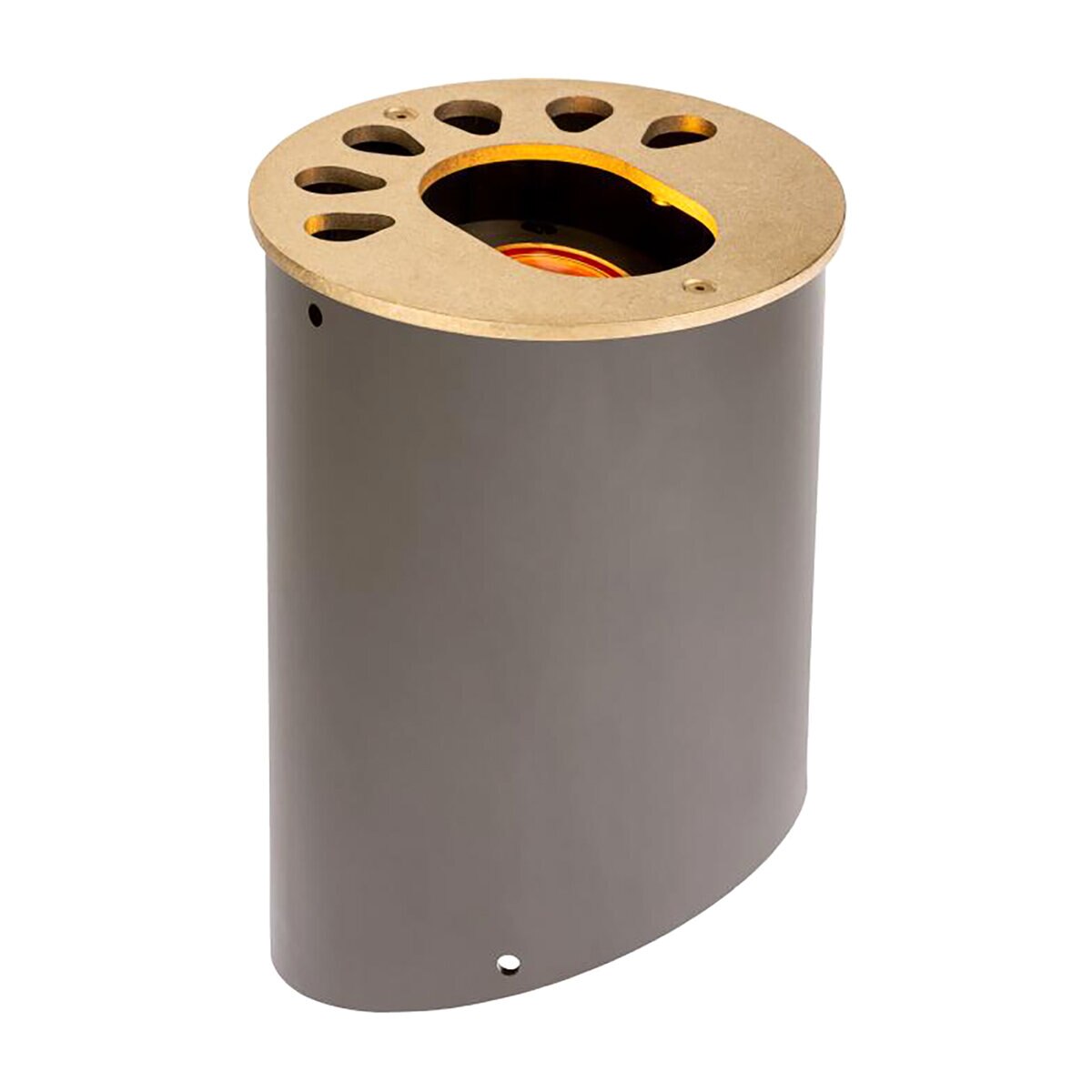

The KG buries in the grade with only its metal top showing, then throws light up a trunk or a wall face from below. What sets it apart from most well lights is the LED module inside, which aims independently of the housing, so you can re point the beam years later as a tree fills out without digging anything up. This is the nine LED board at 543 lumens, the brightest in the line, sized for tall targets and wide facades. Brass construction with a tempered glass lens and MoistureBlock sealing, rated IP67, which is what keeps water from wicking into the sealed areas the way it eventually does in lesser fixtures. Amber, green, blue and frosted filters come in the box. The ZD designation adds zoning and dimming through a Luxor controller, though without one you get the fixture and none of that. A low voltage transformer is required and sold separately.



View full details

Specifications

Finish Natural Brass
Mounting Ground Mount
Housing Material Composite
Integrated/Drop-in Integrated
Item Fixture
Type Well Light
Series KG Series
Voltage Rating 10V - 15V
Specifications Includes - Specified LED Board, 10 ft. Lead Wire & Filters
Bulb Shape PAR36
Wire Size 18 AWG
Equivalent Wattage 60W
Length 6-1/9 in.
Dimensions 6-1/9 in. x 6-1/9 in. x 9-1/5 in.
Height 9-1/5 in.
Dimmable Yes
Number of Lamps 9
Wattage 10W
Lighting Technology LED
Color Rendering Index (CRI) 83
Light Color Warm White
Light Output 321 Lumens
Efficiency 32 Lumens/W
Color Temperature 2700K
Average Life 55, 000 hrs.
Beam Angle Narrow Flood (26°-40°)
Wire Length 10 ft.
Maximum Overall Length 10 in.
Maximum Overall Diameter 7 in.
Lead Wire Length 5 ft.
Volt-Ampere Rating 12.2 VA
Regulated No
Brand Name FX
