KGZD6LEDFB FX Luminaire KG ZD 6LED Well Light 2700K Flat Black

KGZD6LEDFB FX Luminaire KG ZD 6LED Well Light 2700K Flat Black

FX
KGZD6LEDFB
$274.99
$274.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Mounting
Ground Mount
Integrated/Drop-in
Integrated
Dimmable
Dimmable
Light Output
452 Lumens
Average Life
75, 000 hrs.
Specifications
Includes

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

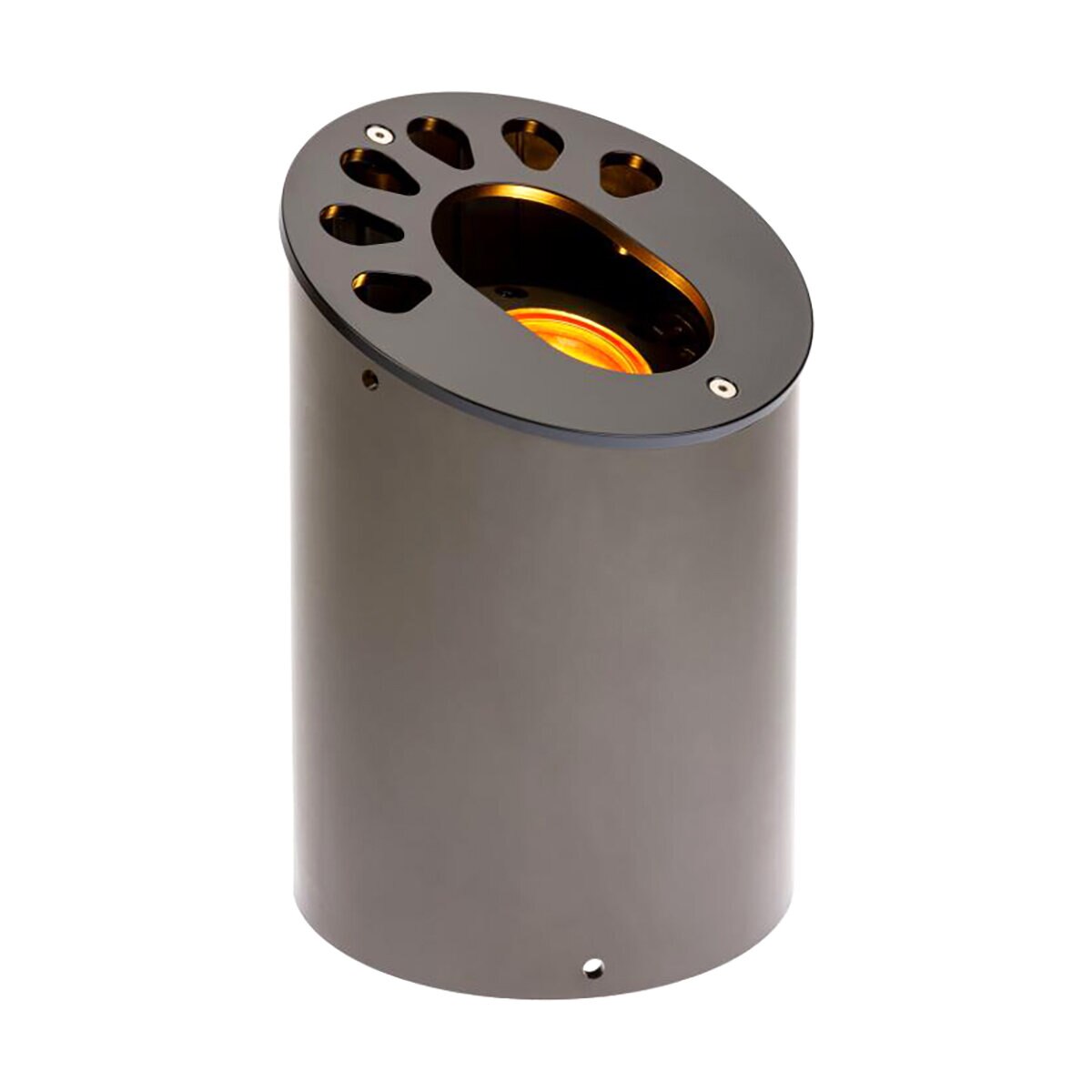

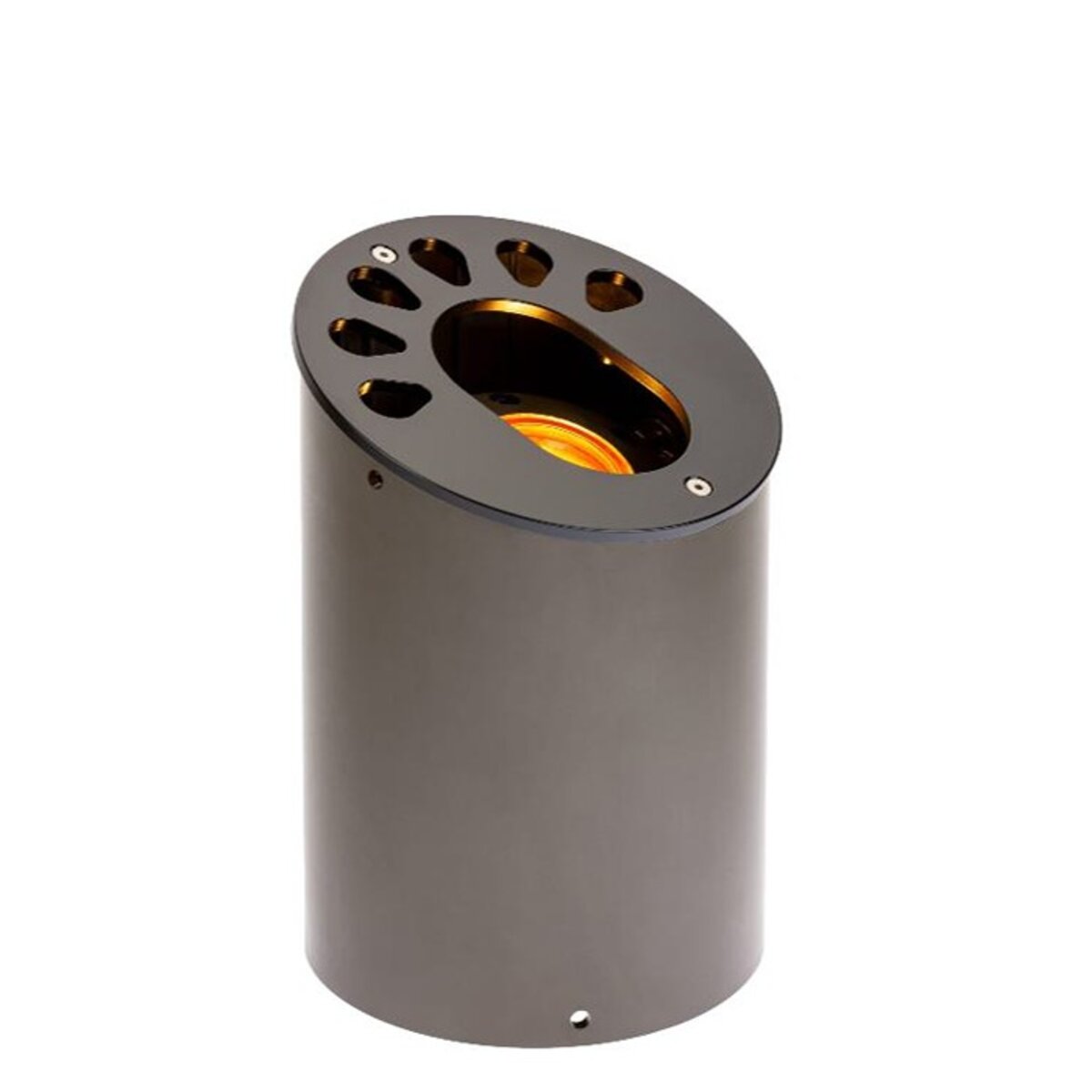

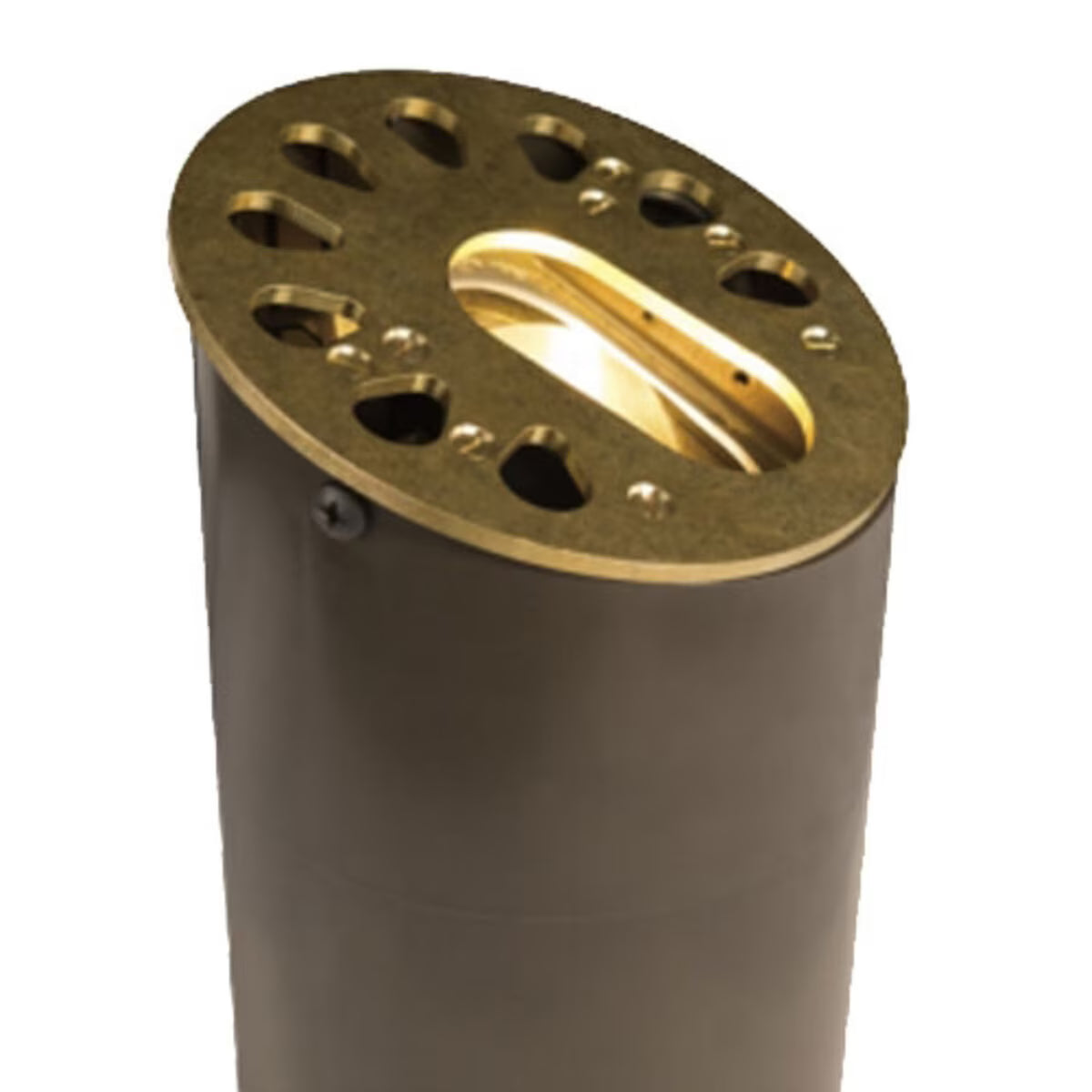

The KG sits down in the grade with only its flat metal top showing, throwing light up a trunk or a wall from below. The part worth paying for is the LED module inside, which aims independently of the housing, so the beam can be re pointed years later as a tree fills out without digging the fixture back up. This is the six LED board at 452 lumens, the middle option and the most efficient of the three at 59 lumens per watt. Tempered glass lens, MoistureBlock sealing and an IP67 rating keep water out of the sealed areas where well lights usually fail first. Amber, green, blue and frosted filters are in the box. The ZD designation adds zoning and dimming through a Luxor controller, and without one you get the fixture but none of that behavior. A low voltage transformer is required and sold separately.



View full details

Specifications

Finish Flat Black
Mounting Ground Mount
Housing Material Aluminum
Integrated/Drop-in Integrated
Item Light
Type Well
Series KG
Voltage Rating 12V
Specifications Includes
Bulb Shape PAR36
Wire Size 18 AWG
Equivalent Wattage 60W
Length 6-1/9 in.
Dimensions 6-1/9 in. x 6-1/9 in. x 9-1/5 in.
Height 9-1/5 in.
Dimmable Dimmable
Number of Lamps 6 Lamps
Wattage 10.1W
Lighting Technology LED
Color Rendering Index (CRI) 83
Light Color Warm White
Light Output 452 Lumens
Efficiency 59 Lumens/W
Color Temperature 2700K
Average Life 75, 000 hrs.
Beam Angle 25 Degree
Wire Length 10 ft.
Maximum Overall Length 9-1/5 in.
Maximum Overall Diameter 6 in.
Lead Wire Length 10 ft.
Volt-Ampere Rating 9.3 VA
Regulated No
Brand Name FX
