KGZD6LEDBS FX Luminaire KG ZD 6LED Well Light 2700K Natural Brass

KGZD6LEDBS FX Luminaire KG ZD 6LED Well Light 2700K Natural Brass

FX
KGZD6LEDBS
$319.99
$319.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Mounting
Ground Mount
Housing Material
Brass
Integrated/Drop-in
Integrated
Dimmable
Yes
Light Output
264 Lumens
Average Life
55, 000 hrs.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

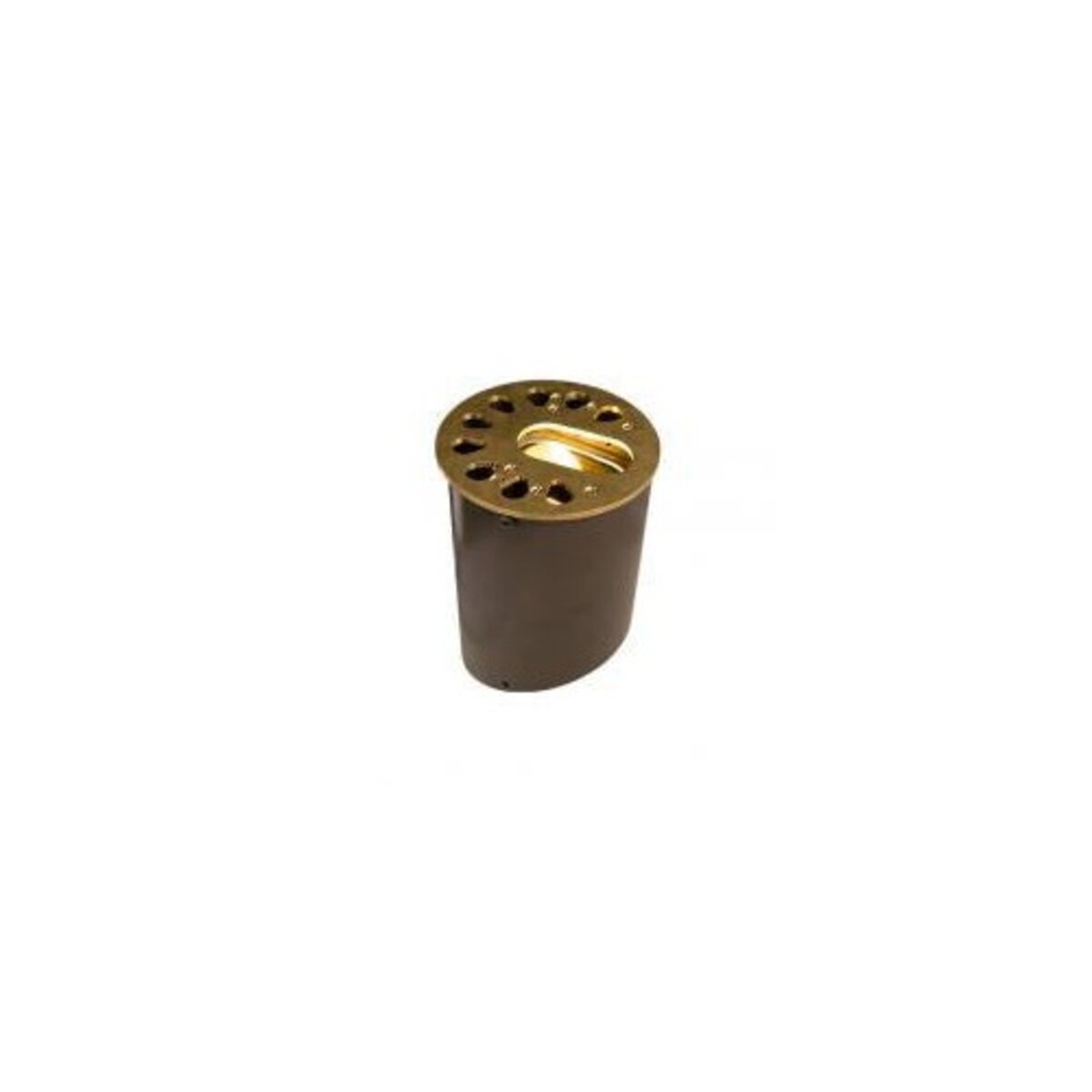

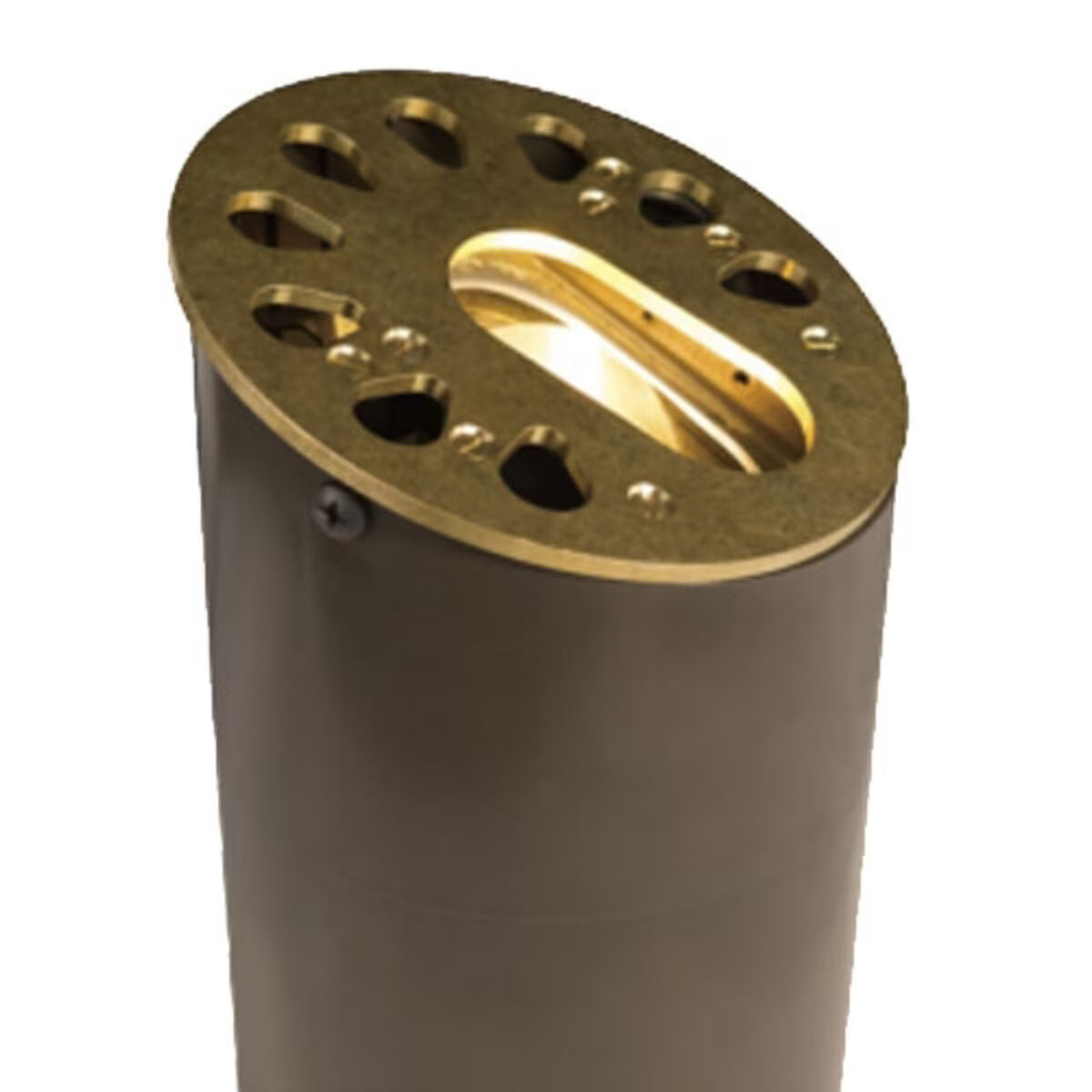

The KG buries in the grade with only its flat metal top showing, throwing light up a trunk or a wall face from below. The LED module inside aims independently of the housing, so the beam can be re pointed years later as a tree fills out, without digging the fixture back up. This is the six LED board at 452 lumens, the most efficient of the three at 59 lumens per watt. Brass construction with a tempered glass lens and MoistureBlock sealing, rated IP67, which keeps water out of the sealed areas where well lights usually fail first. Brass is the choice for coastal sites and anywhere irrigation carries salt or minerals. Amber, green, blue and frosted filters come in the box. The ZD designation adds zoning and dimming through a Luxor controller, and without one you get the fixture but none of that. A low voltage transformer is required and sold separately.



View full details

Specifications

Finish Natural Brass
Mounting Ground Mount
Housing Material Brass
Integrated/Drop-in Integrated
Item Fixture
Type Well Light
Series KG Series
Voltage Rating 10V - 15V
Specifications Includes - Specified LED Board, 10 ft. Lead Wire & Filters
Bulb Shape PAR36
Wire Size 18 AWG
Equivalent Wattage 60W
Length 6-1/9 in.
Dimensions 6-1/9 in. x 6-1/9 in. x 9-1/5 in.
Height 9-1/5 in.
Dimmable Yes
Number of Lamps 6
Wattage 10.1W
Lighting Technology LED
Color Rendering Index (CRI) 83
Light Color Warm White
Light Output 264 Lumens
Efficiency 26.1 Lumens/W
Color Temperature 2700K
Average Life 55, 000 hrs.
Beam Angle Narrow Flood (26°-40°)
Wire Length 10 ft.
Maximum Overall Length 6-1/9 in.
Maximum Overall Diameter 6-1/9 in.
Lead Wire Length 10 ft.
Volt-Ampere Rating 9.3 VA
Regulated No
Brand Name FX
