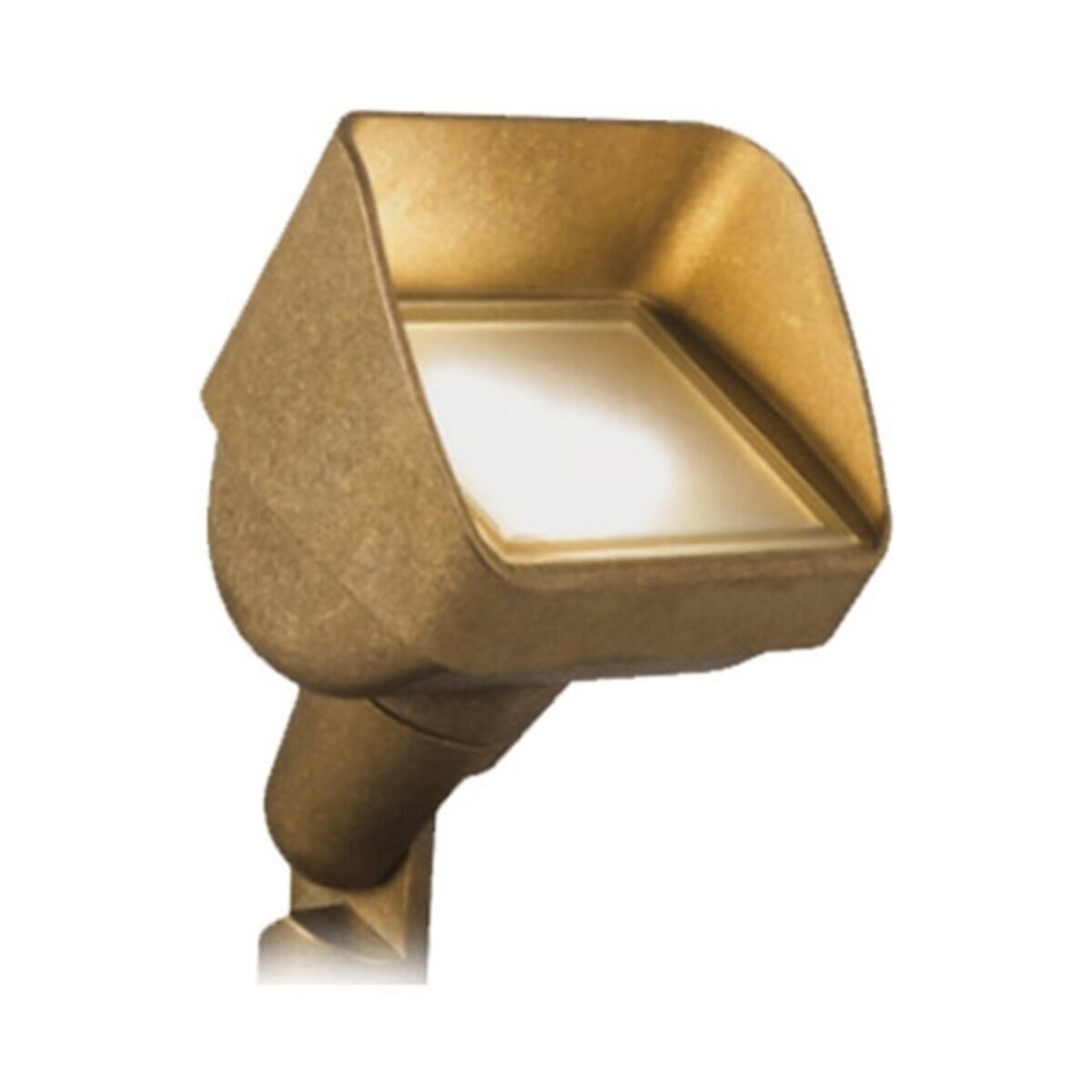

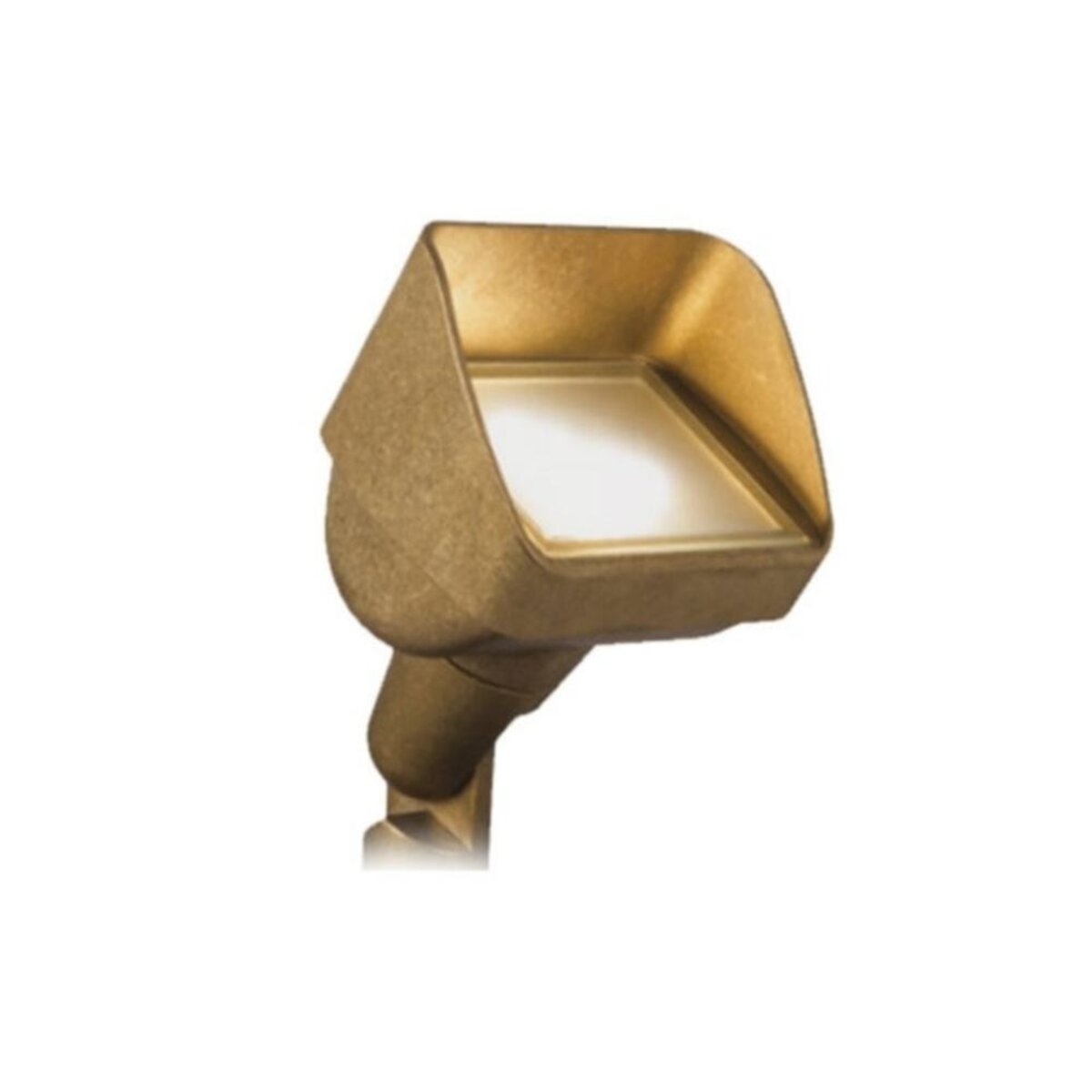

LCZD6LEDBZ FX Luminaire LC ZD 6LED Wall Wash 2700K Bronze Metallic

LCZD6LEDBZ FX Luminaire LC ZD 6LED Wall Wash 2700K Bronze Metallic

FX
LCZD6LEDBZ
$269.99
$269.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Mounting
Ground Mount
Dimmable
Yes
Voltage Rating
10V - 15V
Light Output
540 Lumens
Average Life
50,000 hrs.
Beam Angle
90 Degree

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

The LC handles the walls a narrow beam does badly. Its 90 degree spread lays an even sheet of light across a long facade, a garden wall or a wide hedge line instead of leaving bright scallops with dark gaps between them. This is the six LED board at 540 lumens and 84 CRI, the middle option, enough to carry a standard wall without thinning out toward the top. The ZD designation adds zoning and dimming, though both run through a Luxor controller, so the premium only pays off inside a Luxor system. ProAim adjustability lets you set the aiming angle by hand and have it hold, which matters on a leaning wall or a sloped bed. Die-cast aluminum with two layers of marine grade anodization under bronze metallic powder coat. Ships with the LED board, a ten foot lead, a lock ring and a spike. A low voltage transformer is required and sold separately.



View full details

Specifications

Finish Bronze Metallic
Length 4-1/2 in.
Mounting Ground Mount
Height 6-1/2 in.
Integrated/Drop-in Integrated
Housing Material Die-Cast Aluminum
Dimmable Yes
Type Wall Wash
Number of Lamps 6 Lamps
Lead Wire Length 10 ft.
Volt-Ampere Rating 9.3 VA
Item Light
Series LC Series
Voltage Rating 10V - 15V
Specifications Aluminum Housing
Wire Size 18 AWG
Dimensions 6-1/2 in. x 3 in. x 4-1/2 in.
Wattage 7.7W
Lighting Technology LED
Color Rendering Index (CRI) 84
Light Color Warm White
Light Output 540 Lumens
Color Temperature 2700K
Average Life 50,000 hrs.
Beam Angle 90 Degree
Wire Length 120 in.
Regulated No
Brand Name FX
