LCZD9LEDSFB FX Luminaire LC ZD 9LED Wall Wash 3000K Flat Black

LCZD9LEDSFB FX Luminaire LC ZD 9LED Wall Wash 3000K Flat Black

FX
LCZD9LEDSFB
$289.99
$289.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Mounting
Ground Mount
Housing Material
Aluminum, Brass
Dimmable
Yes
Includes
Led Board, 10 Ft. Lead Wire, Lock Ring & Spike
Light Output
810 Lumens
Average Life
72, 000 hrs.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

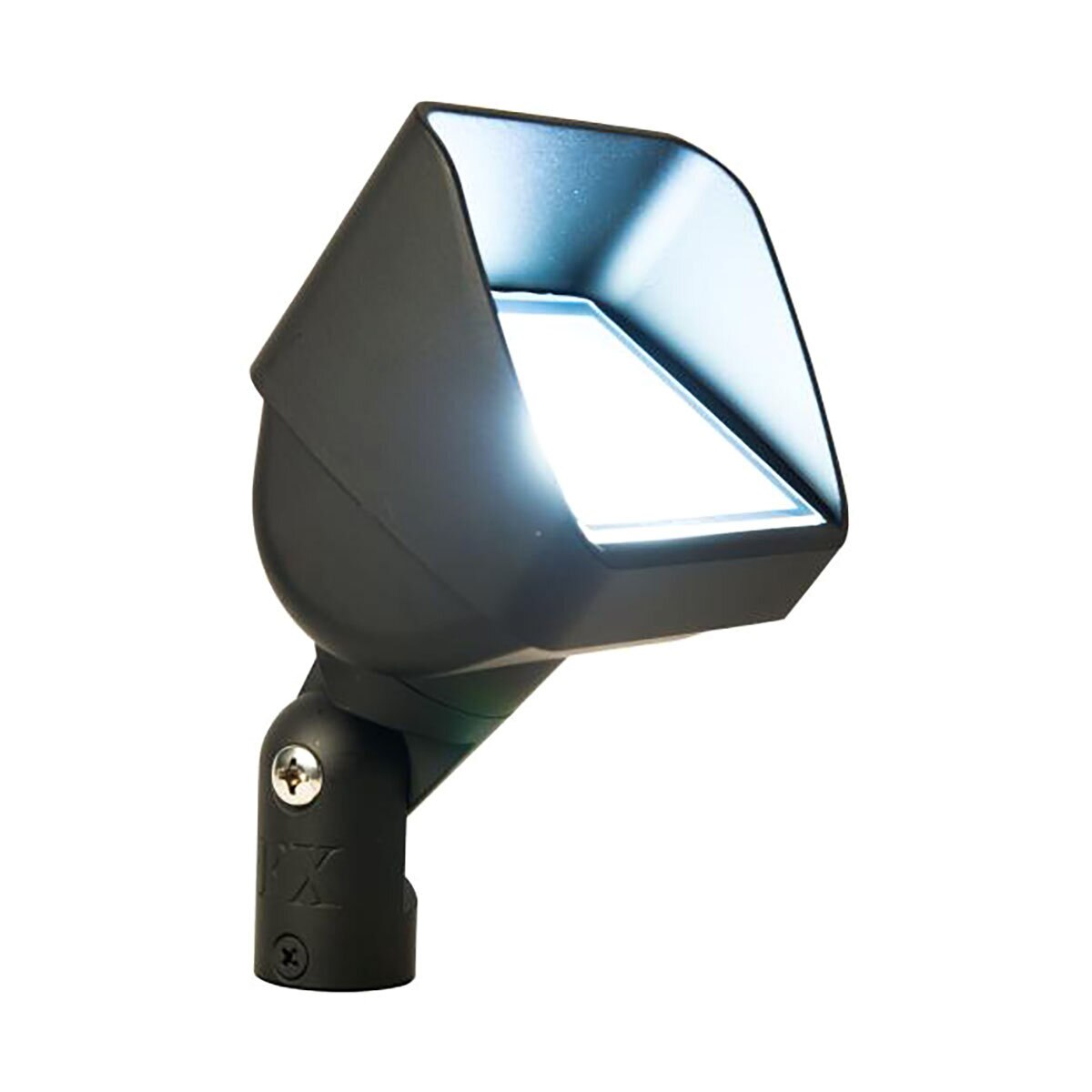

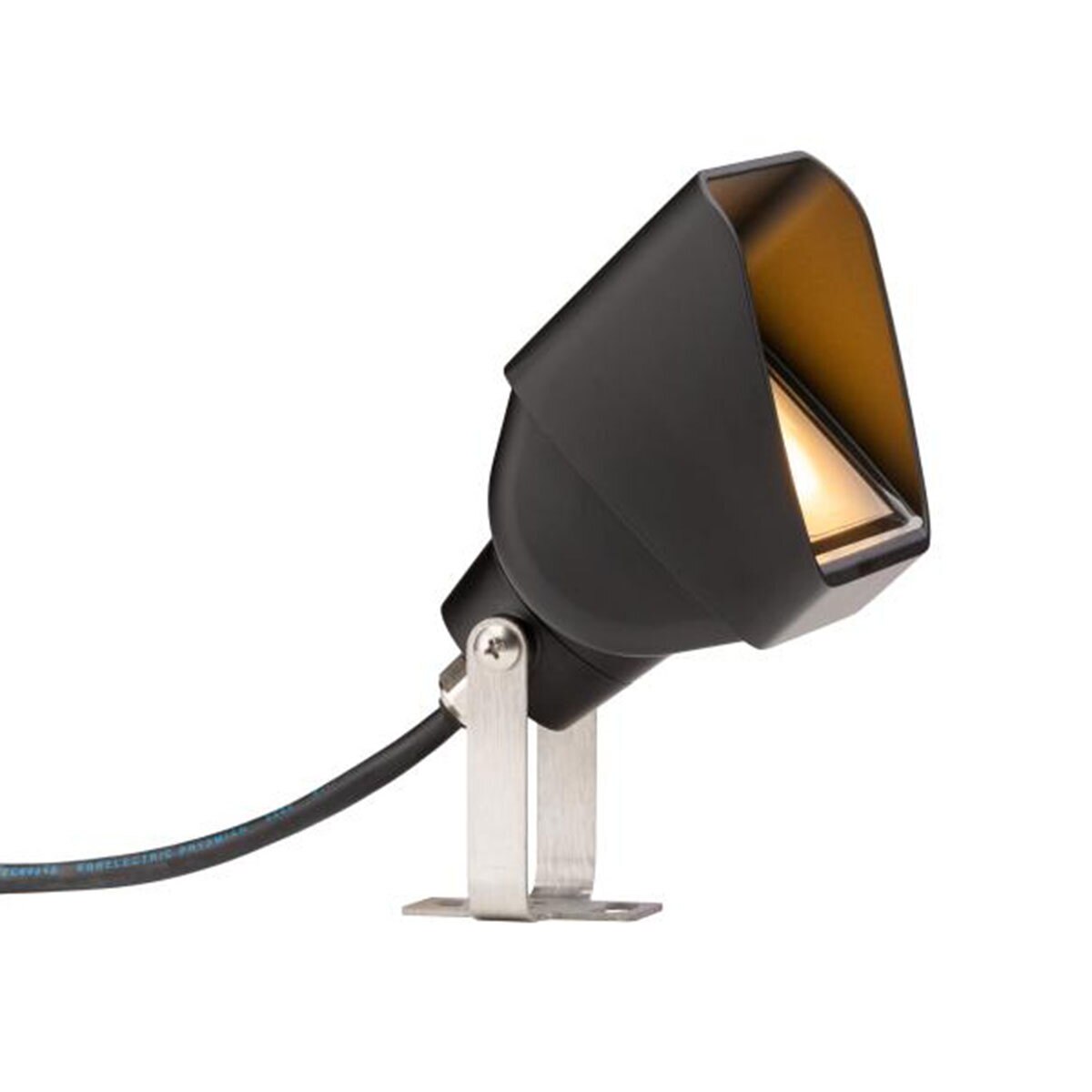

The LC exists for the walls a narrow beam cannot cover. Its 90 degree spread lays an even sheet of light across a long facade or hedge line rather than leaving bright scallops with dark gaps between. This is the nine LED board at 810 lumens, the brightest in the line, which is what a tall wall needs when smaller boards run thin toward the top. Note the color temperature here is 3000K rather than the 2700K most FX fixtures ship with, a slightly cooler and cleaner tone that suits gray stone, concrete and modern architecture better than a warm amber cast would. The ZD designation adds zoning and dimming, both running through a Luxor controller. ProAim adjustability lets you set the aiming angle by hand and have it hold. Die-cast aluminum in flat black, for installs where the fixture should disappear. Ships with the LED board, a ten foot lead, a lock ring and a spike. A low voltage transformer is required and sold separately.



View full details

Specifications

Finish Flat Black
Mounting Ground Mount
Height 6-1/2 in.
Integrated/Drop-in Integrated
Housing Material Aluminum, Brass
Dimmable Yes
Type Wall Wash
Includes Led Board, 10 Ft. Lead Wire, Lock Ring & Spike
Number of Lamps 9 Lamps
Lead Wire Length 10 ft.
Volt-Ampere Rating 12.2 VA
Item Light
Series LC Series
Voltage Rating 10V - 15V
Wire Size 18 AWG
Dimensions 3 in. x 4-1/2 in. x 6-1/2 in.
Wattage 11.1W
Lighting Technology LED
Color Rendering Index (CRI) 84
Light Color Warm White
Light Output 810 Lumens
Color Temperature 3000K
Average Life 72, 000 hrs.
Wire Length 10 ft.
Regulated No
Brand Name FX
