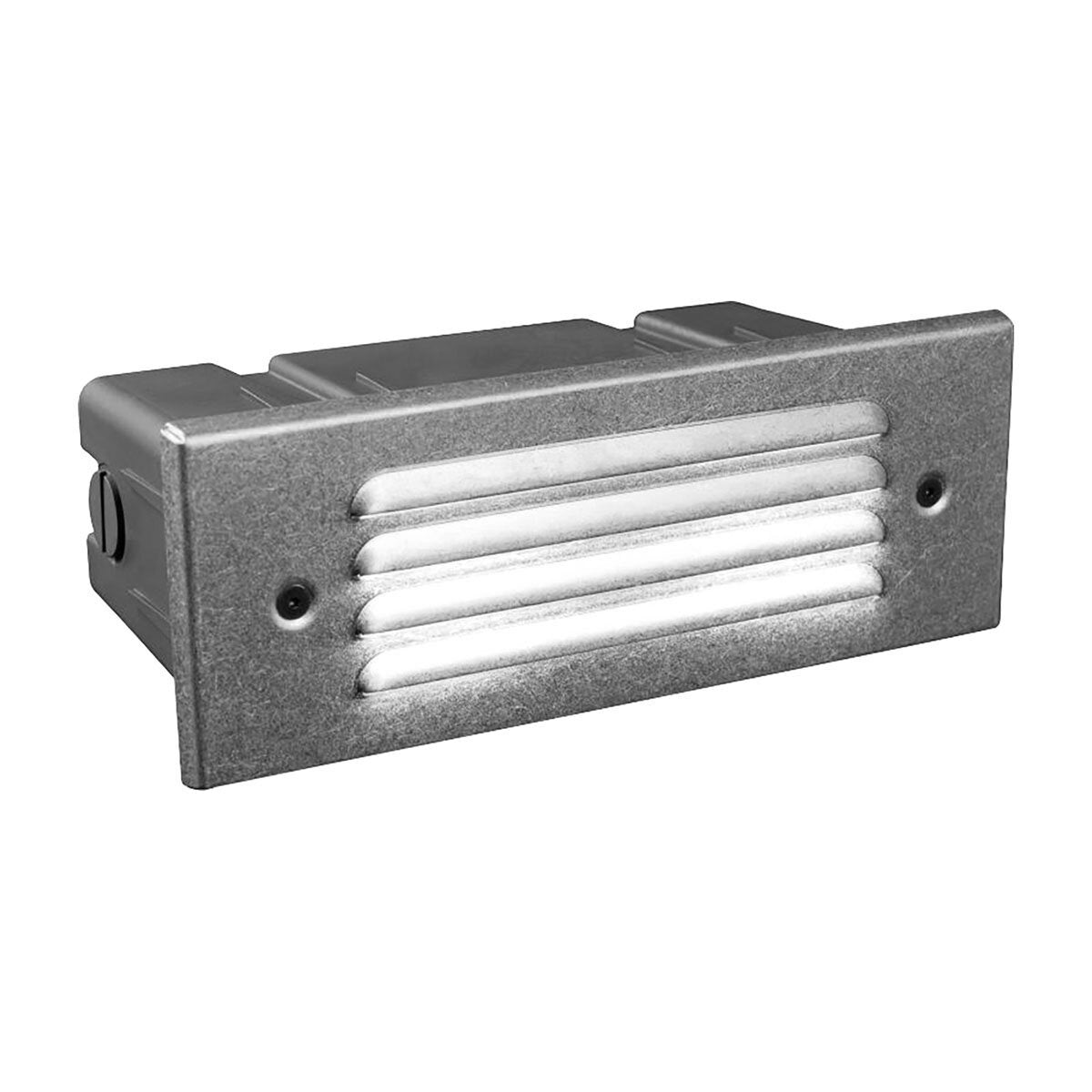

FX Luminaire LM ZD Louver Wall & Step Light, 2LED 2700K, Weathered Iron

FX Luminaire LM ZD Louver Wall & Step Light, 2LED 2700K, Weathered Iron

FX
LMZD2LEDWI
$269.99
$269.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Dimmable
Yes
Number of Lamps
2
Average Life
40,001-60,000 hrs
Housing Material
Aluminum
Specifications
Compatible w/ Luxor Technology
Beam Angle
Very Wide Flood (91°-120°)

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

The LM is a louvered wall light meant to be set into the wall beside a stairway. The louver blades cut the source out of sight and push light down onto the treads, so people see the steps instead of the fixture. Output is deliberately low for that reason, roughly what a 20 watt halogen put on the ground, and the right way to judge it is footcandles at the tread rather than total lumens.

Weathered iron is a darker, aged finish that recedes into stone and masonry rather than drawing the eye. FX builds the LM and the smaller CP to the same design language, so the two can be mixed through a project and still read as one system.

  • Two integrated LEDs, 20 watt halogen equivalent
  • Louver blades direct light downward and hide the source
  • 2700K warm white, 87 CRI
  • 10 to 15V input, 4.5 VA per fixture
  • ZD board for zoning and dimming with a Luxor controller
  • Weathered iron finish
  • 10 ft lead wire, 18 AWG
  • 50,000 hour average L70 life
View full details

Specifications

Finish Weathered Iron
Integrated/Drop-in Integrated
Height 3-1/2 in.
Housing Material Aluminum
Length 9 in.
Dimmable Yes
Mounting Wall Mount
Item Light Fixtures
Type Deck & Step
Series LM Series
Voltage Rating 10V-15V
Amperage Rating 1 Amps
Specifications Compatible w/ Luxor Technology
Bulb Shape T3
Wire Size 18 AWG
Equivalent Wattage 30W
Dimensions 9 in. x 3-1/2 in. x 2-3/8 in.
Lamp Type GU5.3
Lamp Base Integrated
Number of Lamps 2
Wattage 4.2W
Lighting Technology LED
Color Rendering Index (CRI) 80-89
Light Color Warm White
Light Output 14 Lumens
Efficiency 76-100 lm/W
Color Temperature 2700K
Average Life 40,001-60,000 hrs
Beam Angle Very Wide Flood (91°-120°)
Wire Length 10 ft.
Socket Type Integrated
Lead Wire Length 10 ft.
Volt-Ampere Rating 4.5VA
Regulated No
Brand Name FX
