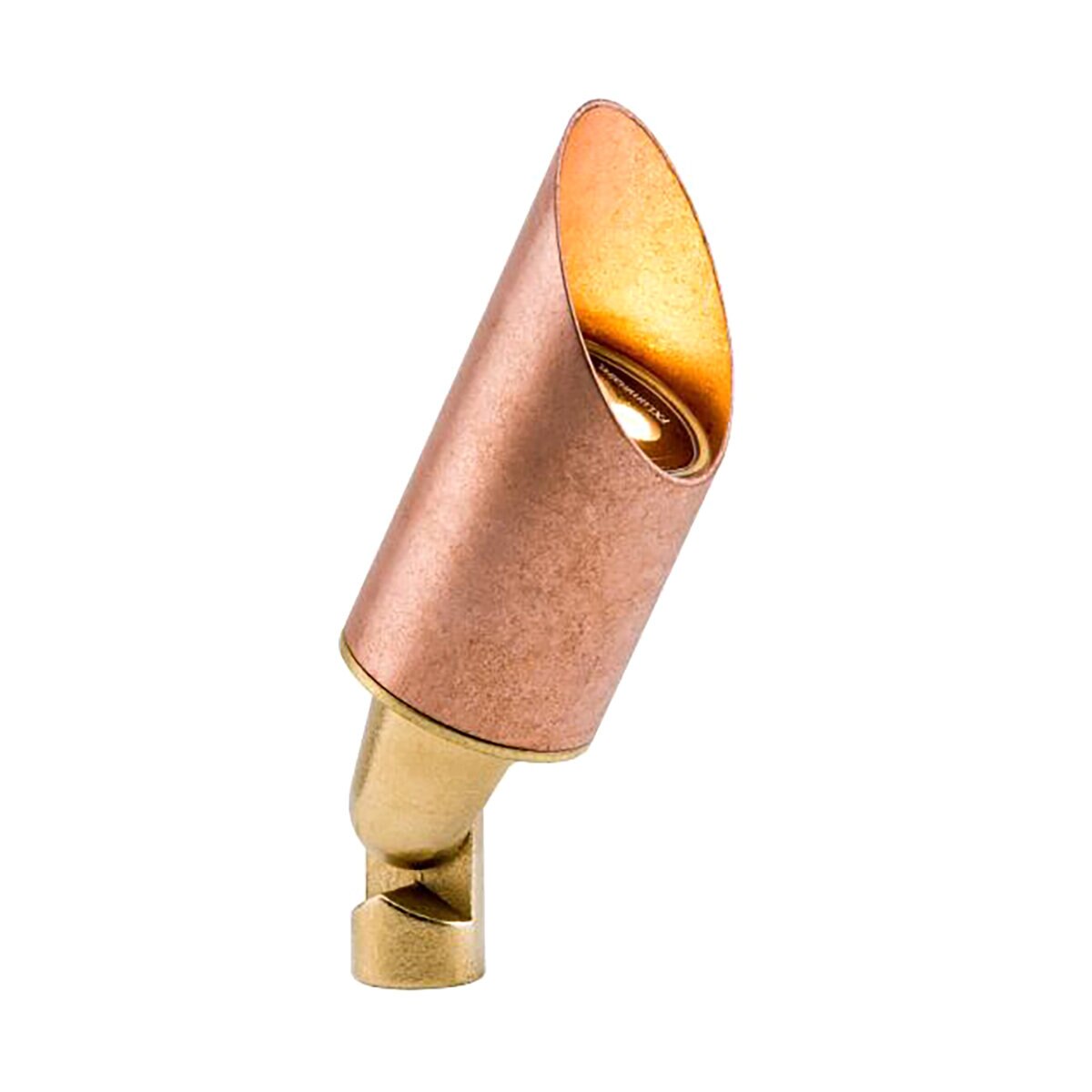

FX Luminaire LR Up Light, Long Shroud, Copper & Brass, Copper, No Lamp

FX Luminaire LR Up Light, Long Shroud, Copper & Brass, Copper, No Lamp

LRNLLSCU
Regular price $159.99
Regular price Sale price $159.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Mounting
Ground Mount
Dimmable
Yes
Voltage Rating
10V - 15V
Average Life
40,000 hrs.
Bulb Shape
MR16
Housing Material
Brass

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

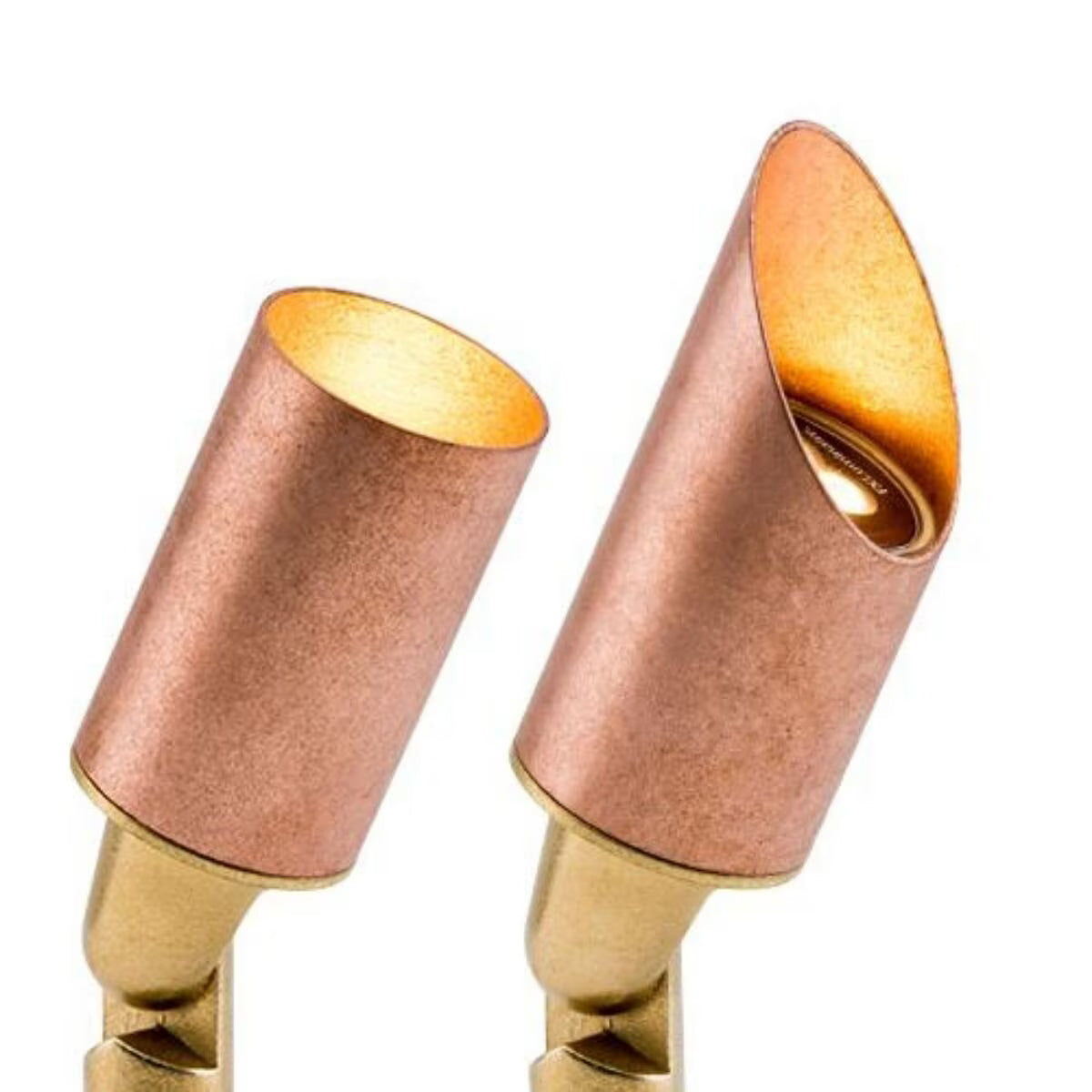

The LR is FX's copper and brass up light, made for sites where salt air and irrigation runoff chew through aluminium. The shroud is extruded C110 copper and the long shroud version sets the lamp deeper, cutting glare when the fixture sits near a walkway or a seating area.

The socket is MR-16 GU5.3 with retaining clips, so the lamp stays seated through vibration and can be changed without replacing the fixture. ProAim holds the aim once set.

This fixture does not include a lamp. FX's LED20W gives 240 lumens at 4.3 VA and the LED35W gives 335 at 5.4 VA. For Luxor zoning and dimming, use a ZD MR-16 lamp, since the control sits in the lamp rather than the fixture.

  • Copper and brass construction, C110 extruded copper shroud
  • Long shroud, 9 in. tall by 2.5 in. diameter
  • MR-16 GU5.3 socket with retaining clips, lamp sold separately
  • ProAim adjustable aiming
  • 10 to 15V input
  • UL-1838 and UL-379 compliant, IP43 rated
  • 10 in. slotted installation spike included
  • Colour temperature filters included
View full details

Specifications

Finish Cooper
Mounting Ground Mount
Height 9 in.
Integrated/Drop-in Drop-In
Housing Material Brass
Dimmable Yes
Type Accent & Up
Number of Lamps No Lamp
Lead Wire Length 120 in.
Item Light
Series LR Series
Voltage Rating 10V - 15V
Bulb Shape MR16
Wire Size 18 AWG
Dimensions 2-4/5 in. x 2-1/2 in.
Average Life 40,000 hrs.
Wire Length 120 in.
Regulated No
Brand Name FX
