FX Luminaire AZD3LED18RASB 18 in. Aluminum Riser, Luxor ZD 3LED, Sedona Brown

FX Luminaire AZD3LED18RASB 18 in. Aluminum Riser, Luxor ZD 3LED, Sedona Brown

FX
AZD3LED18RASB
$189.99
$189.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Housing Material
Aluminum
Integrated/Drop-in
Integrated
Dimmable
Dimmable
Type
Path & Area
Light Output
166 Lumens
Average Life
72, 000 hrs.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

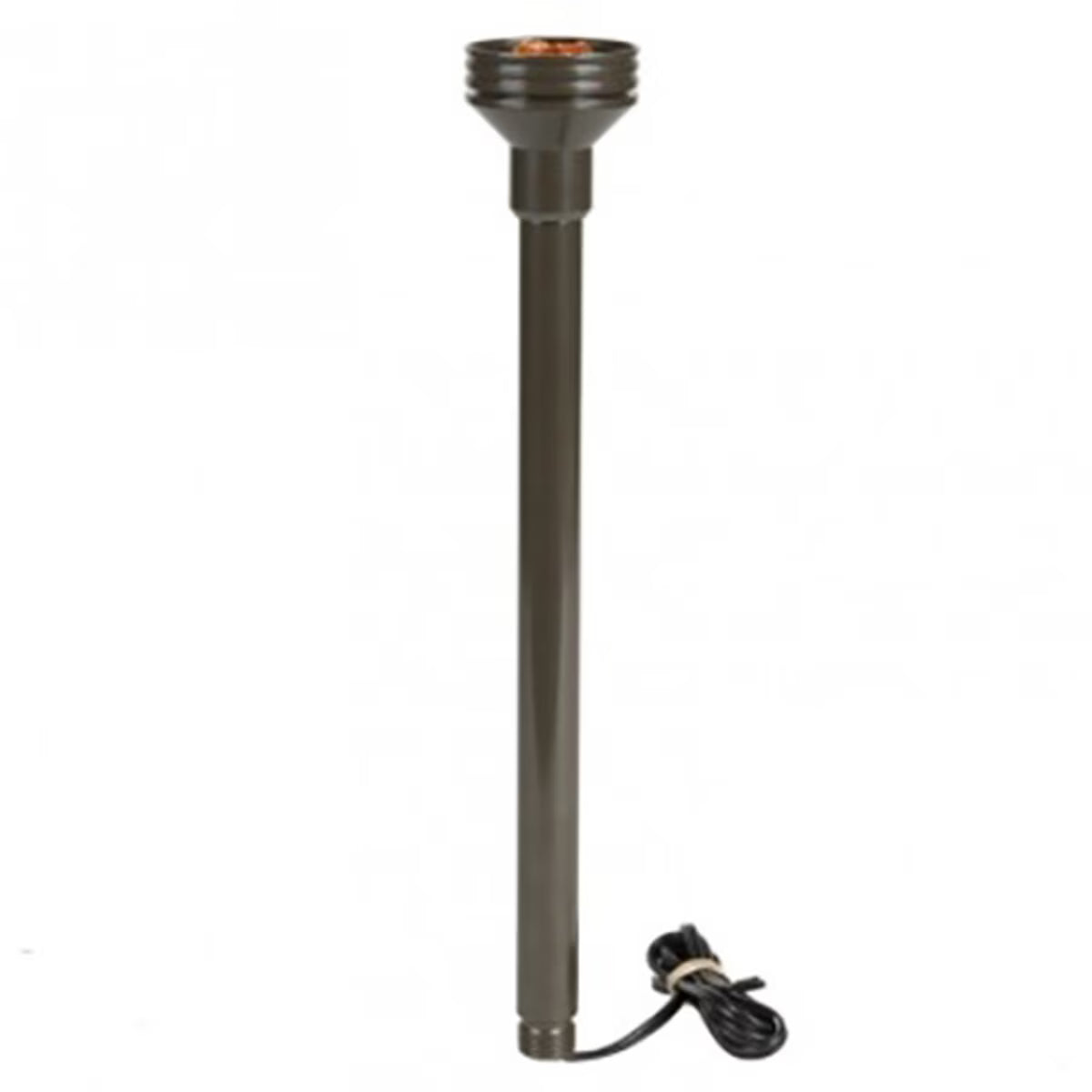

This is the riser half of an FX Luminaire aluminum path light, an 18 inch Sedona Brown riser with the 3LED board built in and the ZD option for Luxor zoning and dimming. On FX path lights the light engine lives in the riser rather than the top, so this assembly supplies the LEDs, the lead and the ground stake, and it needs a compatible aluminum top assembly such as the PL or DM threaded on to finish the fixture. The 18 inch height lifts the hat above low shrubs and groundcover along walkways and beds, and the ZD board lets each path light be zoned and dimmed from a Luxor controller. The 3LED board draws 4.2 watts at 4.5 VA on 10V to 15V in a warm 2700K, carries a rated life of 72,000 hours, and comes with a 10 foot lead. Light output and beam depend on the top assembly it is paired with.

View full details

Specifications

Finish Sedona Brown
Integrated/Drop-in Integrated
Item Riser
Type Path & Area
Series TM
Voltage Rating 10V - 15V
Bulb Shape T5
Wire Size 18 AWG
Equivalent Wattage 30W
Length 18 in.
Dimensions 18 in. x 4 in. x 4 in.
Height 18 in.
Dimmable Dimmable
Number of Lamps 1
Wattage 4.2W
Lighting Technology LED
Color Rendering Index (CRI) 85
Light Color Warm White
Light Output 166 Lumens
Efficiency 24.5 Lumens/W
Color Temperature 2700K
Average Life 72, 000 hrs.
Beam Angle Flood (41°-60°)
Wire Length 10 ft.
Maximum Overall Length 18 in.
Maximum Overall Diameter 4 in.
Bulb Spacing 12 in.
Material Aluminum
Includes Mounting Hardware
Housing Material Aluminum
Regulated No
Brand Name FX
