FX Luminaire MDZD35WFLBZ MD Down Light, Luxor ZD MR-16, 5.4VA, Bronze Metallic

FX Luminaire MDZD35WFLBZ MD Down Light, Luxor ZD MR-16, 5.4VA, Bronze Metallic

FX
MDZD35WFLBZ
$184.99
$184.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Dimmable
Yes
Average Life
40,000 hrs.
Housing Material
Aluminum
Specifications
Compatible w/ Luxor Technology
Includes
Lock Screw
Beam Angle
Flood (41°-60°)

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

We accept returns within 14 days from your delivery date.

All returns are subject to a restocking fee. The restocking fee varies by product category and will be deducted from the refund amount.

Items must be unused, uninstalled, and returned in their original packaging. Products that show signs of use, installation, or damage are not eligible for return.

Return shipping costs are the responsibility of the customer unless the item arrives defective or incorrect. Original shipping charges are non-refundable.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

If you’re unsure about fit, compatibility, or application, contact us prior to purchasing.

Description

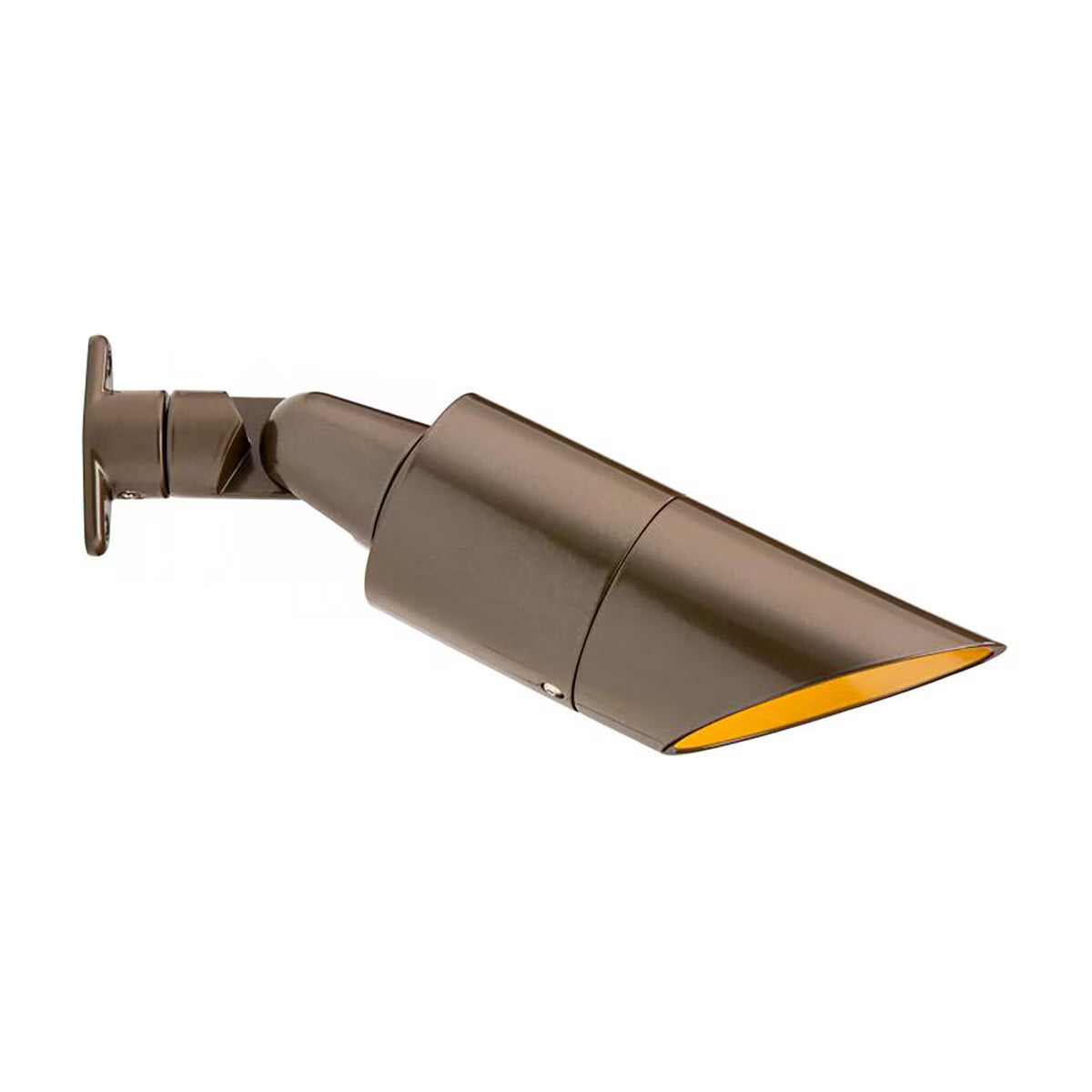

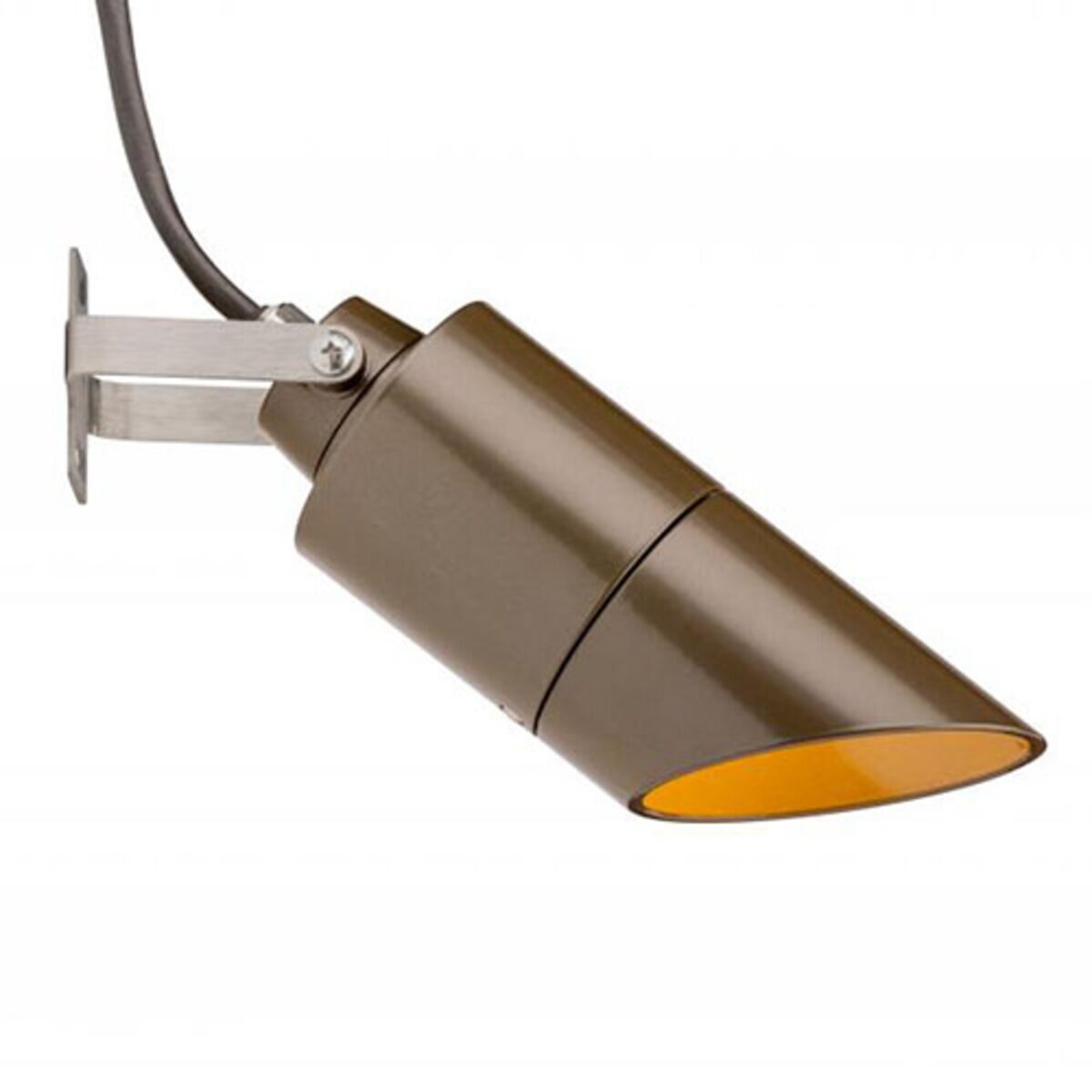

This FX Luminaire MD down light is set up for Luxor systems, shipping with FX's ZD MR-16 LED lamp so each fixture can be put on its own zone and dimmed from the Luxor controller, which suits jobs where the patio, the steps and the garden beds below each need a different level of light through the evening. The lamp is a 35 watt halogen equivalent in 2700K warm white with a 35 degree flood beam, delivering 335 to 480 lumens on 5.4 VA, and because the ZD lamp dims through Luxor rather than a standard phase dimmer, it should go on a Luxor capable transformer. The die-cast aluminum body mounts on walls, eaves or trees, and the angled shroud hides the lamp so people below see lit ground rather than glare. ProAim lets the head be aimed after mounting and locked in position, and the Bronze Metallic finish over a marine grade anodized base blends with wood, stone and darker trim.

View full details

Specifications

Finish Bronze Metallic
Length 2-8/9 in.
Mounting Wall Mount
Height 9-1/2 in.
Housing Material Aluminum
Integrated/Drop-in Integrated
Item Light
Type Down
Series MD Series
Voltage Rating 10V - 15V
Specifications Compatible w/ Luxor Technology
Bulb Shape MR16
Wire Size 18 AWG
Equivalent Wattage 35W
Dimensions 10-1/2 in. x 2-8/9 in.
Lamp Type MR16
Dimmable Yes
Number of Lamps 1 Lamp
Wattage 5W
Lighting Technology LED
Color Rendering Index (CRI) 80
Light Color Warm White
Light Output <600 lm
Efficiency 65 Lumens/W
Color Temperature 2700K
Average Life 40,000 hrs.
Beam Angle Flood (41°-60°)
Wire Length 16 in.
Maximum Overall Length 2-8/9 in.
Maximum Overall Diameter 3 in.
Socket Type GU5.3
Jacket Color Black
Includes Lock Screw
Lead Wire Length 10 ft.
Volt-Ampere Rating 5.4VA
Regulated No
Brand Name FX
