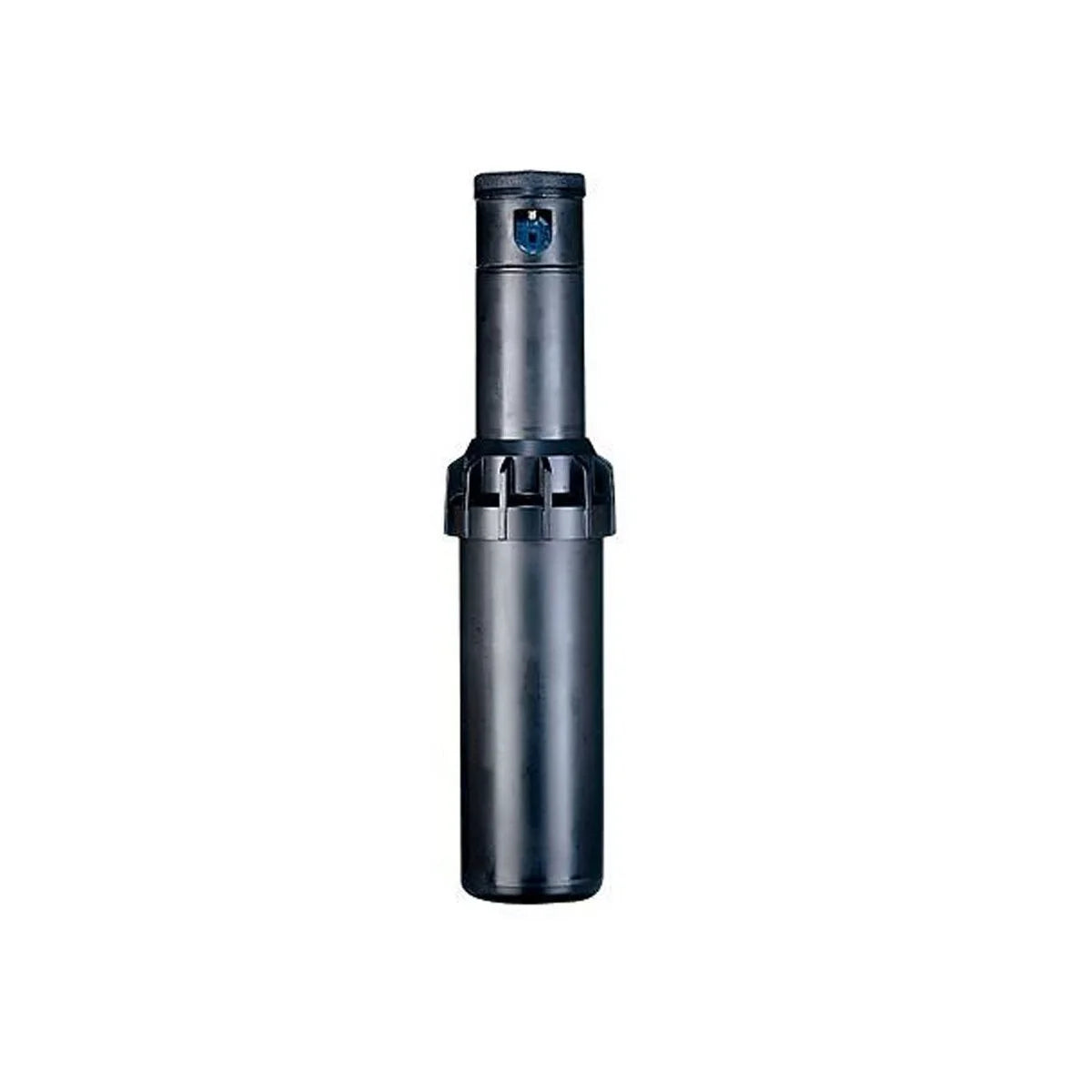

Hunter I-20 Adjustable Rotor 4 in. Riser No Check Valve | I2004NCV
Hunter I-20 Adjustable Rotor 4 in. Riser No Check Valve | I2004NCV
SKU:
I2004NCV
Regular price
$22.20
Regular price
Sale price
$22.20
Unit price
/
per
Couldn't load pickup availability
- Factory installed rubber cover for superior protection
- Quick check arc mechanism makes arc adjust fast and easy
- Automatic arc return, this patented feature returns the turret to the original arc regardless of where it is turned, This ensures vandal protection in any environment
- Non-strippable drive: the patented, non-strippable, vandal...
- Factory installed rubber cover for superior protection
- Quick check arc mechanism makes arc adjust fast and easy
- Automatic arc return, this patented feature returns the turret to the original arc regardless of where it is turned, This ensures vandal protection in any environment
- Non-strippable drive: the patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage
- Part- and full-circle in one model: Patented non-reversing 360 for part- and full-circle in one model, from 50 - 360 deg
- Flostop control: FloStop closes the flow of water from individual sprinkler heads while the system is running. This is ideal for changing nozzles or turning off specific heads during maintenance and construction
- Without check valve
Key Features
Key Features
Item: Rotor
Body Height: 7-1/8 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 17 ft. - 46 ft.
Inlet Connection: 3/4 in. FNPT
Adjustable Rotation Angle: 50 Degree - 360 Degree
Pop-Up Height: 4 in. Riser
Full-Circle/Part-Circle: Full Circle & Part Circle
Case Material: Plastic
Type: Sprinkler
Series: I-20 Series
Check Valve: w/o Check Valve
Minimum Flow Rate: 0.36 GPM
Height: 11-1/8 in.
Maximum Flow Rate: 14.8 GPM
Riser Material: Plastic
Body Material: Plastic
Weight: 0.73 lb.
Color: Black
Exposed Diameter: 1-3/4 in.
Maximum Operating Pressure: 100 PSI
Regulated: No
Brand Name: Hunter
