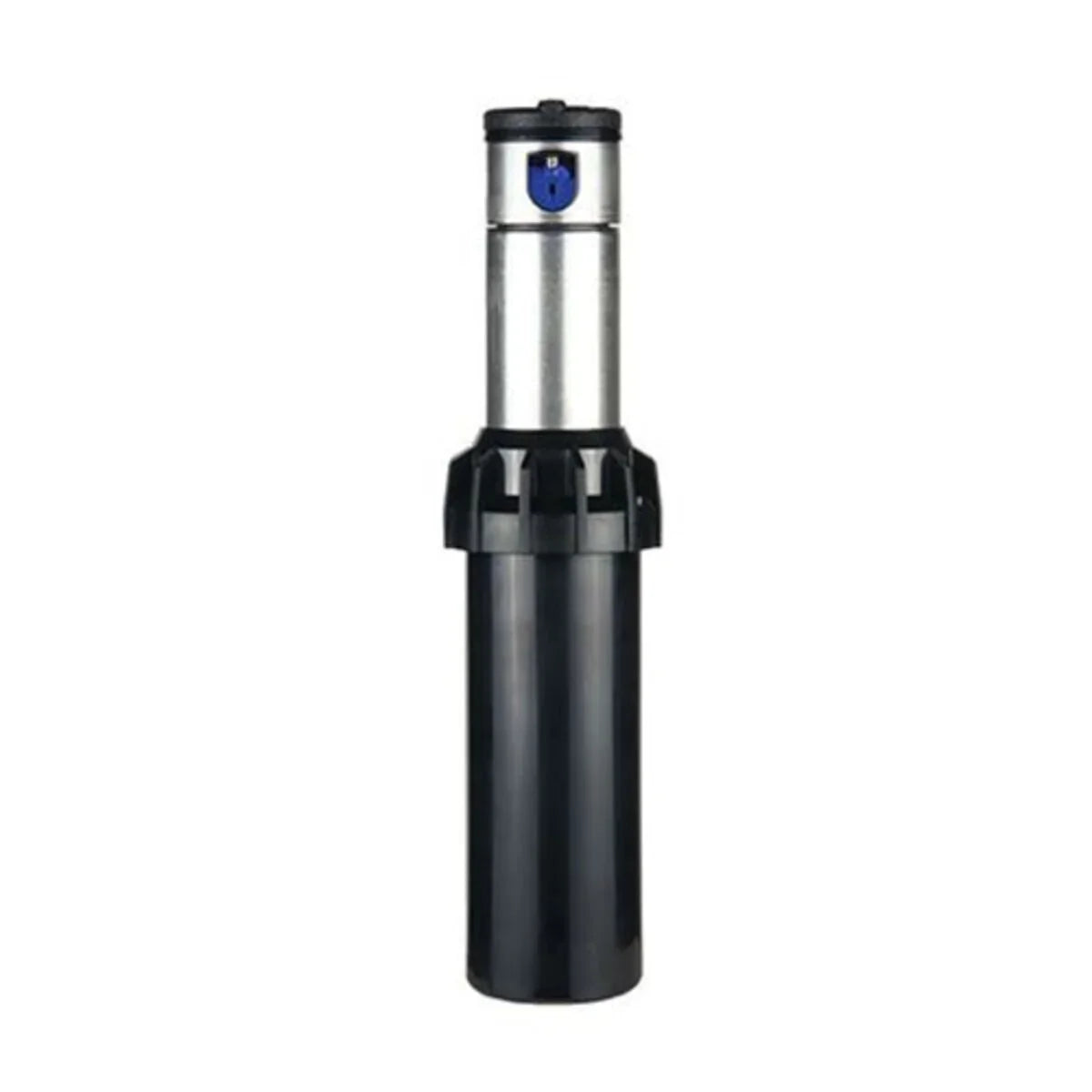

Hunter I-20 Adjustable Stainless Steel Rotor 4 in. Riser with Check Valve and 2.5 Nozzle | I2004SS25
Hunter I-20 Adjustable Stainless Steel Rotor 4 in. Riser with Check Valve and 2.5 Nozzle | I2004SS25
SKU:
I2004SS25
Regular price
$31.22
Regular price
Sale price
$31.22
Unit price
/
per
Couldn't load pickup availability
- Factory installed rubber cover for superior protection
- Quick check arc mechanism makes arc adjust fast and easy
- Automatic arc return, this patented feature returns the turret to the original arc regardless of where it is turned, This ensures vandal protection in any environment
- Non-strippable drive: the patented, non-strippable, vandal...
- Factory installed rubber cover for superior protection
- Quick check arc mechanism makes arc adjust fast and easy
- Automatic arc return, this patented feature returns the turret to the original arc regardless of where it is turned, This ensures vandal protection in any environment
- Non-strippable drive: the patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage
- Headed and slotted set screw, use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed
Key Features
Key Features
Item: Rotor
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 17 ft. - 46 ft.
Inlet Connection: 3/4 in. Fnpt
Adjustable Rotation Angle: 50 Degree - 360 Degree
Pop-Up Height: 4 in. Riser
Full-Circle/Part-Circle: Full Circle & Part Circle
Case Material: Plastic, Stainless Steel
Series: I-20 Series
Check Valve: Yes
Minimum Flow Rate: 0.36 GPM
Height: 7-1/8 in.
Maximum Flow Rate: 14.8 GPM
Color: Black, Stainless Steel
Exposed Diameter: 1-3/4 in.
Maximum Operating Pressure: 100 PSI
Regulated: No
Brand Name: Hunter
