Hunter I-20 Adjustable Stainless Steel Rotor 6 in. Riser w/ Check Valve | I2006SS

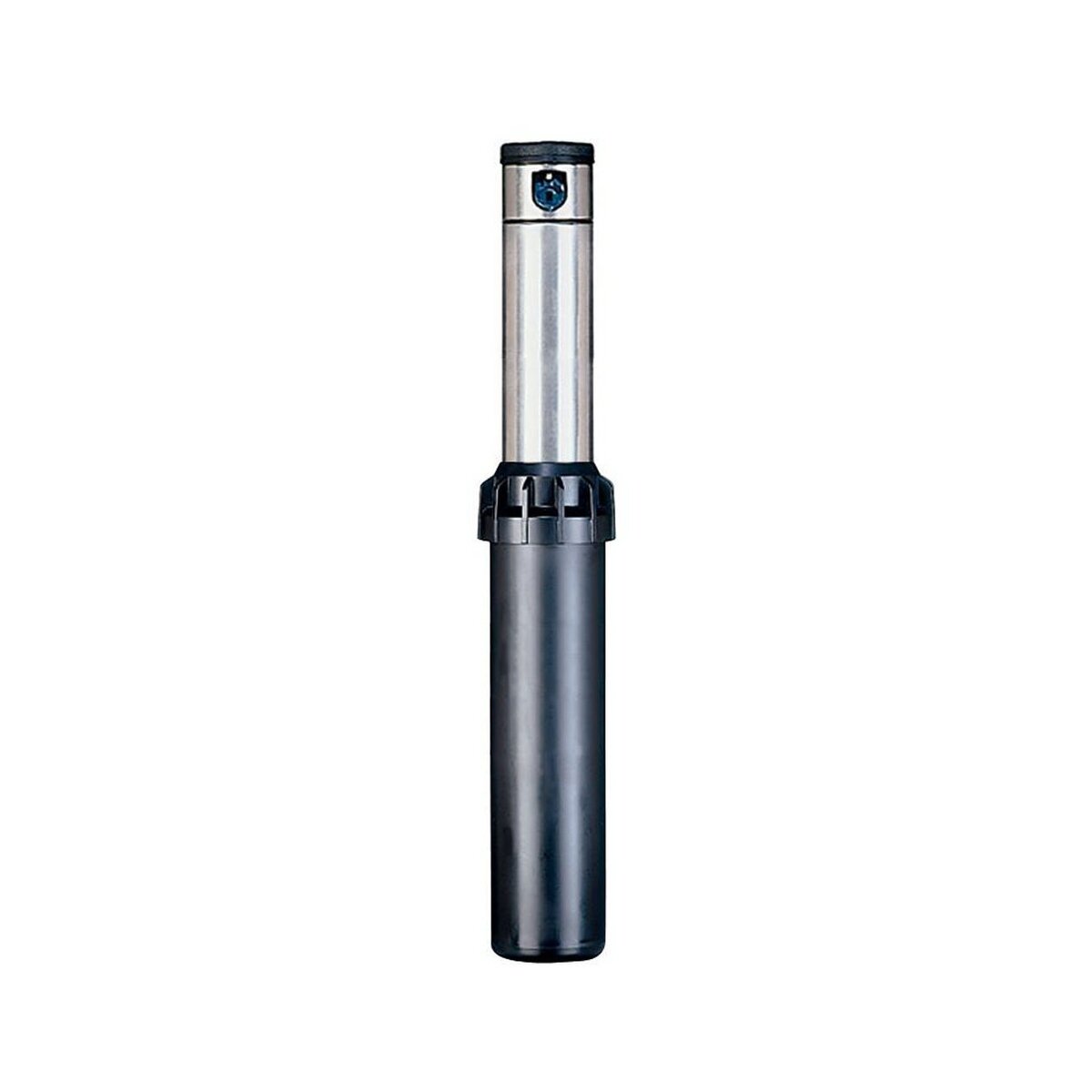

Hunter I-20 Adjustable Stainless Steel Rotor 6 in. Riser w/ Check Valve | I2006SS
SKU:
I2006SS
Regular price
$49.93
Regular price
Sale price
$49.93
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Factory installed rubber cover for superior protection
- Quick check arc mechanism makes arc adjust fast and easy
- Automatic arc return, this patented feature returns the turret to the original arc regardless of where it is turned, This ensures vandal protection in any environment
- Non-strippable drive: the patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage
- Headed and slotted set screw, use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed
- Flostop control: FloStop closes the flow of water from individual sprinkler heads while the system is running. This is ideal for changing nozzles or turning off specific heads during maintenance and construction
With 34 nozzle choices, a 17 ft. to 46 ft. radius, and 6 body choices, the I-20 is an indispensable rotor. Whether you've got a small area, sandy soil, or a mix of shrubs and grass, the I-20 is ready to water with efficiency and reliability. Recent improvements include automatic arc return, non-reversing 360, from 50 to 360 degrees, and a non-strippable, vandal-proof drive mechanism that prevents gear stripping and saves repair costs. Adding FloStop control, easy through-the-top arc adjustment, and a standard drain-check valve all equate to a rotor that stands second-to-none in its class.
Key Features
Key Features
Item: Rotor
Body Height: 9-7/8 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 17 ft. - 46 ft.
Inlet Connection: 3/4 in. FNPT
Adjustable Rotation Angle: 50 Degree - 360 Degree
Pop-Up Height: 6 in. Riser
Full-Circle/Part-Circle: Full Circle & Part Circle
Case Material: Plastic & Stainless Steel
Type: Pop-Up
Series: I-20 Series
Check Valve: Yes
Minimum Flow Rate: 0.36 GPM
Height: 15-7/8 in.
Maximum Flow Rate: 14.8 GPM
Riser Material: Stainless Steel
Body Material: Plastic
Weight: 1.2 lb.
Color: Black, Silver
Exposed Diameter: 1-3/4 in.
Maximum Operating Pressure: 100 PSI
Regulated: No
Brand Name: Hunter
