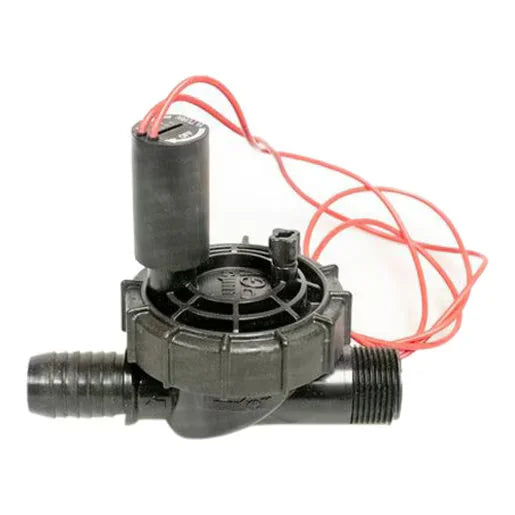

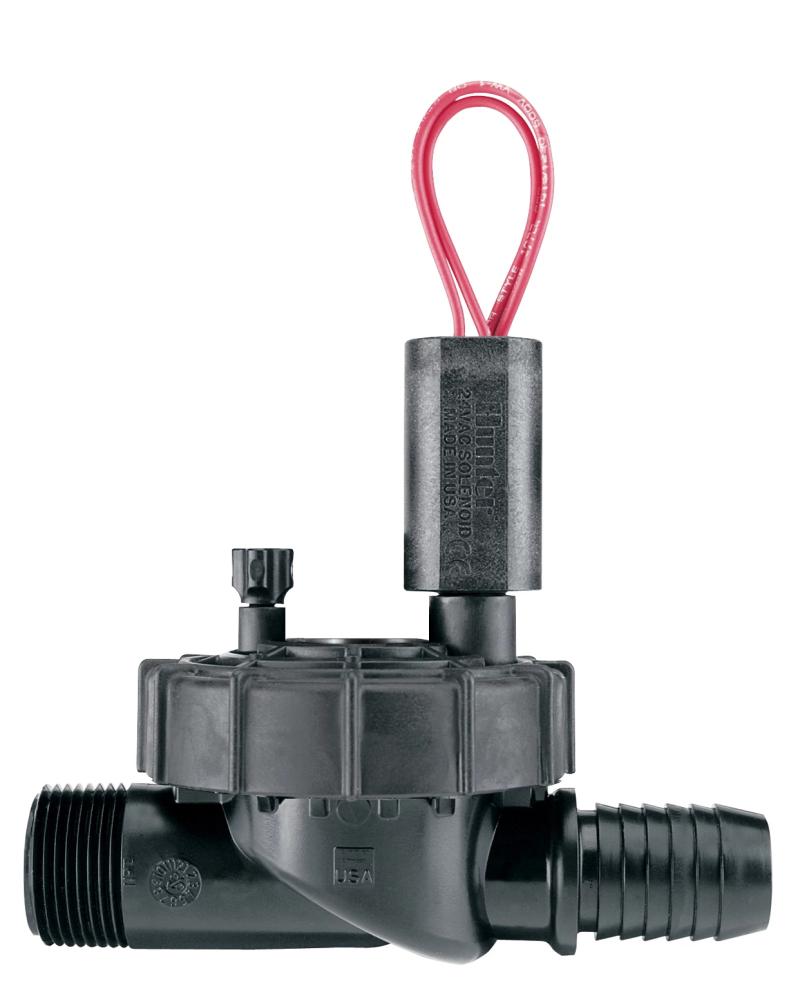

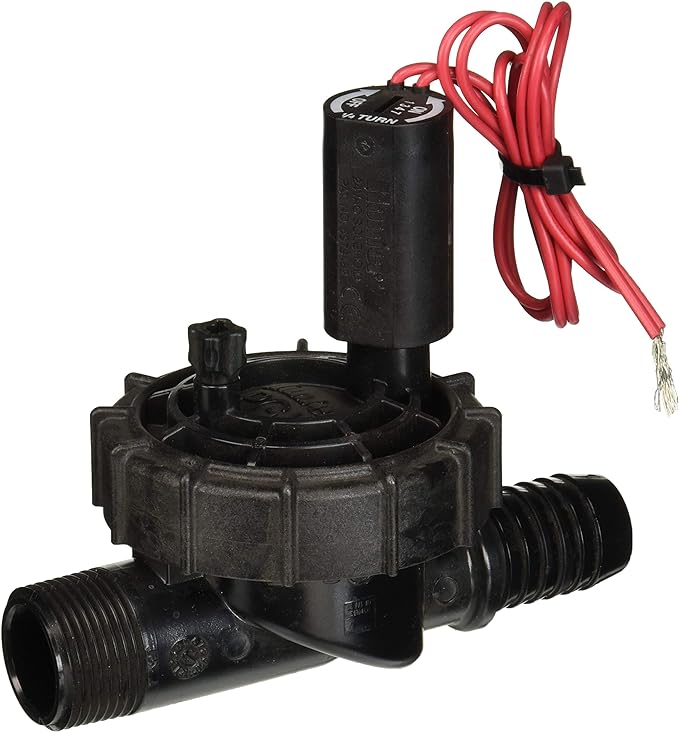

Hunter PGV Globe Jar Top Valve Plastic 1 in. MIPT x Barb | PGV100JTMB
Hunter PGV Globe Jar Top Valve Plastic 1 in. MIPT x Barb | PGV100JTMB
SKU:
PGV100JTMB
Regular price
$20.61
Regular price
Sale price
$20.61
Unit price
/
per
Couldn't load pickup availability
- Double-beaded diaphragm seal design for superior leak-free performance
- Captive bonnet bolts provide hassle-free valve maintenance
- Low flow capability allows for use of Hunter's micro irrigation products
- Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone
- Accu-Sync pressure regulation
- External downstream...
- Double-beaded diaphragm seal design for superior leak-free performance
- Captive bonnet bolts provide hassle-free valve maintenance
- Low flow capability allows for use of Hunter's micro irrigation products
- Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone
- Accu-Sync pressure regulation
- External downstream manual bleed
- EZReg pressure regulator compatible
For maximum in convenience, reliability, and ease of service in a residential valve, the PGV Jar-Top is the solution. With the PGV Jar-Top, it’s possible to service a Hunter valve without using any tools. Even with this ease-of-maintenance and operational simplicity, the PGV Jar-Top still delivers quality and performance to handle the demands of any residential system. Choose from a wide range of different configurations for specific installations that vary from region to region. All models feature durable, high-grade, corrosive and UV-resistant PVC construction, glass reinforced jarring and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure.
Key Features
Key Features
Item: Valve
Connection Type: Barb
Connection Size: 1 in.
Body Material: Plastic
Type: Globe
Series: PGV Series
Solenoid Type: DC Latching Solenoid
Operating Type: Electric
Flow Control: No
InletSize: 1 in.
Height: 5-1/2 in.
Width: 4-1/2 in.
Maximum Flow Rate: 40 GPM
Voltage Rating: 24V
Outlet Size: 1 in.
Minimum Flow Rate: 0.2 GPM
Outlet Connection: Mipt
Depth: 3-1/4 in.
Pressure Rating: 20 PSI - 150 PSI
Inlet Connection: Mpt
Regulated: No
Brand Name: Hunter
