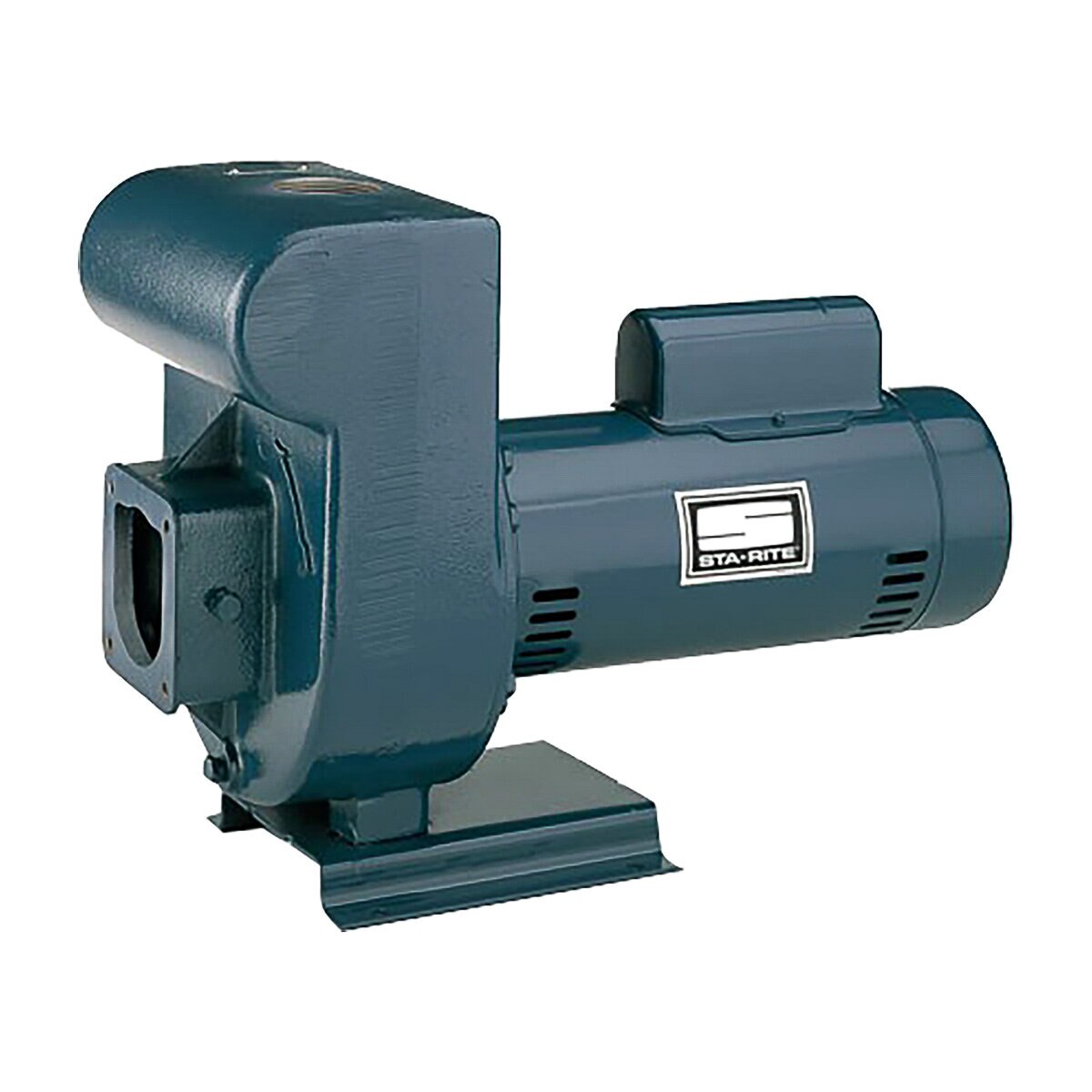

Pentair DHJ3-170 Sta-Rite High Head Centrifugal Pump D Series Cast Iron 208V - 460V 5 HP

Pentair DHJ3-170 Sta-Rite High Head Centrifugal Pump D Series Cast Iron 208V - 460V 5 HP

 DHJ3-170
Regular price $2,366.99
Regular price Sale price $2,366.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Flow Rate
150 GPM
Operating Pressure
150 PSI
Inlet/Outlet Size
2-1/2 in. x 2 in.
Weight
184 lb.
Vertical Lift
20 ft.
Includes
Pump, Manual, Installation Instructions

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

The Pentair Sta-Rite High Head Centrifugal Pump D Series 5 HP 3 Phase 208V - 460V is suitable for agriculture, lawn sprinkling, industrial applications, and more. Made with high-grade cast iron, this pump ensures durability. Its drain port allows for convenient winterizing. It also operates at a maximum output pressure of up to 60 PSI.

View full details

Specifications

Voltage Rating 460v
Phase Three Phase
HP Rating 5 HP
Series D Series
Material Cast Iron
Includes Pump, Manual, Installation Instructions
Item Pump
Type Centrifugal
Number of Stages 1
Weight 184 lb.
Dimensions 20-3/4 in. x 9-1/2 in.
Power Source Electric
Amperage Rating 7.6 Amps - 16.8 Amps
Speed 3, 450 RPM
Flow Rate 150 GPM
Wire Count 3
Inlet Connection Flange
Check Valve No
Operating Pressure 150 PSI
Inlet Size 2-1/2 in.
Outlet Size 2 in.
Outlet Connection FNPT
Cord Length 6 ft.
Vertical Lift 20 ft.
Pump Switch No Switch
Working Temperature 140 F
Regulated No
Brand Name Sta-Rite
