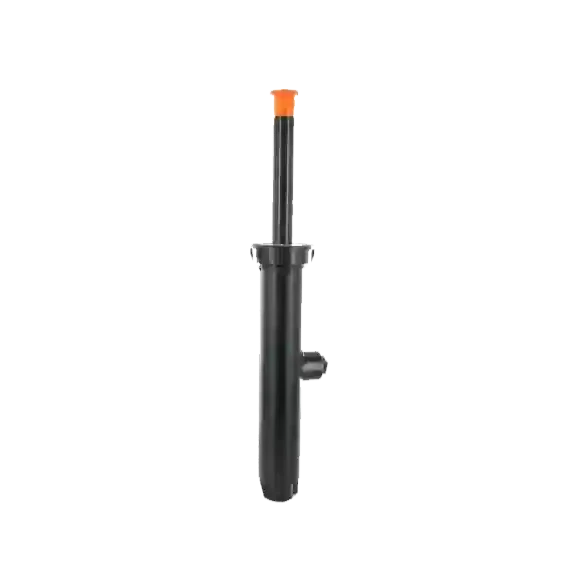

Rain Bird 1806 Series - 6-inch Pop-up Spray Head with Side Inlet - RBL1806

SPEC SHEET

TROUBLESHOOTING GUIDE

• No Nozzle Included
• 1800 Series
• Co-molded Wiper Seal: Provides unmatched resistance to grit, pressure, and the environment.
• Durable Construction: Made from UV-resistant plastic and corrosion-resistant stainless steel parts for long product life.
• Precision Controlled Flush: Clears debris at pop-down, ensuring positive stem retraction in all soil types.
• Two-Piece Ratchet Mechanism: Allows easy nozzle pattern alignment and adds durability.
• Heavy-Duty Materials: Ensures reliability and versatility.
• Five-Year Trade Warranty

Applications:

• Installed in parks and backyards globally.
• Suitable for watering shrubs, small lawns, and irregularly shaped planting areas.

Dimensions:

• Body Height: 9 3/8" (23.8 cm)
• Pop-Up Height: 6" (15.2 cm)
• Exposed Surface Diameter: 2 1/4" (5.7 cm)

Performance:

• Spacing: 3 to 24 feet (0.9 to 7.3 m)
• Pressure: 15 to 70 psi (1.0 to 4.8 bar)
• Flow-By:
  • 0 at 8 psi (0.6 bar) or greater
  • 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise

Installation:

• Options: Side or bottom inlet
• Note: Side inlet installation is not recommended in freezing climates

Additional Information:

• The 1800 Series is the #1 commercial-grade irrigation spray head brand world wide.
• Known for its reliability, heavy-duty materials, and versatility.
• Offers a broad selection of pop-up heights and nozzle combinations.
• Features Rain Bird's patented pop-up mechanism with a heavy-duty stainless steel spring for dependable retraction.
• Exclusive co-molded wiper seal offers unmatched resistance to grit, pressure, and extreme environments.
