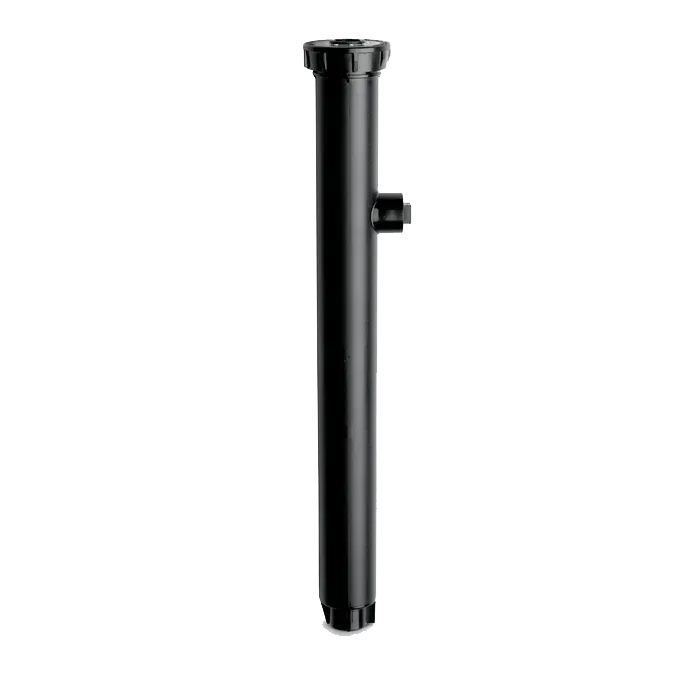

Rain Bird 1812 - 12 inch Pop-Up PRS Spray Head, 30 PSI Pressure Regulator - 1800 Series | 1812PRS
Rain Bird 1812 - 12 inch Pop-Up PRS Spray Head, 30 PSI Pressure Regulator - 1800 Series | 1812PRS
Couldn't load pickup availability
SPEC SHEET
Installed in parks and backyards worldwide, Rain Bird's 1800 Series is the top commercial-grade irrigation spray head brand. Renowned for its reliability, heavy-duty materials, and versatility, the 1800 Series ensures first-rate quality for dependable operation and long life. These...
SPEC SHEET
Installed in parks and backyards worldwide, Rain Bird's 1800 Series is the top commercial-grade irrigation spray head brand. Renowned for its reliability, heavy-duty materials, and versatility, the 1800 Series ensures first-rate quality for dependable operation and long life. These spray heads are the preferred choice for a wide variety of applications.
Features and Benefits:
- Encased plastic "cage" provides unmatched resistance to grit, pressure, and the environment.
- Pressure-activated, multi-function seal design ensures a positive seal without excess flow-by, enabling more heads to be installed on the same valve.:
- Clears debris at pop-down, ensuring positive stem retraction in all soil types.
- Provides reliable stem retraction.
- Allows easy nozzle pattern alignment without tools.
- Adds durability.
- Blocks debris from entering after flushing.
- Allows for easy nozzle installation.
- Made of UV-resistant plastic and corrosion-resistant stainless steel parts for long product life.
- All sprinkler components are removable from the top without special tools, allowing for quick and easy flushing and maintenance.
- Side and bottom inlets featured on 1806 and 1812 models.
- Note: 1806 and 1812 SAM and SAM-PRS units do not have a side inlet.
- Five-year trade warranty.
Specifications:
Spacing:
- 3 to 24 feet (0.9 to 7.3 m)
- 3 to 18 feet with standard Rain Bird Spray Head Nozzles (MPR, VAN, U-Series)
- 13 to 24 feet with Rain Bird Rotary Nozzles
Pressure: 15 to 70 psi (1.0 to 4.8 bar)
Flow-By:
- 0 at 8 psi (0.6 bar) or greater
- 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise
Installation: Side or bottom inlet
Note: Side inlet installation is not recommended in freezing climates
Applications:
- Suitable for a variety of settings including parks, backyards, and commercial landscapes.
- Ideal for watering shrubs, small lawns, and irregularly shaped planting areas.
Key Features
Key Features
Brand: Rain Bird
Pop-Up Height: 12 inch
Spacing: 3 to 24 feet (0.9 to 7.3 m)
Pressure: 15 to 70 psi (1.0 to 4.8 bar)
Side or bottom inlet
Note:
Side inlet installation not recommended in freezing climates
Additional Information
Additional Information
Why isn't there any label on the sprinkler head?
Sprinkler heads that have labels around them are distributed for display at our local retail stores. As experts in the irrigation field, our products come directly from the manufacturer's authorized distribution channels. Any sprinkler head that comes from this channel do not have a label or sticker on them. This is to keep our prices low and affordable for you.
