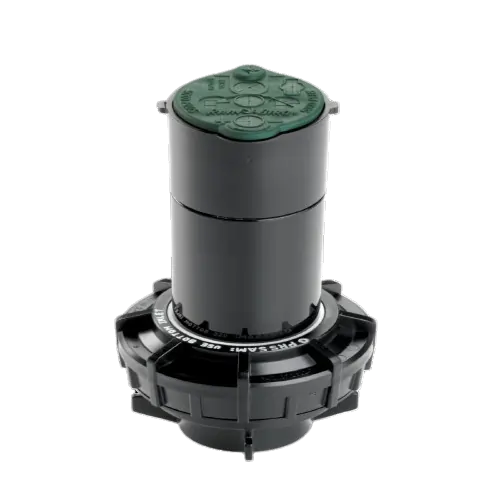

Rain Bird 3500 Part-Circle Shrub Rotor w/ SAM Check Valve | 3500SPCSAM-NLA
Rain Bird 3500 Part-Circle Shrub Rotor w/ SAM Check Valve | 3500SPCSAM-NLA
SKU:
3500SPCSAM-NLA
Regular price
$21.19
Regular price
Sale price
$21.19
Unit price
/
per
- Top-adjust arc adjustment requiring only a flat-blade screwdriver.
- Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction.
- Seal-A-Matic (SAM) check valve holds up to 7 feet (2,1m) of elevation change, to prevent puddling and erosion caused by low head drainage.
- Self Flushing...
- Top-adjust arc adjustment requiring only a flat-blade screwdriver.
- Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction.
- Seal-A-Matic (SAM) check valve holds up to 7 feet (2,1m) of elevation change, to prevent puddling and erosion caused by low head drainage.
- Self Flushing Arc Adjustment Port
The 3500 Series Rotor is an easy to use short- to mid-range 1/2 in. gear-drive rotor, offering value and convenience for residential applications. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and easy. This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain nozzles, and the convenience of reversing full- and part-circle operation (up to 360 degrees) in one unit. Plus, a nozzle-removal feature and an easily removable filter screen make maintenance a breeze.
Key Features
Key Features
Item: Rotor
Body Height: 6.6 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 1/2 in.
Operating Radius: 15 ft. - 35 ft.
Inlet Connection: 1/2 in. Fnpt
Adjustable Rotation Angle: 40 Degree - 360 Degree
Case Material: Plastic
Type: Shrub
Check Valve: Yes
Minimum Flow Rate: 0.54 GPM
Height: 6.6 in.
Maximum Flow Rate: 4.6 GPM
Color: Black
Maximum Operating Pressure: 55 PSI
Regulated: No
Brand Name: Rain Bird
