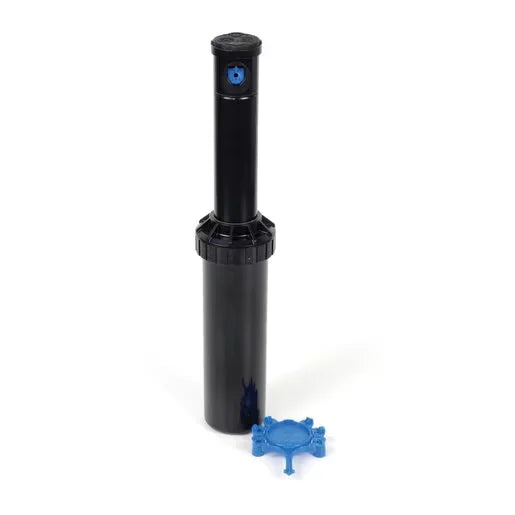

Rain Bird 3504 Part-Circle Rotor 4 in. Riser with SAM Check Valve | 3504PCS
Rain Bird 3504 Part-Circle Rotor 4 in. Riser with SAM Check Valve | 3504PCS
SKU:
3504PCS
Regular price
$19.73
Regular price
Sale price
$19.73
Unit price
/
per
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Radius adjustment screw allows up to 35% radius reduction without changing nozzles
- Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
- Self-adjusting stator does not require replacement when changing nozzles
- Water lubricated gear-drive design...
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Radius adjustment screw allows up to 35% radius reduction without changing nozzles
- Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
- Self-adjusting stator does not require replacement when changing nozzles
- Water lubricated gear-drive design for durable, reliable operation
- Large droplets for superior wind resistance
- Even distribution over the entire radius
- Slip clutch quickly set the left edge of the 5004 rotor (dry set only)

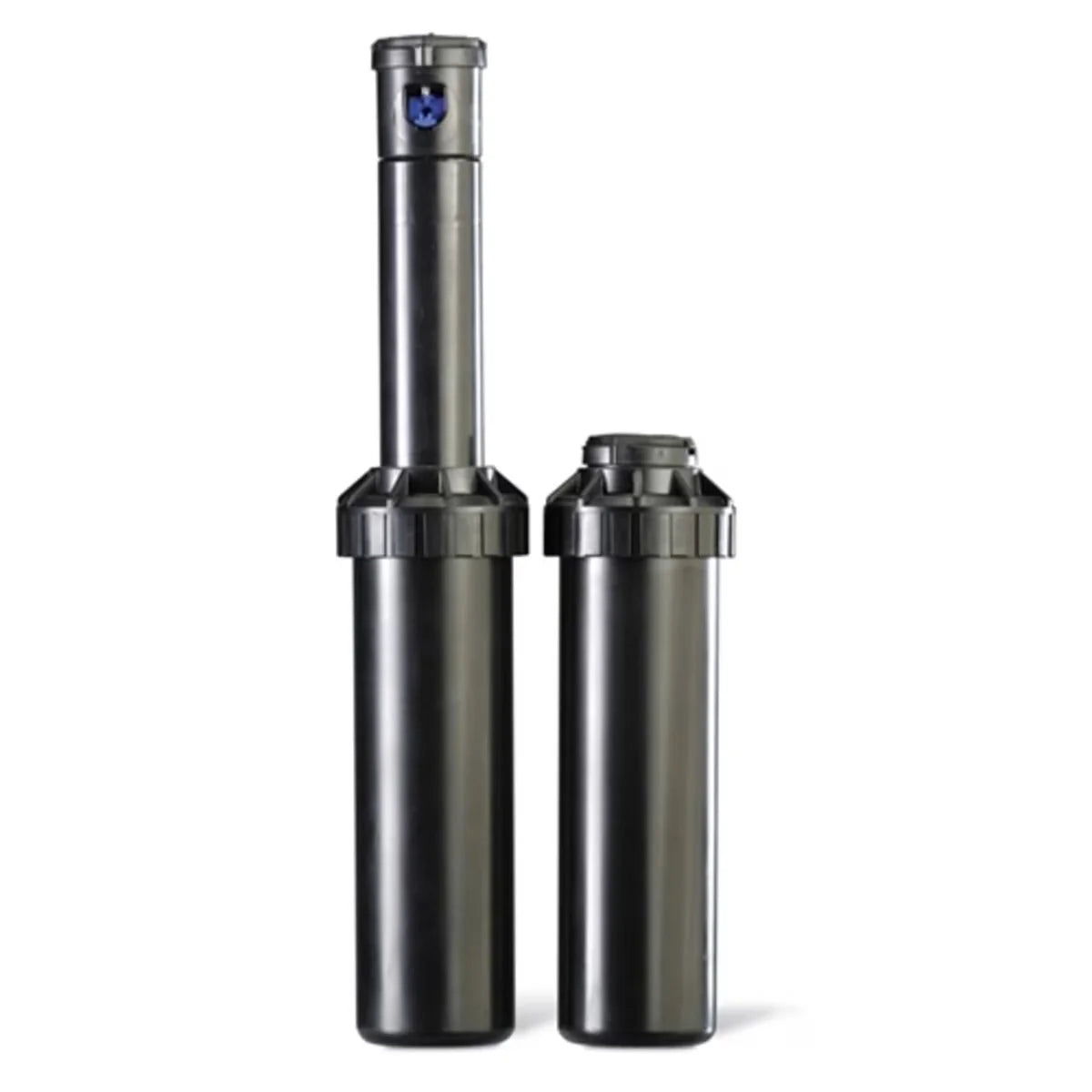

The 3500 Series Rotor is an easy to use short- to mid-range ½ in. gear-drive rotor, offering value and convenience for residential applications. Utilizing a simple flat-bladed screwdriver, the 3500's arc adjustment is quick and easy. This versatile rotor offers an attachable nozzle tree with six superior performing Rain Curtain nozzles, and the convenience of reversing full- and part-circle operation (up to 360 degrees) in one unit. Plus, a nozzle-removal feature and an easily removable filter screen make maintenance a breeze.
Key Features
Key Features
Item: Rotor
Body Height: 6.6 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 1/2 in.
Operating Radius: 15 ft. - 35 ft.
Inlet Connection: 1/2 in. FNPT
Adjustable Rotation Angle: 40 Degree - 360 Degree
Pop-Up Height: 4 in. Riser
Case Material: Plastic
Type: Pop-Up
Series: 3500 Series
Check Valve: Yes
Minimum Flow Rate: 0.54 GPM
Height: 10.6 in.
Maximum Flow Rate: 4.6 GPM
Riser Material: Plastic
Body Material: Plastic
Weight: 0.3 lb.
Color: Black, Blue
Exposed Diameter: 1.16 in.
Maximum Operating Pressure: 55 PSI
Regulated: No
Brand Name: Rain Bird
