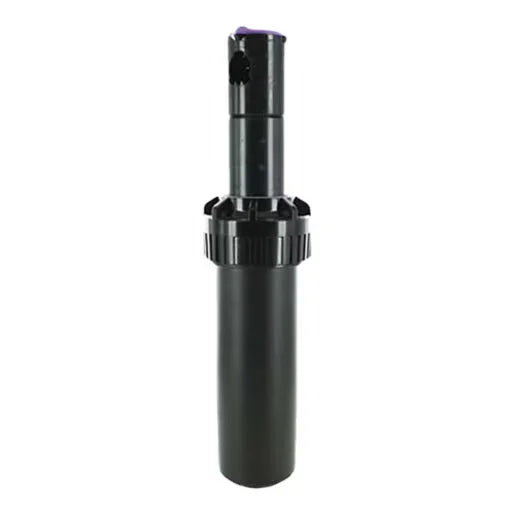

Rain Bird 5004 Part-Circle Non-Potable Rotor 4 in. Riser | 5004PCNP
Rain Bird 5004 Part-Circle Non-Potable Rotor 4 in. Riser | 5004PCNP
SKU:
5004PCNP
Regular price
$19.38
Regular price
Sale price
$19.38
Unit price
/
per
Couldn't load pickup availability
- Thicker rubber cover for superior protection
- Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
- Heavy-duty case for superior protection
- Large droplets for superior wind resistance
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Even distribution over the entire radius
Read more
- Thicker rubber cover for superior protection
- Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
- Heavy-duty case for superior protection
- Large droplets for superior wind resistance
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Even distribution over the entire radius
Offering unmatched performance from 25 ft. to 50 ft., Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand. Â
Key Features
Key Features
Item: Rotor
Body Height: 7-3/8 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 25 ft. - 50 ft.
Inlet Connection: 3/4 in. FNPT
Adjustable Rotation Angle: 40 Degree - 360 Degree
Pop-Up Height: 4 in. Riser
Full-Circle/Part-Circle: Full Circle & Part Circle
Case Material: Plastic
Type: Non-Potable
Series: 5000 Series
Minimum Flow Rate: 0.73 GPM
Height: 11-3/8 in.
Maximum Flow Rate: 9.63 GPM
Riser Material: Plastic
Body Material: Plastic
Color: Black
Exposed Diameter: 1-5/8 in.
Maximum Operating Pressure: 65 PSI
Regulated: No
Brand Name: Rain Bird
