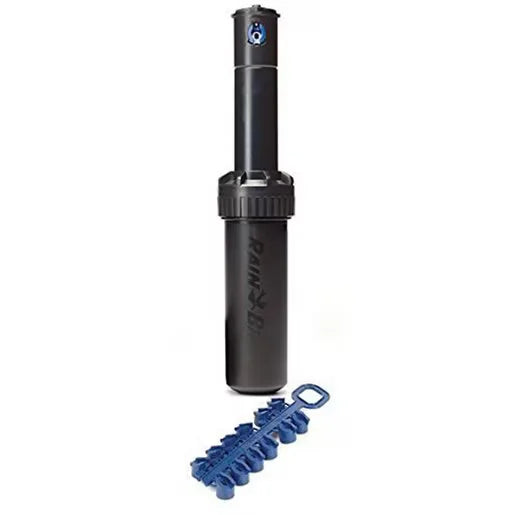

Rain Bird 5004 Plus Part-Circle Rotor 4 in. Riser with SAM Check Valve, PRS Pressure Regulator and 2.0 Nozzle | 5004+PCSAMR20
Rain Bird 5004 Plus Part-Circle Rotor 4 in. Riser with SAM Check Valve, PRS Pressure Regulator and 2.0 Nozzle | 5004+PCSAMR20
SKU:
5004+PCSAMR20
Regular price
$25.18
Regular price
Sale price
$25.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Made from premium-grade material for lasting durability
- Large droplets for superior wind resistance
- Even distribution over the entire radius
- Slip clutch quickly set the left edge of the 5004 rotor (dry set only)
Offering unmatched performance from 25 ft. to 50 ft., Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand. Â
Key Features
Key Features
Item: Rotor
Body Height: 7-3/4 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 25 ft. - 50 ft.
Inlet Connection: 3/4 in. FNPT
Adjustable Rotation Angle: 40 Degree - 360 Degree
Pop-Up Height: 4 in. Riser
Case Material: Plastic
Type: Pop-Up
Series: 5000 Plus Series
Pressure Regulating: Yes
Check Valve: Yes
Minimum Flow Rate: 0.76 GPM
Height: 11-3/4 in.
Maximum Flow Rate: 9.63 GPM
Riser Material: Plastic
Body Material: Plastic
Color: Black, Blue
Exposed Diameter: 1-5/8 in.
Maximum Operating Pressure: 65 PSI
Regulated: No
Brand Name: Rain Bird
