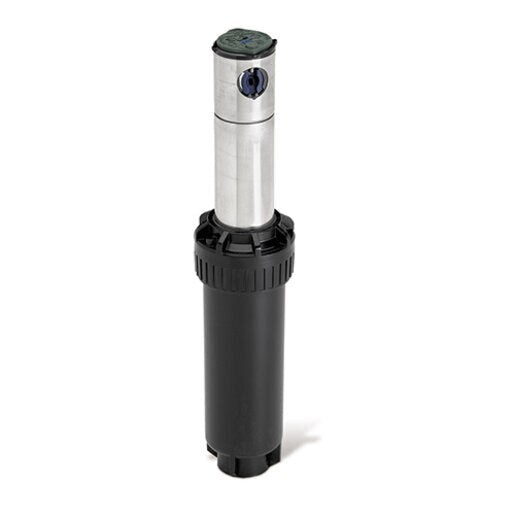

Rain Bird 5004 Plus Part-Circle Stainless Steel Rotor 4 in. Riser with SAM Check Valve and PRS Pressure Regulator | 5004+PCSAMRSS
Rain Bird 5004 Plus Part-Circle Stainless Steel Rotor 4 in. Riser with SAM Check Valve and PRS Pressure Regulator | 5004+PCSAMRSS
Sale Ends In
Couldn't load pickup availability
Description
- Thicker rubber cover for superior protection
- Self flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
- Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
- Non-strippable drive: the patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Automatic arc return, this patented feature returns the turret to the original arc regardless of where it is turned, This ensures vandal protection in any environment
- Headed and slotted set screw, use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed
Specifications
Specifications
Item: Rotor
Body Height: 7-3/4 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 25 ft. - 50 ft.
Inlet Connection: 3/4 in. FNPT
Adjustable Rotation Angle: 40 Degree - 360 Degree
Pop-Up Height: 4 in. Riser
Case Material: Plastic & Stainless Steel
Type: Pop-Up
Series: 5000 Plus Series
Pressure Regulating: Yes
Check Valve: Yes
Minimum Flow Rate: 0.76 GPM
Height: 11-3/4 in.
Maximum Flow Rate: 9.63 GPM
Riser Material: Stainless Steel
Body Material: Plastic
Weight: 0.8 lb.
Color: Black, Silver
Exposed Diameter: 1-5/8 in.
Maximum Operating Pressure: 65 PSI
Regulated: No
Brand Name: Rain Bird
