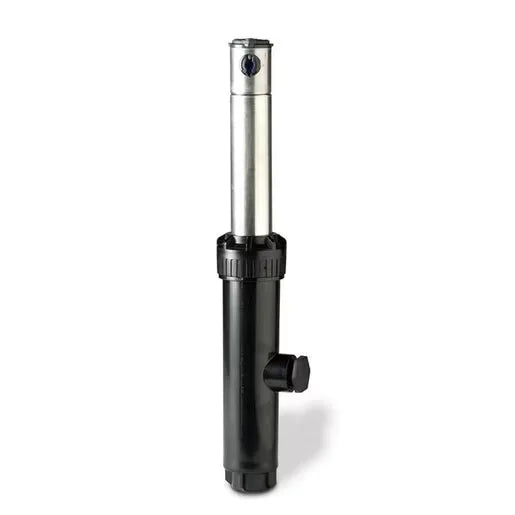

Rain Bird 5006 Plus Part-Circle Stainless Steel Rotor 6 in. Riser with SAM Check Valve and PRS Pressure Regulator | 5006+PCSAMRSS
Rain Bird 5006 Plus Part-Circle Stainless Steel Rotor 6 in. Riser with SAM Check Valve and PRS Pressure Regulator | 5006+PCSAMRSS
SKU:
5006+PCSAMRSS
Regular price
$71.05
Regular price
Sale price
$71.05
Unit price
/
per
Couldn't load pickup availability
- Thicker rubber cover for superior protection
- Self flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
- Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
- Heavy-duty case for durability
- Top-adjust arc adjustment...
- Thicker rubber cover for superior protection
- Self flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
- Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
- Heavy-duty case for durability
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Large droplets for superior wind resistance
- Even distribution over the entire radius
- Slip clutch quickly set the left edge of the 5004 rotor (dry set only)
Offering unmatched performance from 25 ft. to 50 ft., Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand. Â
Key Features
Key Features
Item: Rotor
Body Height: 7-3/8 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 25 ft. - 50 ft.
Inlet Connection: 3/4 in. FNPT
Adjustable Rotation Angle: 40 Degree - 360 Degree
Pop-Up Height: 6 in. Riser
Case Material: Stainless Steel
Type: Pop-Up
Series: 5000 Plus Series
Pressure Regulating: Yes
Check Valve: Yes
Minimum Flow Rate: 0.76 GPM
Height: 13-3/8 in.
Maximum Flow Rate: 9.63 GPM
Riser Material: Stainless Steel
Color: Black, Silver
Exposed Diameter: 1-5/8 in.
Maximum Operating Pressure: 65 PSI
Regulated: No
Brand Name: Rain Bird
