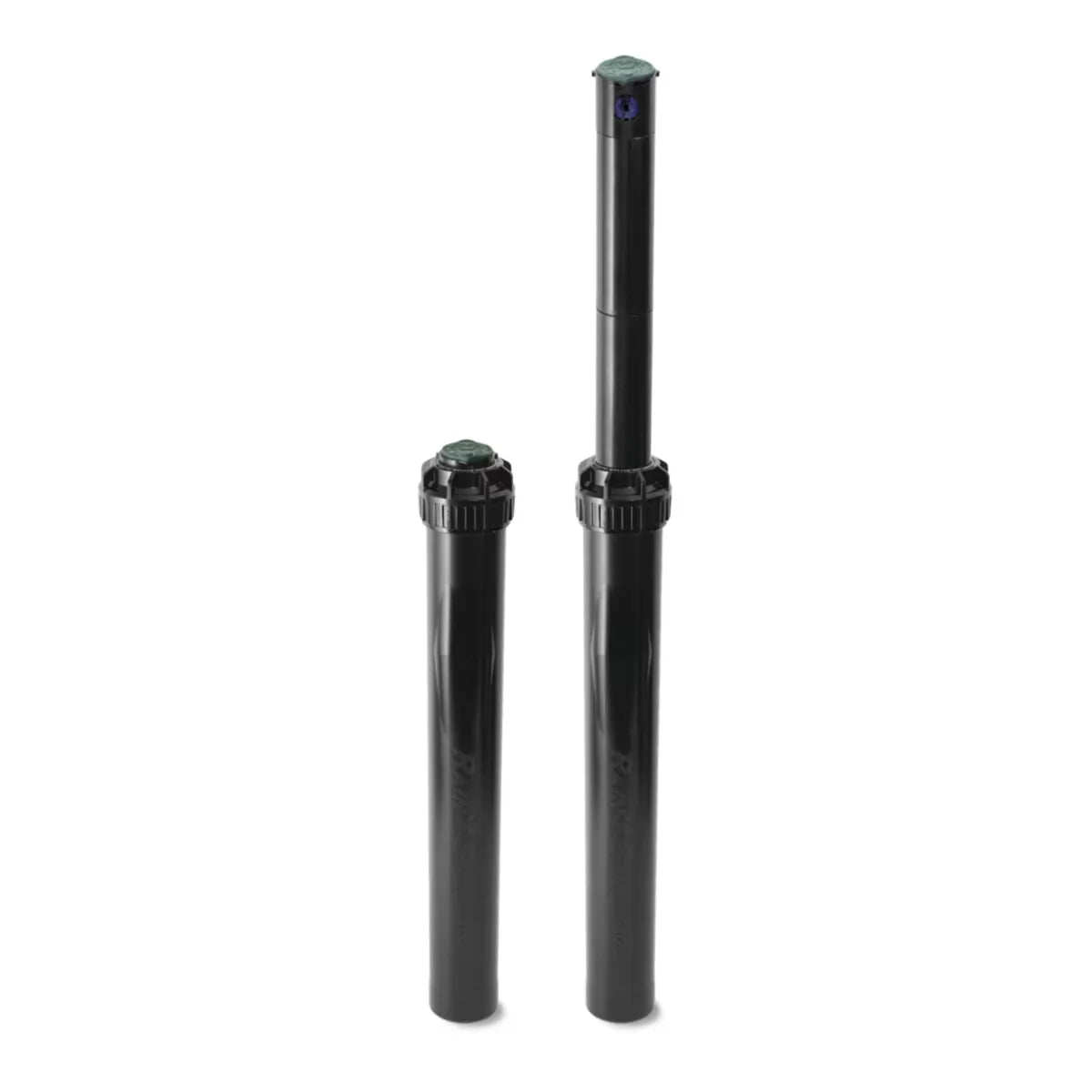

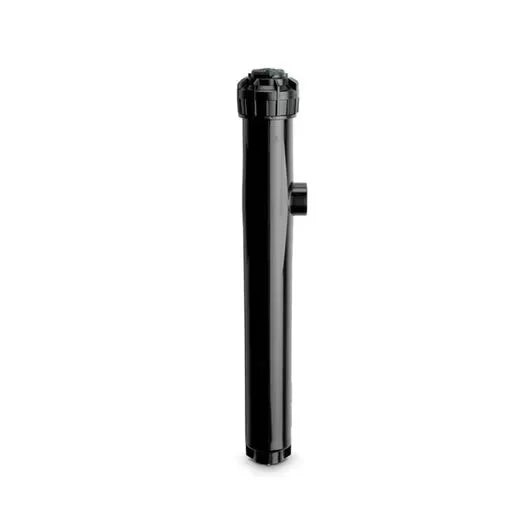

Rain Bird 5012 Plus Part-Circle Rotor 12 in. Riser with SAM Check Valve and PRS Pressure Regulator | 5012+PCSAMR
Rain Bird 5012 Plus Part-Circle Rotor 12 in. Riser with SAM Check Valve and PRS Pressure Regulator | 5012+PCSAMR
SKU:
5012+PCSAMR
Regular price
$78.02
Regular price
Sale price
$78.02
Unit price
/
per
Couldn't load pickup availability
- Thicker rubber cover for superior protection
- Self flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
- Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
- Heavy-duty case for superior protection
- Top-adjust arc...
- Thicker rubber cover for superior protection
- Self flushing arc adjustment port as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
- Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
- Heavy-duty case for superior protection
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- Large droplets for superior wind resistance
- Even distribution over the entire radius
Offering unmatched performance from 25 ft. to 50 ft., Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand. Â
Key Features
Key Features
Item: Rotor
Body Height: 7-3/4 in.
Full-Circle/Part-Circle: Full Circle & Part Circle
Connection Type: Fnpt
Connection Size: 3/4 in.
Operating Radius: 25 ft. - 50 ft.
Inlet Connection: 3/4 in. FNPT
Adjustable Rotation Angle: 40 Degree - 360 Degree
Pop-Up Height: 12 in. Riser
Full-Circle/Part-Circle: Full Circle & Part Circle
Case Material: Plastic
Type: Pop-Up
Series: 5000 Series
Pressure Regulating: Yes
Check Valve: Yes
Minimum Flow Rate: 0.73 GPM
Height: 19-3/4 in.
Maximum Flow Rate: 9.63 GPM
Color: Black
Exposed Diameter: 1.16 in.
Maximum Operating Pressure: 65 PSI
Regulated: No
Brand Name: Rain Bird
