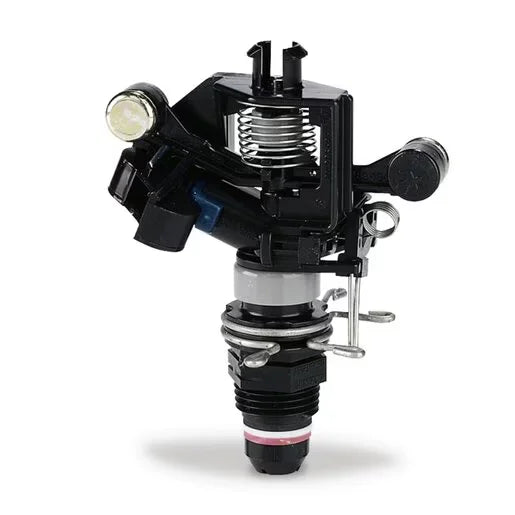

Rain Bird Maxi-Bird Adjustable Impact Rotor with Blue No. 8 Nozzle | 2045PJ08
Rain Bird Maxi-Bird Adjustable Impact Rotor with Blue No. 8 Nozzle | 2045PJ08
SKU:
2045PJ08
Regular price
$21.27
Regular price
Sale price
$21.27
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 1/2 inch (15/21) riser-mounted impact head used for slope and large-area, above-grade applications
- Proven impact drive for maximum reliability
- Designed to offer powerful reverse action
- Slip clutch quickly set the left edge of the 5004 rotor (dry set only)
- Adjustable arm spring for low-pressure operation
- Large droplets for superior wind resistance
- Even distribution over the entire radius
Designed for a variety of uses where full circle sprinklers should not overthrow water into restricted areas. The body, arm, bearing sleeve and nipple are made of durable Delrin plastic.
Specifications
Specifications
Item: Rotor
Body Height: 3-3/4 in.
Full-Circle/Part-Circle: Part-Circle
Connection Type: Mpt
Connection Size: 1/2 in.
Operating Radius: 22 ft. - 45 ft.
Inlet Connection: 1/2 in.
Adjustable Rotation Angle: 20 Degree - 340 Degree
Full-Circle/Part-Circle: Part-Circle
Case Material: Plastic & Stainless Steel
Type: Impact
Series: Maxi-Bird Series
Minimum Flow Rate: 1.5 GPM
Height: 3-3/4 in.
Maximum Flow Rate: 8.4 GPM
Riser Material: Plastic
Body Material: Plastic & Stainless Steel
Weight: 0.15 lb.
Color: Black
Maximum Operating Pressure: 60 PSI
Regulated: No
Brand Name: Rain Bird
