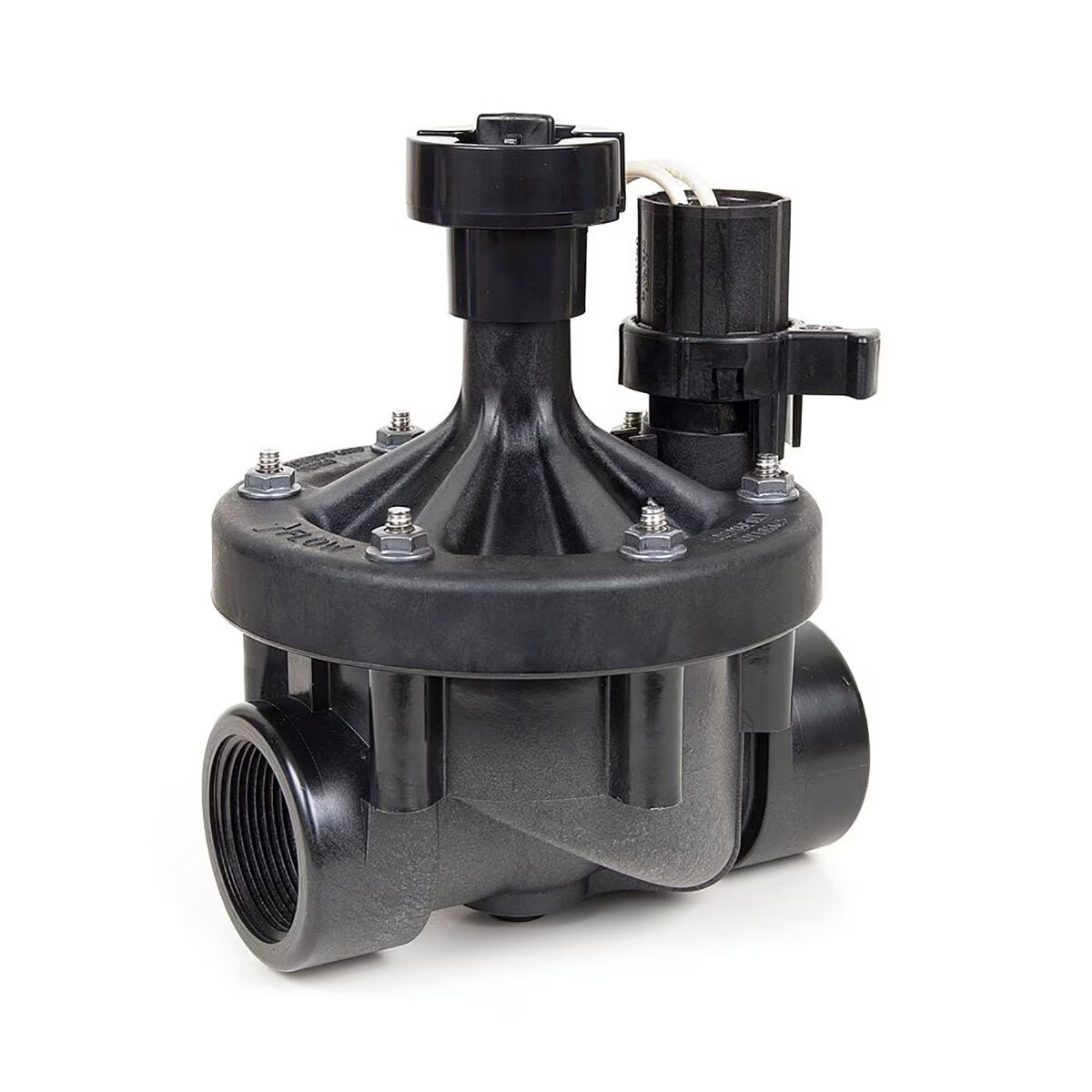

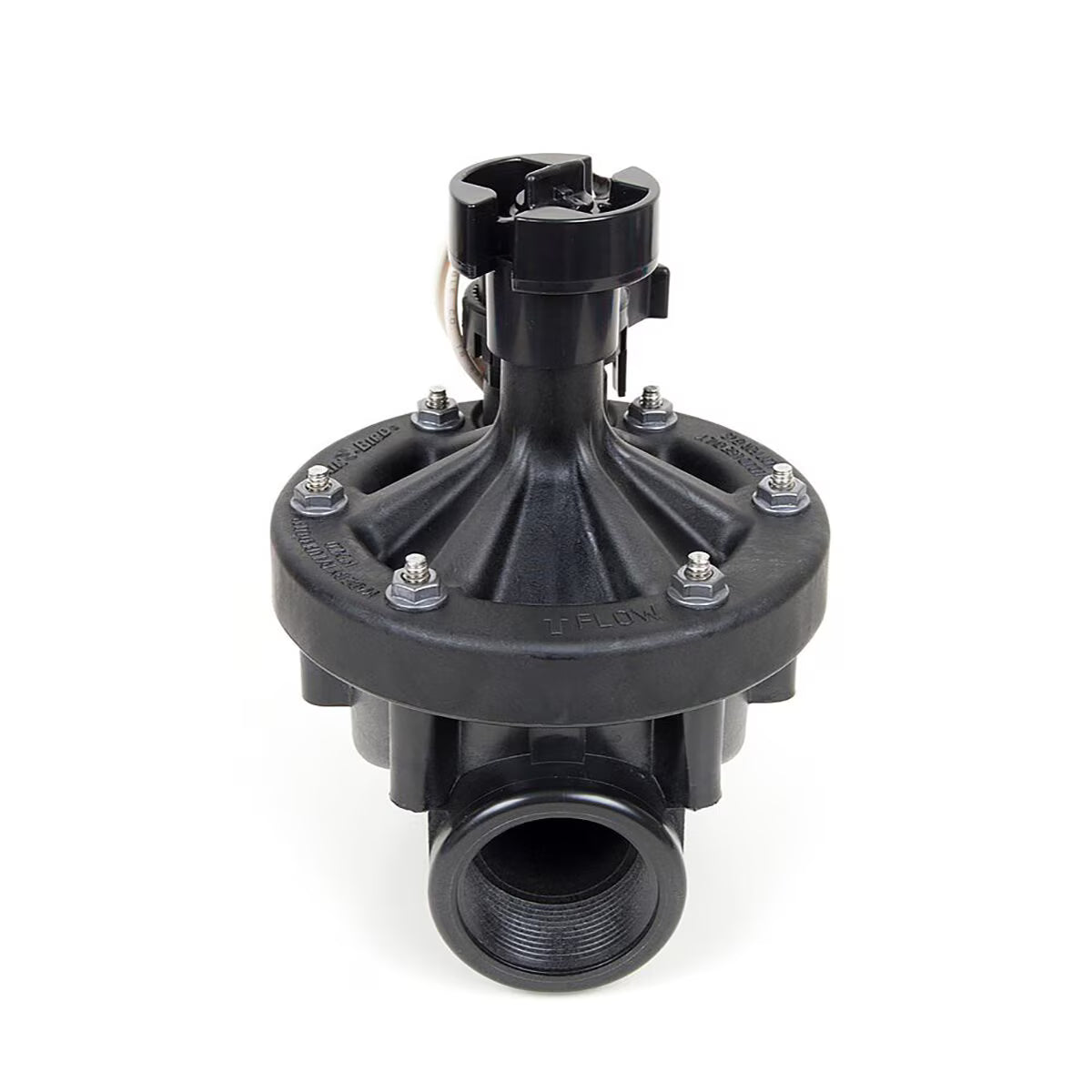

Rain Bird PEB Industrial Valve Plastic 1 in. w/ Flow Control FIPT x FIPT | 100PEB
Rain Bird PEB Industrial Valve Plastic 1 in. w/ Flow Control FIPT x FIPT | 100PEB
SKU:
100PEB
Regular price
$99.92
Regular price
Sale price
$99.92
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Key Features
Key Features
✅ Connection Type: Fipt
✅ Connection Size: 1 in.
✅ Body Material: Plastic
✅ Type: In-Line
✅ Series: PEB Series
✅ Pressure Regulating: Pressure Regulating
✅ Solenoid Type: 24 VAC 50/60 Hz Solenoid
✅ Operating Type: Electric
✅ Flow Control: w/ Flow Control
✅ Height: 6-1/2 in.
✅ Width: 4 in.
✅ Maximum Flow Rate: 200 GPM
✅ Voltage Rating: 24V
✅ Minimum Flow Rate: 5 GPM
✅ Depth: 4 in.
✅ Item: Electric Valve
✅ Dimensions: 6-1/2 in. x 4 in. x 4 in.
✅ Minimum Operating Pressure: 20 PSI
✅ Maximum Operating Pressure: 200 PSI
✅ Maximum Working Temperature: 150 F
✅ Connection 2 Size: 1 in.
✅ Connection 2 Type: Fipt
✅ Regulated: No
✅ Brand Name: Rain Bird
- Body constructed of durable glass filled nylon for long life and heavy-duty performance at 200 psi (13.80 bar) pressure
- Stainless steel studs molded into the body. Bonnet can be attached and removed more easily without damaging threads
- Slow closing to prevent water hammer and subsequent system damage
- Low flow capability for a wide range of applications
- One-piece solenoid design with captured plunger and spring for easy servicing prevents loss of parts during field service
- Flow control handle adjusts water flows as needed
- External bleed protects the solenoid ports from debris when system is flushed
- Internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning on the valve at the controller first
- Temperature: Up to 150 Degree F (66 Degree C)
- 24 VAC, 50/60 HZ Solenoid
Pressure surges? Effluent water? Clogging debris? No problem. PEB and PESB Series valves offer long life and efficient, trouble free performance even under harsh conditions. Constructed of heavy-duty, glass-filled nylon, these valves resist clogging. And the PESB model features a patented scrubber to actively fight dirt, debris and particles.
