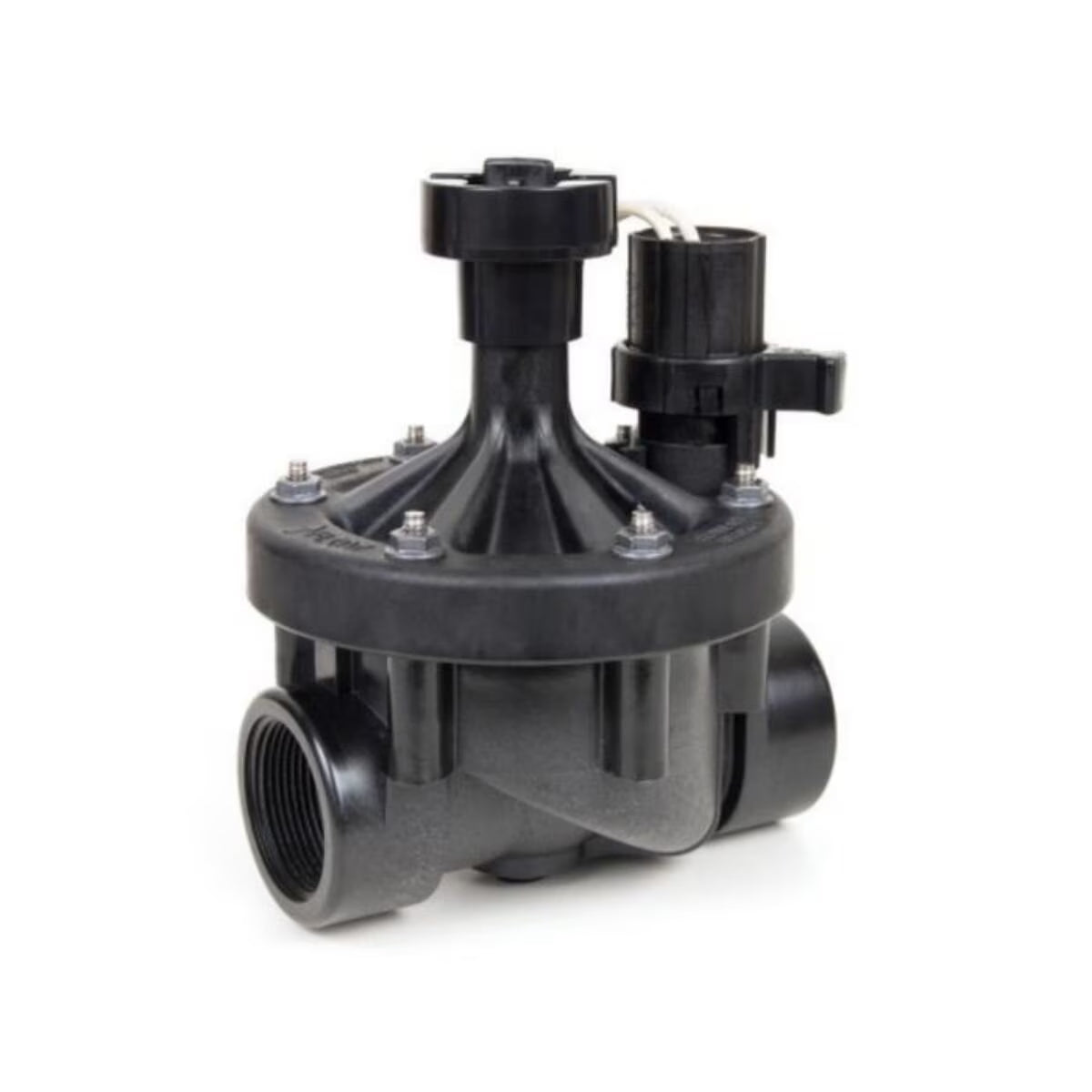

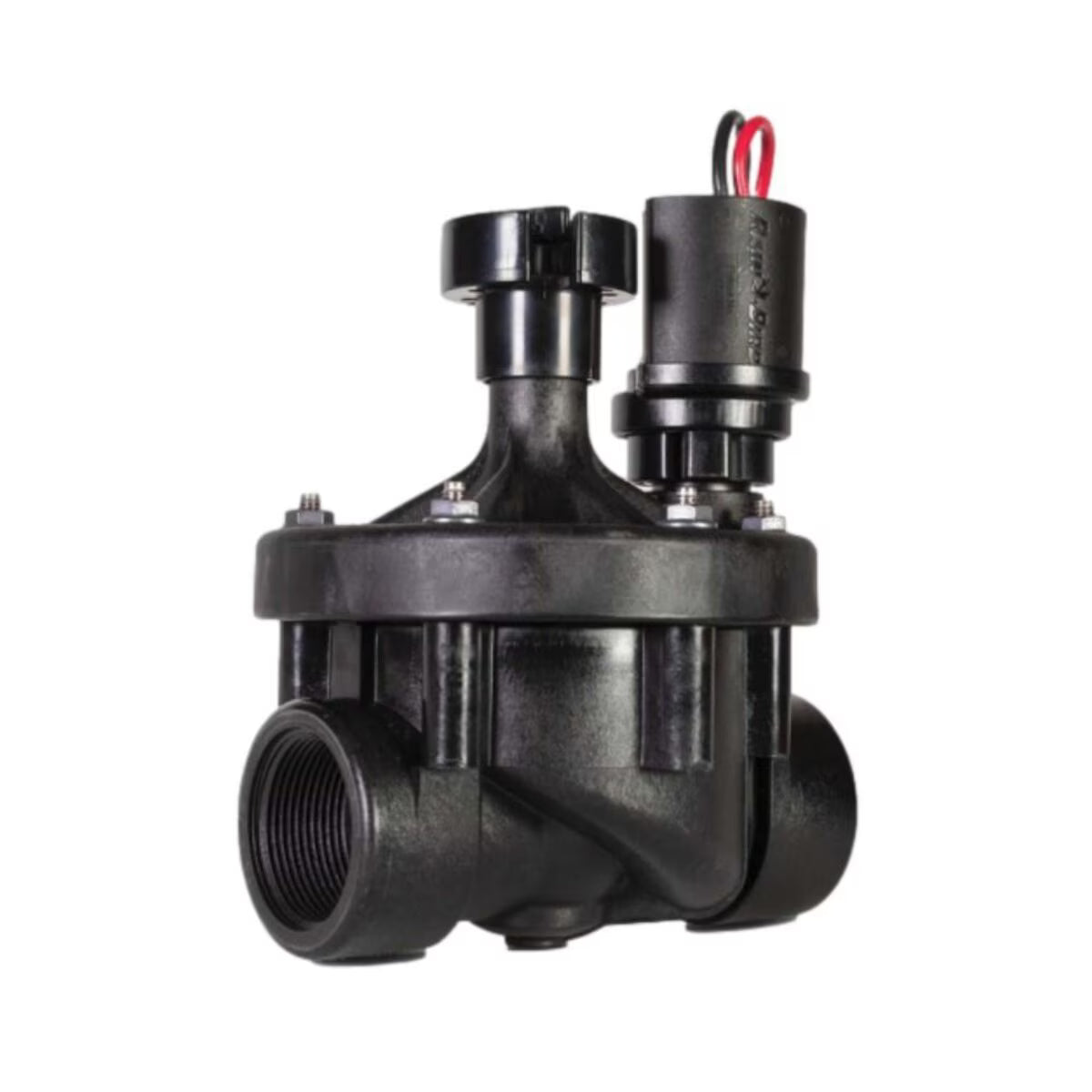

Rain Bird PEB Industrial Valve Plastic w/ IVM Solenoid w/ Flow Control 1 in. FIPT | 100PEBIVM
Rain Bird PEB Industrial Valve Plastic w/ IVM Solenoid w/ Flow Control 1 in. FIPT | 100PEBIVM
SKU:
100PEBIVM
Regular price
$245.00
Regular price
Sale price
$245.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Key Features
Key Features
✅ Connection Type: Fipt
✅ Connection Size: 1 in.
✅ Body Material: Nylon
✅ Type: In-Line
✅ Series: PEB Series
✅ Solenoid Type: IVM Solenoid
✅ Operating Type: Electric
✅ Flow Control: w/ Flow Control
✅ Inlet Size: 1 in.
✅ Height: 6-1/2 in.
✅ Width: 4 in.
✅ Maximum Flow Rate: 200 GPM
✅ Voltage Rating: 15.6V - 29.2V
✅ Outlet Size: 1 in.
✅ Minimum Flow Rate: 0.25 GPM
✅ Outlet Connection: Fipt
✅ Inlet Connection: Fipt
✅ Item: Electric Valve
✅ Dimensions: 6-1/2 in. x 4 in. x 4 in.
✅ Minimum Operating Pressure: 20 PSI
✅ Maximum Operating Pressure: 200 PSI
✅ Maximum Working Temperature: 150 F
✅ Connection 2 Size: 1 in.
✅ Connection 2 Type: Fipt
✅ Regulated: No
✅ Brand Name: Rain Bird
- Angle configuration for flexibility n design and installation
- PVC and reinforced nylon construction
- Filtered pilot flow to resist debris and clogging
Rain Bird PGA and PEB/PESB Series valves are now available with the Integrated Valve Module "smart solenoid" (IVM-SOL) preinstalled. The new IVM Smart Valves, when paired with the ESP-LXIVM Two-Wire controller, eliminate decoders resulting in 50% fewer wire splices, which reduces system cost and improves reliability. During operation, the IVM-SOL provides two-way communication between the valve and controller to provide advanced diagnostic capability and faster response time.
