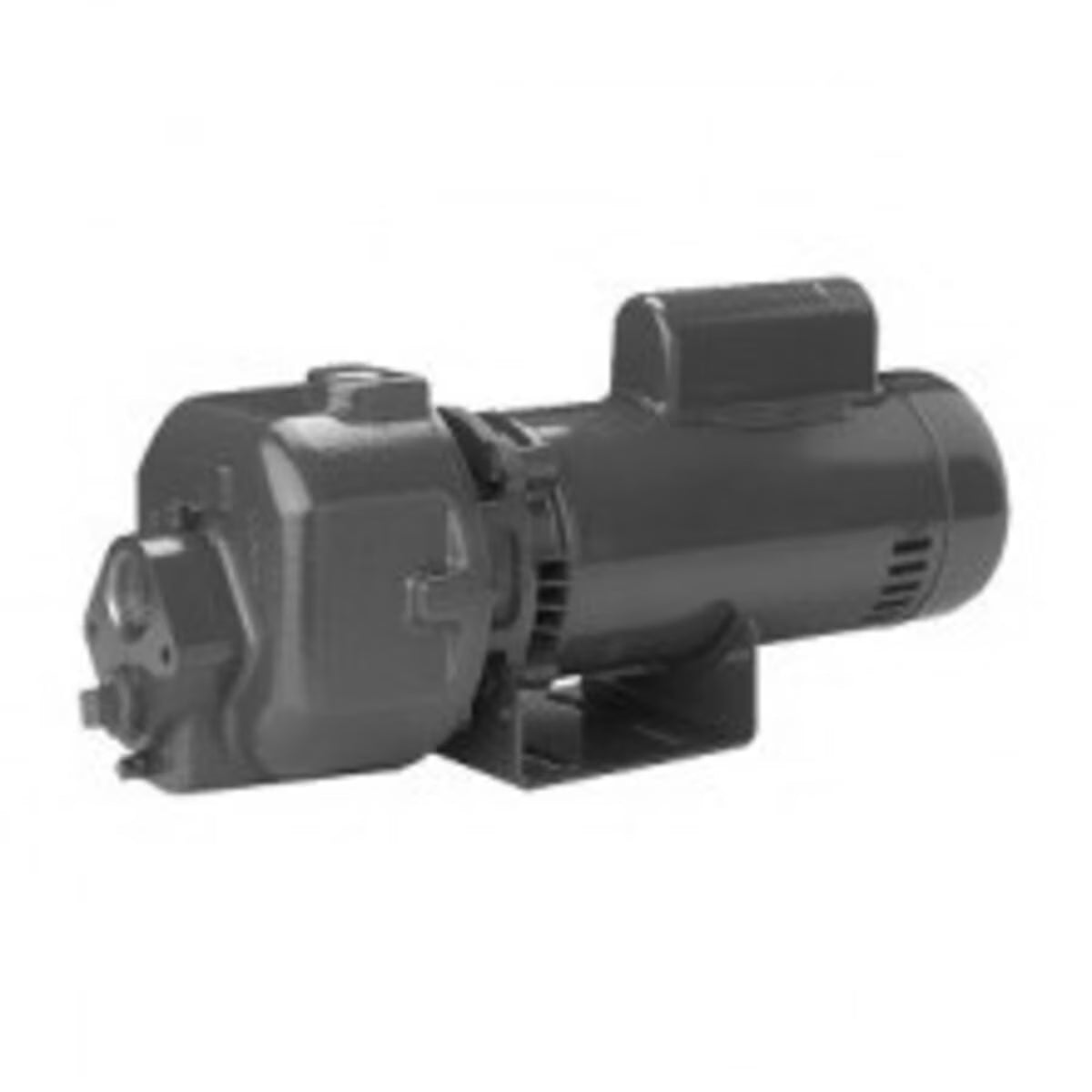

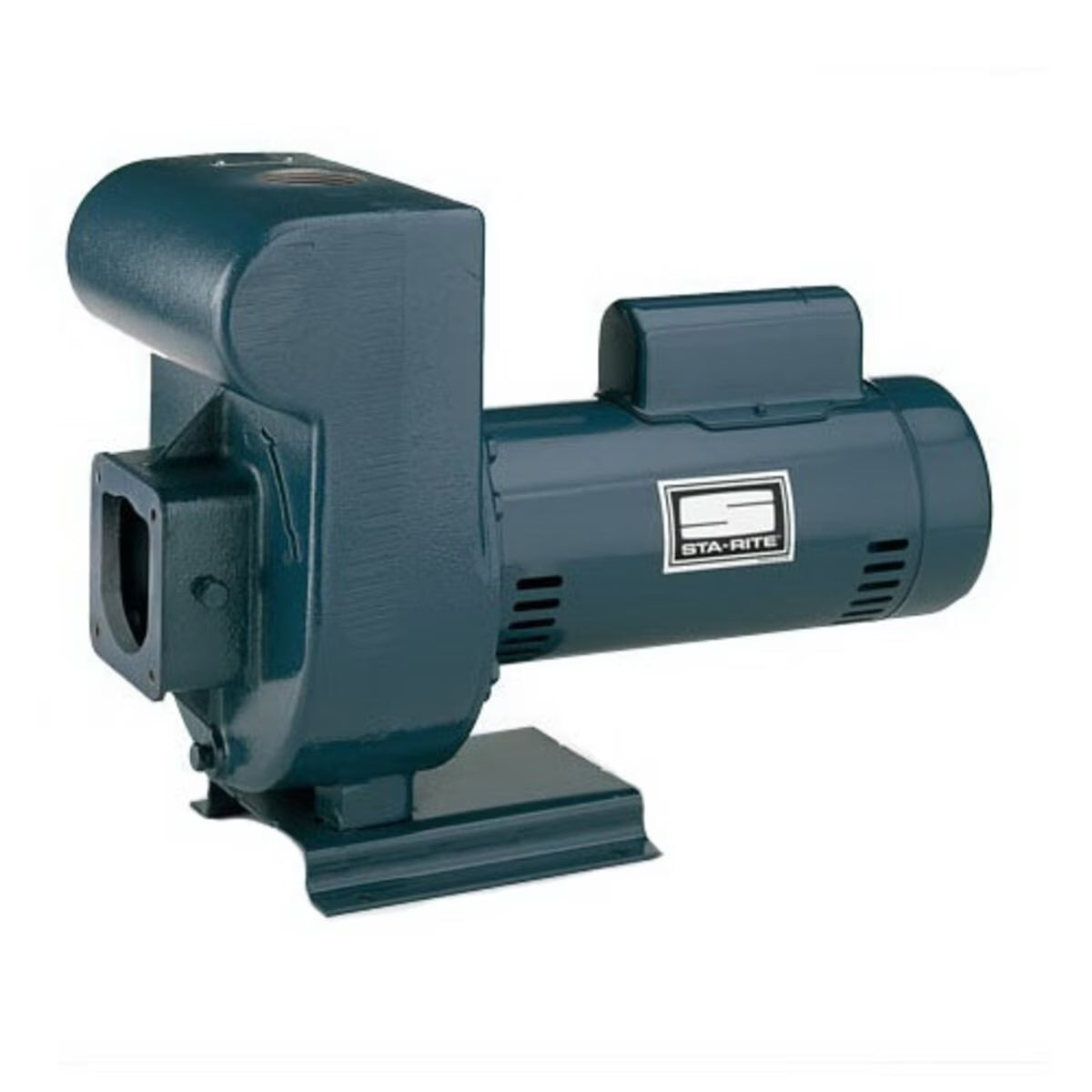

Sta-Rite DMC-2-200 DMC Multi-Stage Centrifugal Pump 2 HP 230v 1 Phase Cast Iron

Sta-Rite DMC-2-200 DMC Multi-Stage Centrifugal Pump 2 HP 230v 1 Phase Cast Iron

 DMC-2-200
Regular price $1,689.99
Regular price Sale price $1,689.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Flow Rate
50 GPM
Vertical Lift
20 ft.
Operating Pressure
150 psi
Amperage Rating
12 Amps
Cord Length
6 ft.
Number of Stages
2

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

Some of the fastest priming pumps on the market. Available in high head or medium head series. Features mechanical seals, easy service design, heavy-duty motors, rugged construction. Available in 1 through 5 HP.

View full details

Specifications

Voltage Rating 230v
Phase Single Phase
HP Rating 2 hp
Series DMC Series
Material Cast Iron
Includes Pump, User Manual
Item Pump
Type Centrifugal
Number of Stages 2
Weight 64.5 lb.
Dimensions 24 in. x 12 in. x 12 in.
Power Source Electric
Amperage Rating 12 Amps
Speed 3,600 RPM
Flow Rate 50 GPM
Wire Count 3
Inlet Connection FNPT
Check Valve No
Operating Pressure 150 psi
Inlet Size 1-1/4 in.
Outlet Size 1 in.
Outlet Connection FNPT
Cord Length 6 ft.
Vertical Lift 20 ft.
Pump Switch No Switch
Working Temperature 140 F
Regulated No
Brand Name Sta-Rite
