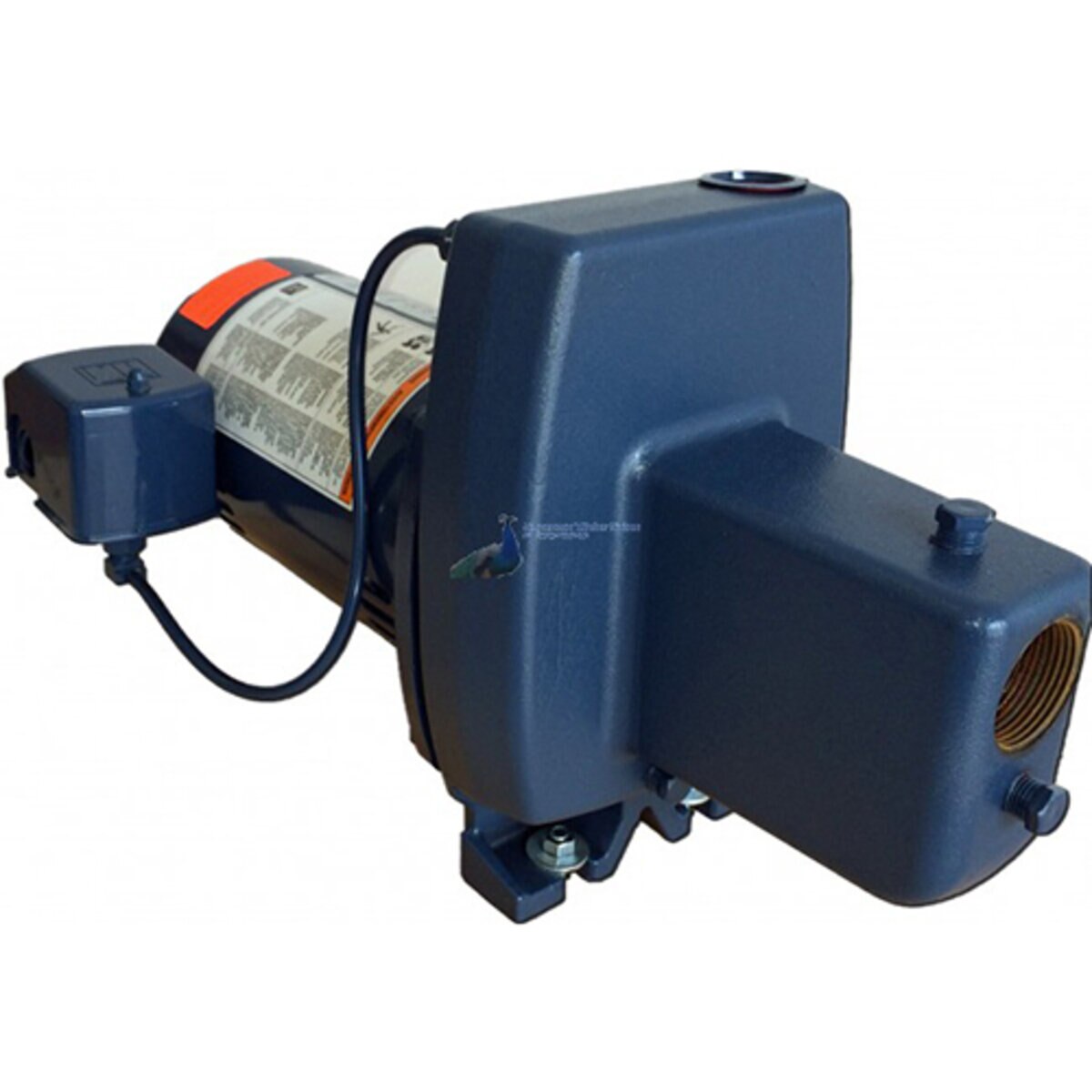

Sta-Rite FSNCH-L FSNCH Shallow Well Jet Pump 1/2 HP 115/230v 1 Phase Cast Iron

Sta-Rite FSNCH-L FSNCH Shallow Well Jet Pump 1/2 HP 115/230v 1 Phase Cast Iron

 FSNCH-L
Regular price $444.99
Regular price Sale price $444.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Flow Rate
5.9 GPM
Vertical Lift
25 ft.
Operating Pressure
50 PSI
Amperage Rating
6 Amps
Cord Length
6 ft.
Includes
Pressure Switch

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

Cast iron self-priming shallow well jet pumps that provides strong performance with good pressure for wells to 25 foot MAX deep and typically used in applications like, water systems and sprinkling for homes, farms and cottages. The FN Series pumps are a self-priming after the priming chamber has been filled with water.

View full details

Specifications

Voltage Rating 230v
Phase Single Phase
HP Rating 1/2 HP
Series FN Series
Material Cast Iron
Includes Pressure Switch
Item Pump
Type Jet
Number of Stages 1
Weight 41 lb.
Dimensions 16-7/8 in. x 10-11/32 in.
Power Source Electric
Amperage Rating 6 Amps
Speed 3,600 RPM
Flow Rate 5.9 GPM
Wire Count 3
Inlet Connection FNPT
Check Valve No
Operating Pressure 50 PSI
Inlet Size 1-1/4 in.
Outlet Size 1 in.
Outlet Connection FNPT
Cord Length 6 ft.
Vertical Lift 25 ft.
Pump Switch Pressure
Working Temperature 140 F
Regulated No
Brand Name Sta-Rite
