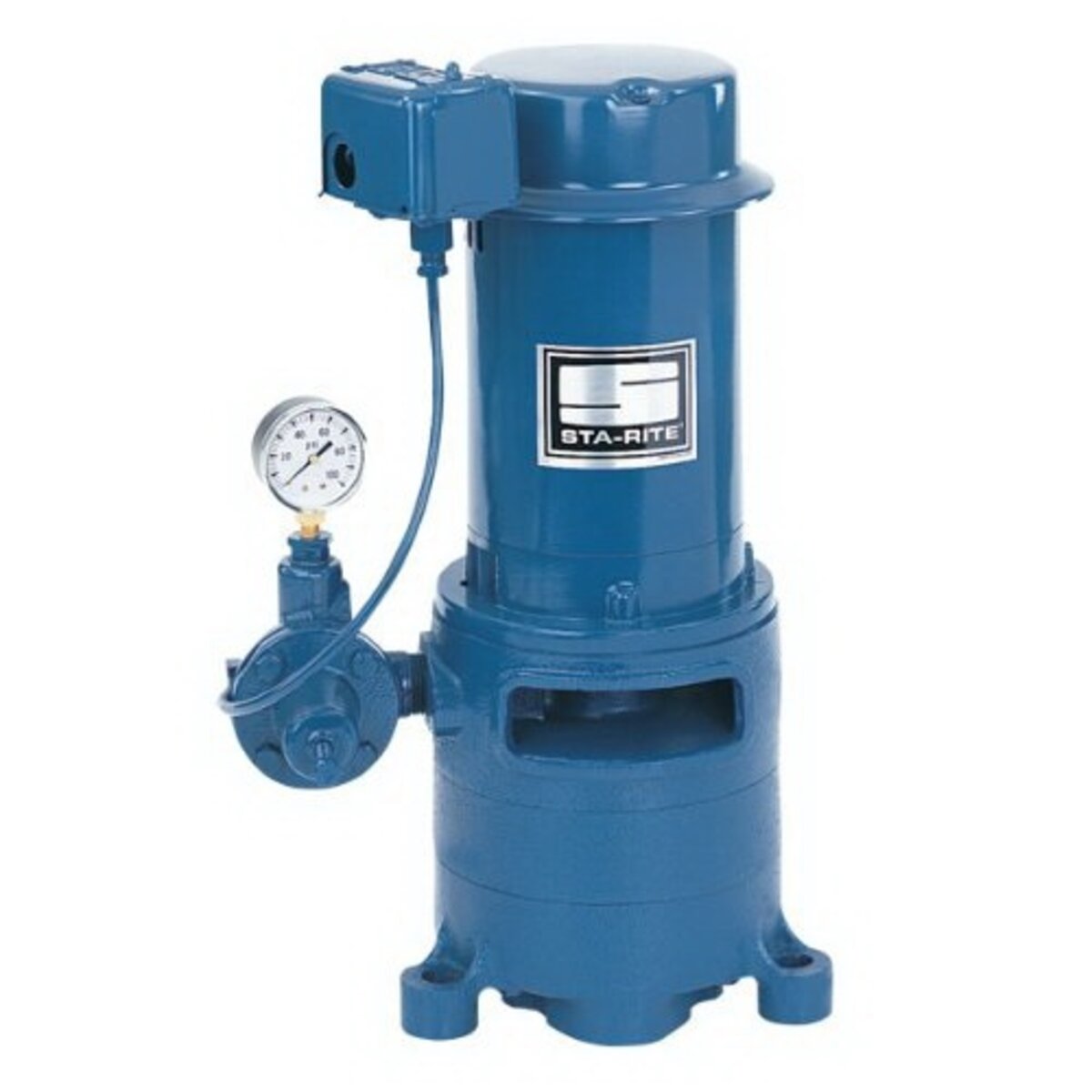

Sta-Rite MSE-7 MS Multi-Stage Jet Pump Cast Iron 115V/230V 1 HP 1 Phase

Sta-Rite MSE-7 MS Multi-Stage Jet Pump Cast Iron 115V/230V 1 HP 1 Phase

 MSE-7
Regular price $1,676.99
Regular price Sale price $1,676.99
Sale Sold out
Shipping calculated at checkout.

Highlights

Number of Stages
19
Flow Rate
10 GPM
Operating Pressure
60 psi
Vertical Lift
20 ft.
Includes
Pre-Plumbed External Automatic Regulator
Working Temperature
140 F

Shipping policy

Most orders ship via standard UPS, FedEx, or USPS. Larger or heavier items, including select pumps, ship via freight instead.

If an item ships via freight, a phone number is required at checkout so the carrier can schedule a delivery appointment, and the customer must be present to receive it. Delivery is curbside, meaning the truck will not bring the package to your door. You will need to unload it yourself or add a lift gate for $99. Please note any damage on the Bill of Lading at delivery, this is required for any return or claim.

For full shipping details, see our Shipping Policy.

Compatibility Notice

It is the buyer’s responsibility to confirm product compatibility with their system, application, and any local code requirements prior to purchase. Buyers should verify model numbers, specifications, sizing, and pressure ratings before ordering.
If you are unsure, you may contact us before purchasing and we will help confirm compatibility.

To initiate a return, customers must contact us before sending the item back. Unauthorized returns may be refused.

Return Policy

Please note that this item is non-cancellable and non-returnable. Since these products are specifically allocated to your requirements immediately upon purchase, we are unable to accommodate cancellations or returns once the order is processed.

To assist with any necessary adjustments, a 24-hour grace period is available from the time of purchase for order cancellations. Due to the specialized nature of these products, including their size and unique shipping requirements, this item falls under our Special Order category.

Description

The MS Series Vertical Jet Pumps are the industry standard deep well jet pumps for over-the-well "bolt-on" installations. The MS Series Jet Pumps include the pre-plumbed external automatic regulator, pressure gauge and a pressure switch. A complete line of casing adapters to drive the 4" double pipe or 2" and 3" single pipe jet packages can be purchased separately.

View full details

Specifications

Voltage Rating 230v
Phase Single Phase
HP Rating 1 HP
Series MS Series
Material Cast Iron
Includes Pre-Plumbed External Automatic Regulator
Item Pump
Type Jet
Number of Stages 19
Weight 73 lb.
Dimensions 24 in. x 12 in. x 12 in.
Power Source Electric
Amperage Rating 15 Amps
Speed 3,600 RPM
Flow Rate 10 GPM
Wire Count 3
Inlet Connection Fnpt
Check Valve No
Operating Pressure 60 psi
Inlet Size 1-1/4 in.
Outlet Size 1 in.
Outlet Connection Fnpt
Cord Length 6 ft.
Vertical Lift 20 ft.
Pump Switch Pressure
Working Temperature 140 F
Regulated No
Brand Name Sta-Rite
