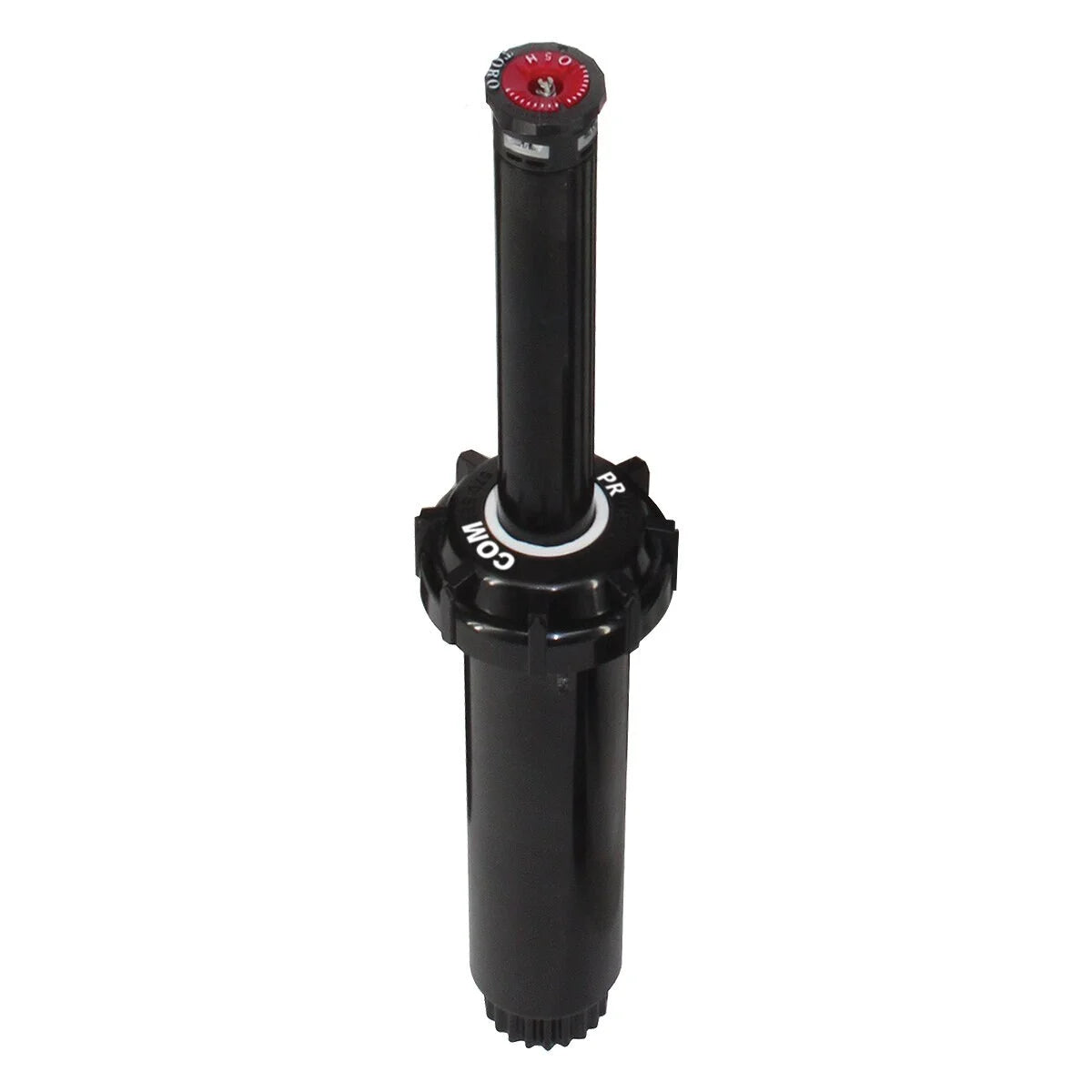

Toro 570Z Spray Body 4 in. Pop Up with Pressure Regulator and Check Valve | 570Z-4P-PRCOM
Toro 570Z Spray Body 4 in. Pop Up with Pressure Regulator and Check Valve | 570Z-4P-PRCOM
SKU:
570Z-4P-PRCOM
Regular price
$14.27
Regular price
Sale price
$14.27
Unit price
/
per
Couldn't load pickup availability
- Zero flush wiper seal, Prevents flushing on pop-up, allowing more sprinklers on the same line
- One-piece check valve, easily installed at the factory or in the field and valve prevents low-head drainage on elevation changes of up to 10 ft
- 115 different nozzles provide tremendous versatility
- All sprinkler components...
- Zero flush wiper seal, Prevents flushing on pop-up, allowing more sprinklers on the same line
- One-piece check valve, easily installed at the factory or in the field and valve prevents low-head drainage on elevation changes of up to 10 ft
- 115 different nozzles provide tremendous versatility
- All sprinkler components are removable from the top without special tools, providing for quick and easy flushing and maintenance of the sprinkler
- Exclusive co-molded wiper seal features an encased plastic cage to provide unmatched resistance to grit, pressure and the environment
Use the Toro 570Z Pop-Up Spray Head for small to medium-sized landscape areas. This spray head is suitable for preventing low-head drainage on elevation changes of up to 10 feet. It has a zero-flush wiper seal, which lowers water waste to facilitate more heads per valve. It has a ratcheting riser, enabling the spray pattern to be smoothly aligned to the desired position. This spray head has patented X-Flow technology, which makes component replacement easy and convenient while reducing erosion. It has an FNPT connection and a 0.05-4.5 gpm flow rate.
Key Features
Key Features
Item: Spray Head
Operating Pressure: 20 - 50 psi
Pressure Regulating: Yes
Side Inlet: 1/2 in.
Pop-Up Height: 4 in.
Check Valve: Yes
Type: Pop-Up
Series: 570Z Series
Minimum Flow Rate: 0.5 GPM
Operating Radius: 2 ft. - 26 ft.
Maximum Flow Rate: 4.5 GPM
Color: Red, Black
Minimum Operating Pressure: 20 PSI
Maximum Operating Pressure: 75 PSI
Regulated: No
Brand Name: Toro
