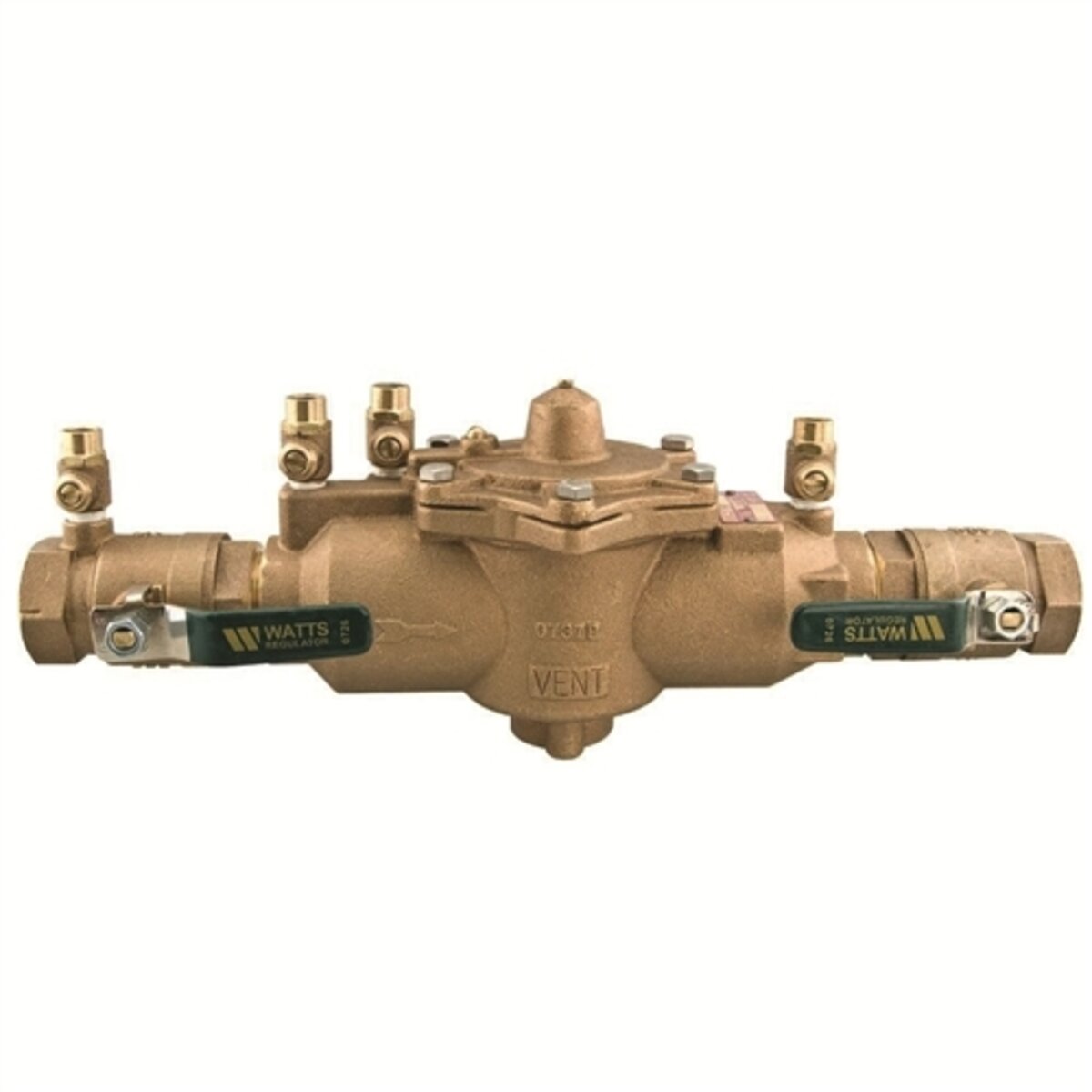

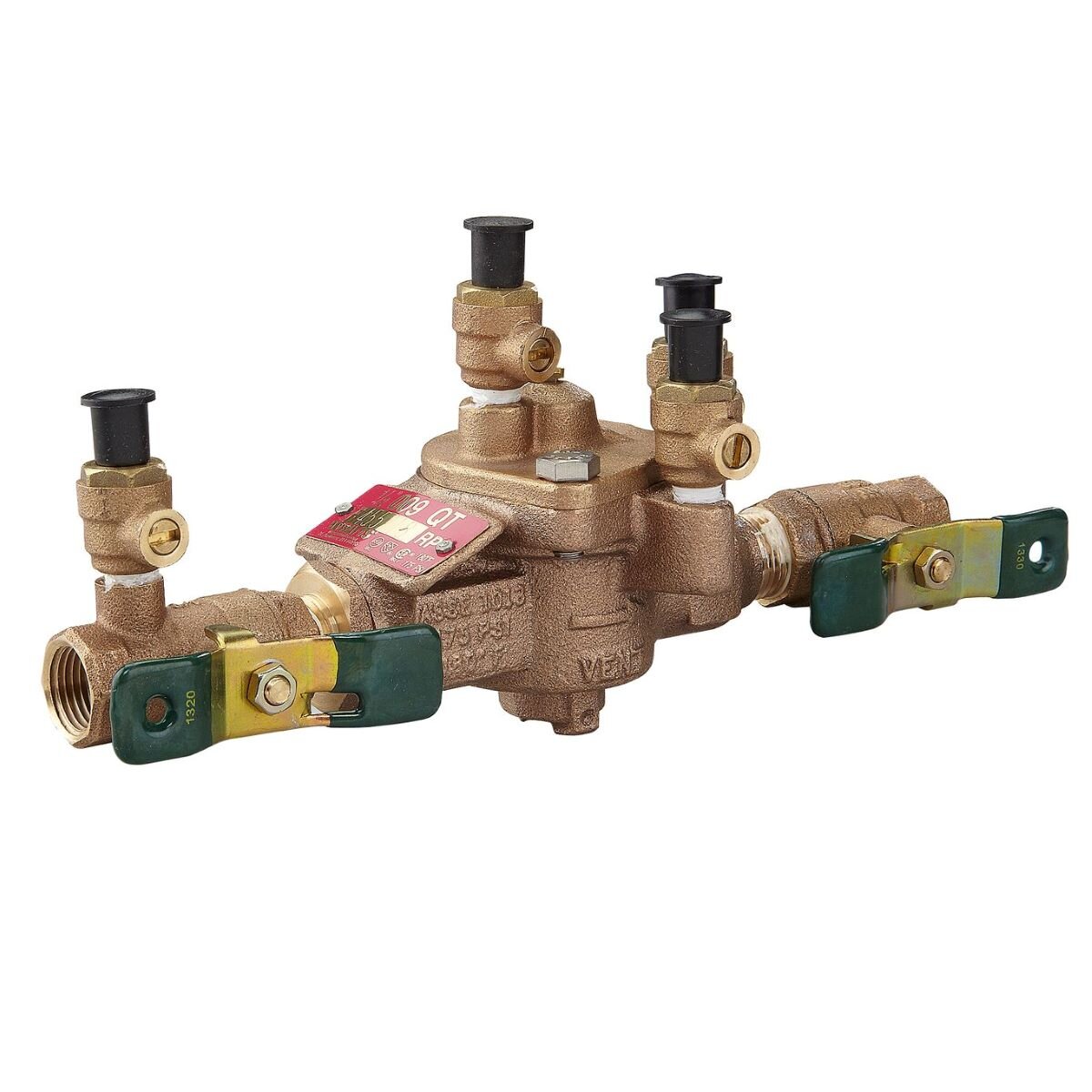

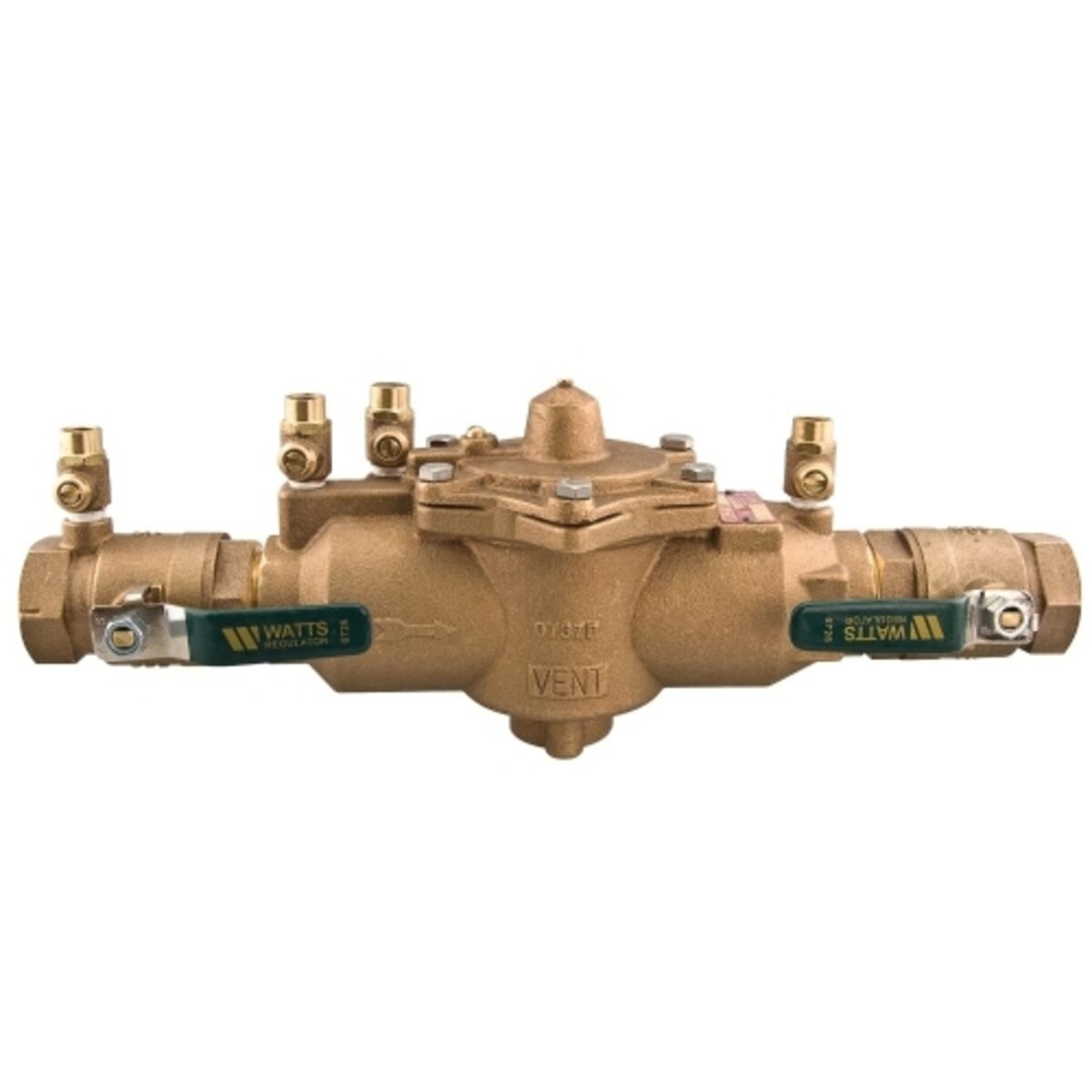

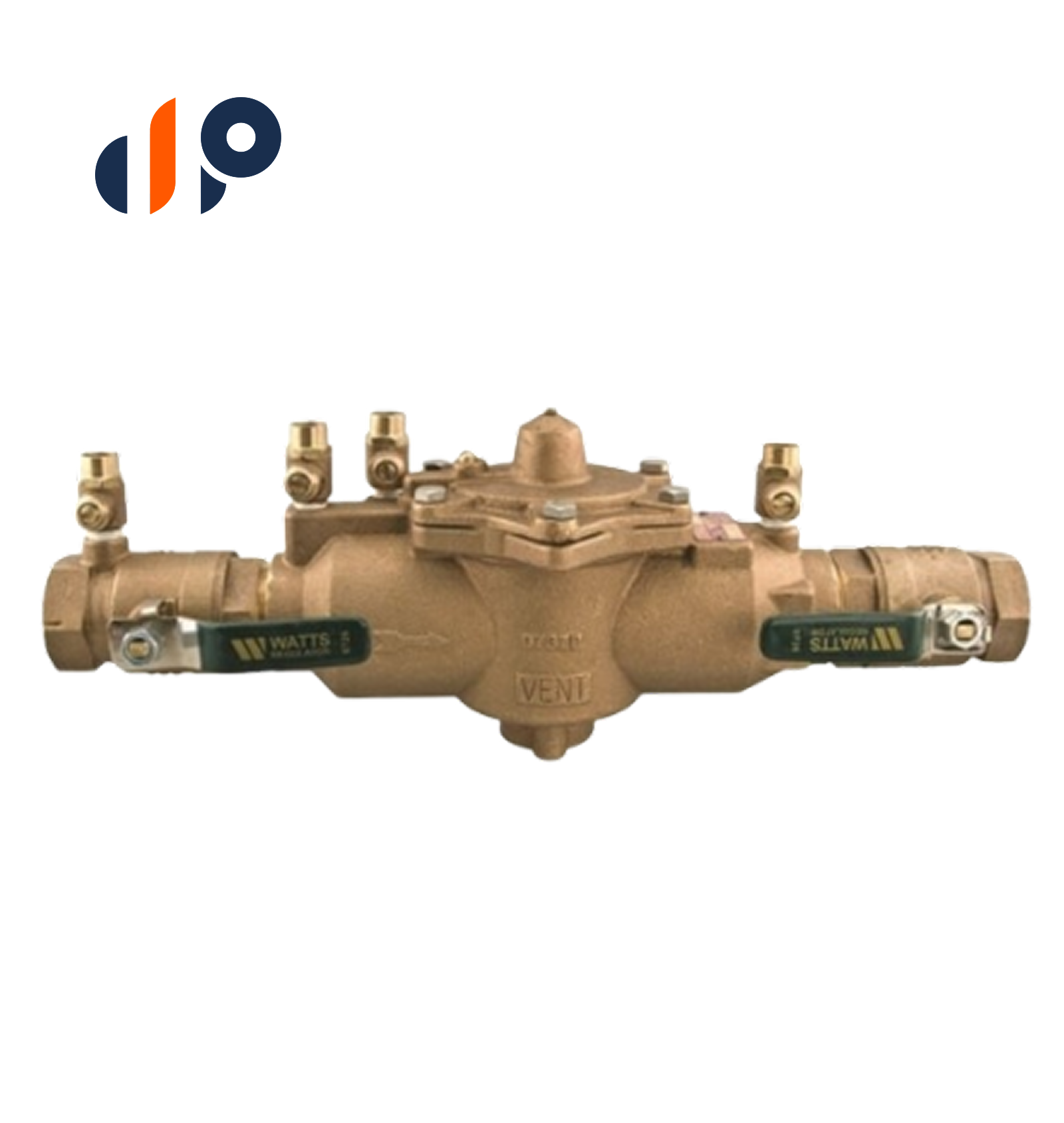

Watts 009 Reduced Pressure Zone Assembly 1 in. with Ball Valves, Tee Handles, Single Top Entry | 88004053
Watts 009 Reduced Pressure Zone Assembly 1 in. with Ball Valves, Tee Handles, Single Top Entry | 88004053
SKU:
88004053
Regular price
$932.00
Regular price
Sale price
$932.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- With quarter turn shutoff valves
- Top entry, all internals immediately accessible
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Bronze body construction for durability 1/4 to 2 inch
- Fused epoxy coated cast iron body 2-1/2 inch and 3 inch
Series 009 Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphonage and or backpressure. They have a bronze body construction (1/4 to 2 in.) or FDA approved epoxy coated cast iron (2 1/2 to 3 in.), two in-line independent check valves, replaceable check seats with an intermediate relief valve, and ball valve test cocks. Series 009 is ideal for protection of health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements. Maximum Working Pressure: 175psi (12.06 bar).
Key Features
Key Features
✅ Series: 009 Series
✅ Connection Type: Fnpt x Fnpt
✅ Pressure Rating: 175 PSI
✅ Connection Size: 1 in. x 1 in.
✅ Body Material: Bronze
✅ Item: Assembly
✅ Type: Reduced Pressure
✅ Includes: Backflow Preventer, Ball Valves, Tee Handles & Single Top Entry
✅ Regulated: No
✅ Brand Name: Watts
